Agricultural Industrial Implement Truck Wheel Rim Plate Disc Od590 mm
QINGDAO INEED TYRES & WHEELS CO., LTD.- After-sales Service：12months
- Warranty：12months
- Material：Steel
- Type：Wheel Disc
- Drive Wheel：4WD
- Wheel Hub Diameter：21-24"
Base Info
- Model NO.：wheel disc plate
- Certification：ISO, CE, TUV, DOT
- Transport Package：Pallets
- Specification：20′GP
- Trademark：INEED or Customization
- Origin：China
- HS Code：870870
- Production Capacity：10000000,Year
Description
Wheel Rim Plate/Disc Parameters Unit (mm) Part No. Thickness P.C.D. Center hole Number of Bolt Holes Bolt Hole DIA. Hole Type A01 16,14,12 335 281 10 26 1x45° A02 16,14,12 335 281 10 26 Single SR18 A03 16,14,12 335 281 10 26 Dual SR18 A04 16,14,12 335 281 10 27 Single SR18 A05 16,14,12 335 281 10 27 Dual SR18 A06 16,14,12 335 281 10 27 1x45° A07 14,12,10 225 176 10 27 1x45° A08 14,12,10 225 176 10 27 Single SR18 A09 14,12,10 225 176 10 27 Dual SR18 A10 14,12,10 225 176 10 26 1x45° A11 14,12,10 225 176 10 26 Single SR18 A12 14,12,10 225 176 10 26 Dual SR18 A13 14,12,10 225 176 10 21.5 1x45° A14 14,12,10 225 176 10 21.5 Single SR16 A15 14,12,10 225 176 10 21.5 Dual SR16 A16 16,14,12 335 281 10 23.5 1x45° A17 14,12,10 225 176.8 10 26.5 Dual SR22-32 A18 14,12,10 225 176 10 23 1x45° A58 16,14,12 335 281 10 26 Dual SR80° A67 16,14,12 335 291 10 26 SingleSR18 A68 16,14,12 335 291 10 27 SingleSR18 A82 16,14,12 335 281 10 24 1x45° B16 16,14,12 285.75 221 10 32.5 Dual SR22 B77 16,14,12 285.75 220 10 27 Dual SR22-37.5 B84 16,14,12 285.75 221.5 10 30 Dual SR22 C17 16,14,12 285.75 220 10 26 1x45° C18 16,14,12 285.75 220 10 24 1x45° C60 16,14,12 285.75 220 10 26 Dual SR18 C61 16,14,12 285.75 220 10 27 Single SR18 C79 16,14,12 285.75 224 10 20.6 1x45° C80 16,14,12 285.75 220 10 27 Dual SR22 C91 16,14,12 285.75 220 10 20.6 1x45° C92 16,14,12 285.75 221.2 10 20.6 1x45° D18 16,14,12 275 221 8 21.5 1x45° D19 16,14,12 275 221 8 21.5 Single SR16 D20 16,14,12 275 221 8 21.5 Dual SR16 D21 16,14,12 275 221 8 24.5 1x45° D22 16,14,12 275 221 8 24.5 Single SR18 D23 16,14,12 275 221 8 24.5 Dual SR18 D24 16,14,12 275 221 8 25.4 1x45° D25 16,14,12 275 221 8 25.4 Single SR18 D26 16,14,12 275 221 8 25.4 Dual SR18 D27 16,14,12 275 221 8 25.4 SR80° D28 16,14,12 275 221 8 26 1x45° D29 16,14,12 275 221 8 26 Single SR18 D30 16,14,12 275 221 8 26 Dual SR18 D31 16,14,12 275 221 8 27 1x45° D32 16,14,12 275 221 8 27 Single SR18 D33 16,14,12 275 221 8 27 Dual SR18 D34 16,14,12 275 214 8 26 1x45° D83 16,14,12 275 221 8 24 Dual SR16-27 D84 16,14,12 275 221 8 24 Single SR16-29 D85 16,14,12 275 221.6 8 20 1x45° D87 16,14,12 275 221 8 32 Dual SR22-37 D88 16,14,12 275 221 8 32.5 Dual SR22-37.5 E35 14,12 275 214 8 32.5 Dual SR22 F36 16,14,12 285 221 8 32.5 Dual SR22 F37 16,14,12 285 223 8 32 Dua lSR22 G36 14,12,10 222.25 164 6 32.5 Single SR22 G37 14,12,10 222.25 164 6 32.5 Dual SR22 G38 14,12,10 222.25 164 6 26 1x45° G39 14,12,10 222.25 161 6 24 1x45° G62 14,12,10 222.25 164 8 32.5 Dual SR22 G63 14,12,10 222.25 164 8 29 Dual SR22 G65 14,12,10 222.25 163 6 32.5 Dual SR22 G66 14,12,10 222.25 165.1 6 32.5 Dual SR22 G89 14,12,10 222.25 164 6 24 1x45° G90 14,12,10 222.25 164 8 24 1x45° H39 12,10 190 140 6 20.5 Single SR18 H40 12,10 190 140 6 21.5 1x45° H41 12,10 190 140 6 21.5 Dual SR22 H42 12,10 205 161 6 26 1x45° H43 12,10 205 161 6 21.5 1x45° H44 12,10 205 161 6 21.5 Single SR16 H45 12,10 205 161 6 21.5 Dual SR16 H46 12,10 245 202 6 21.5 Single SR16 H47 12,10 245 202 6 21.5 Dual SR16 H48 12,10 245 202 6 21.5 1x45° H49 12,10 205 161 6 16 1x45° H50 12,10 205 161 6 22 28.5 H51 12,10 205 153 8 17.5 Single3X45° H52 12,10 245 202 6 19 1x45° H53 12,10 205 151 5 32 Dual SR90°-37.5 H56 12,10 205 161 6 25.4 Single SR18 H59 12,10 205 161 6 18 1x45° H60 12,10 205 161 6 18.5 SR14-24 H61 12,10 161 102 6 15 1x45° H70 12,10 205 161 6 24 Single SR18 H71 12,10 205 161 6 27 Single SR18 H72 12,10 222 165 6 21 1x45° H73 12,10 205 161 8 21.5 1x45° H87 12,10 205 161 6 26 Single SR18 H96 12,10 205 161 6 21.5 Dual SR18-29 J49 12,10 203.2 146 5 32.5 Dual SR22 J50 12,10 203.2 146 5 29 Dual SR22 J60 12,10 203.2 152.4 8 18 Single SR14 J61 12,10 203.2 145 6 20 1x45° K01 12,10 203.2 152 8 17.5 1x45° K02 12,10 203.2 150 5 29 Dual SR22 K03 12,10 203 150 5 32.5 Dual SR22 K04 12,10 203 150 5 21.5 Single SR16 K05 12,10 203.2 154.2 8 16 Dual SR22 K06 12,10 203.2 152.4 8 16.7 1x45° K07 12,10 152.4 117.7 6 16 1x45° K50 12,10 208 150 5 27 Single SR18 K51 12,10 203.2 146 8 17 SR14 K52 12,10 208 150 5 32.5 Dual SR22 K53 12,10,8 170 130 6 21.5 1x45° K54 12,10,8 170 130 6 21.5 Single SR14 K55 12,10,8 170 130 6 21.5 Dual SR14 K56 12,10 208 150 5 23 1x45° K57 12,10 203.2 152.4 8 16.6 SR90°-22 K58 12,10 203.2 152.4 8 18.5 Single SR90°-24 K62 12,10 203.2 152.4 8 16.5 Single SR90°-21 K63 12,10 203.2 152.4 8 16.5 Dual SR90°-21.4 K64 12,10 203.2 152.4 8 16.5 Dual SR90° K65 12,10 203.2 152.4 6 14.7 Single SR90° K66 12,10 203.2 152.4 8 17.2 Single SR90°-23.8 K69 12,10,8 170 133 6 17.5 1x45° K74 12,10 203.2 152.4 8 16.4 Dual SR90°-22 K75 12,10 203.2 152.4 8 16.4 Dual SR90°-23 K76 12,10 203.2 152.4 8 16.4 SingleSR90°-23 K78 12,10 203.2 152.4 8 17.5 Single SR90°-23 K80 12,10 203.2 152.5 8 16.7 1x45° K81 12,10 203.2 152.4 8 16.7 Single SR90°-22 K86 12,10 203.2 152.4 8 22 1x45° K93 12,10 203.2 152.4 8 16.6 Single SR90°-20.5 K94 12,10 203.2 152.4 8 16 Single SR60°-21 K95 12,10 170 133 6 17.5 1x45° K97 12,10,8 152.4 117.7 6 14.7 Single SR90°-18.5 K98 12,10,8 152.4 117.7 6 16 Single SR90°-20 K99 12,10 203.2 146 5 34 Single SR22-37

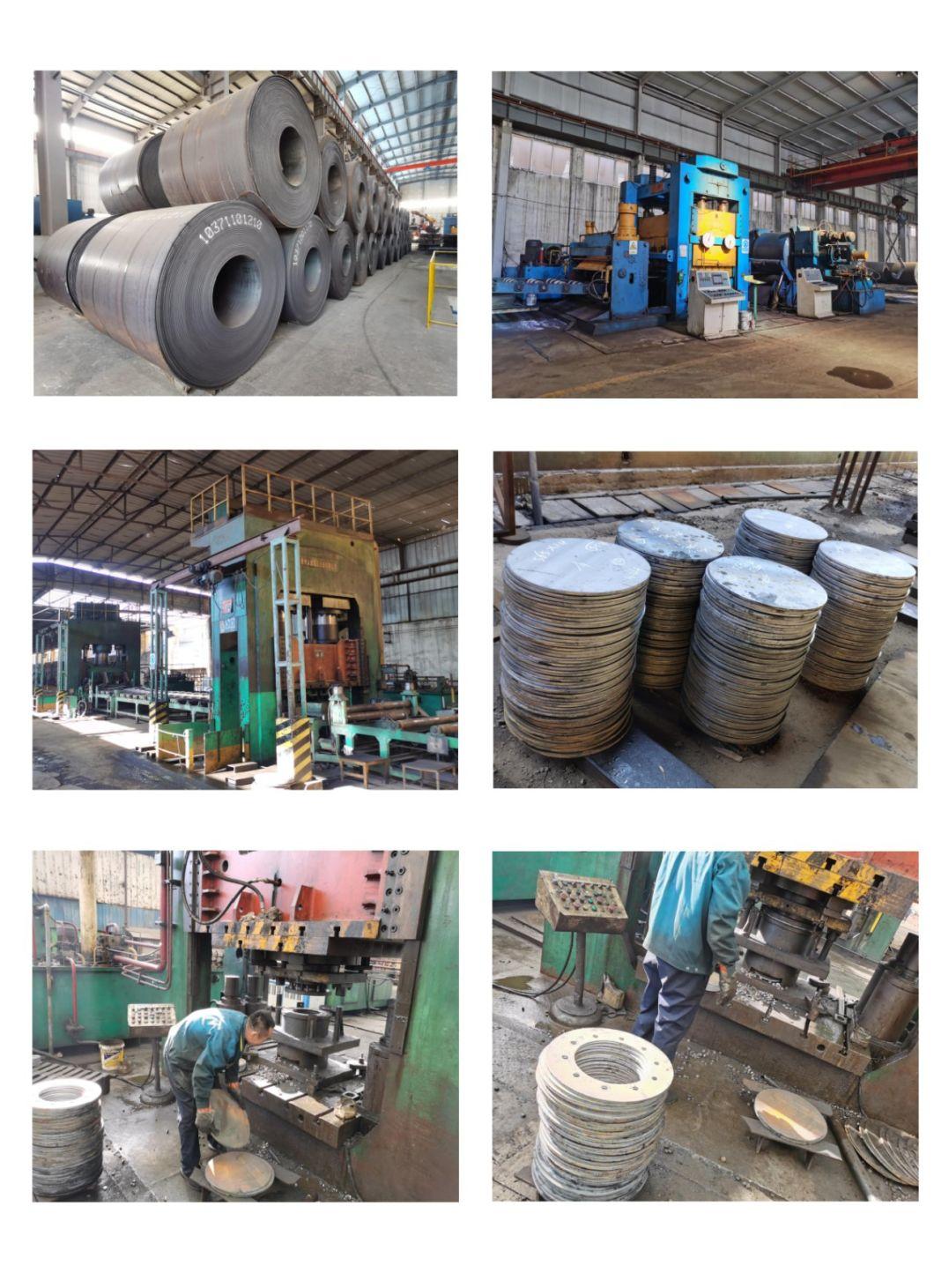

Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process:

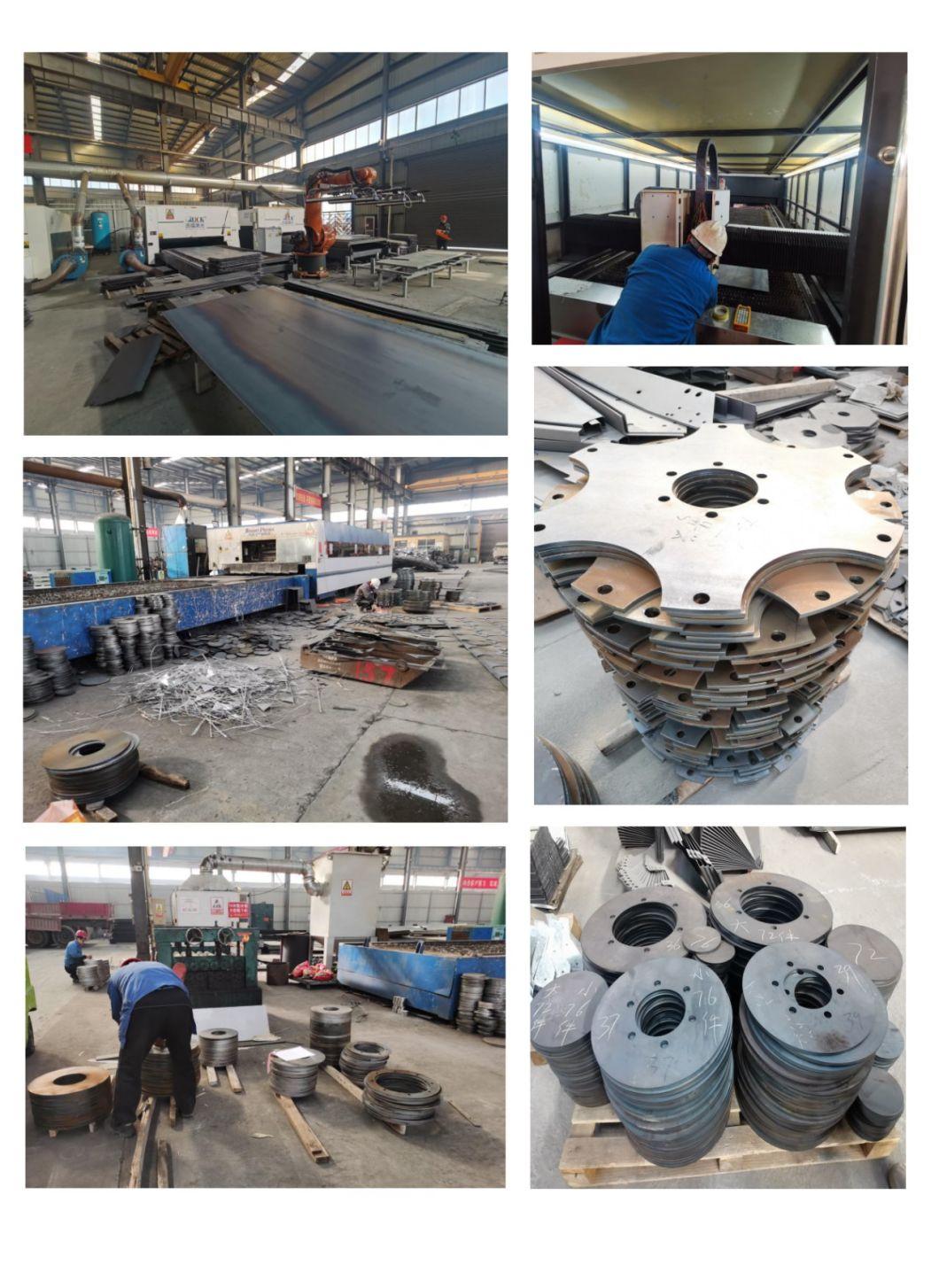

Wheel Disc / Plate manufacturing process: New Laser Cutting Machines

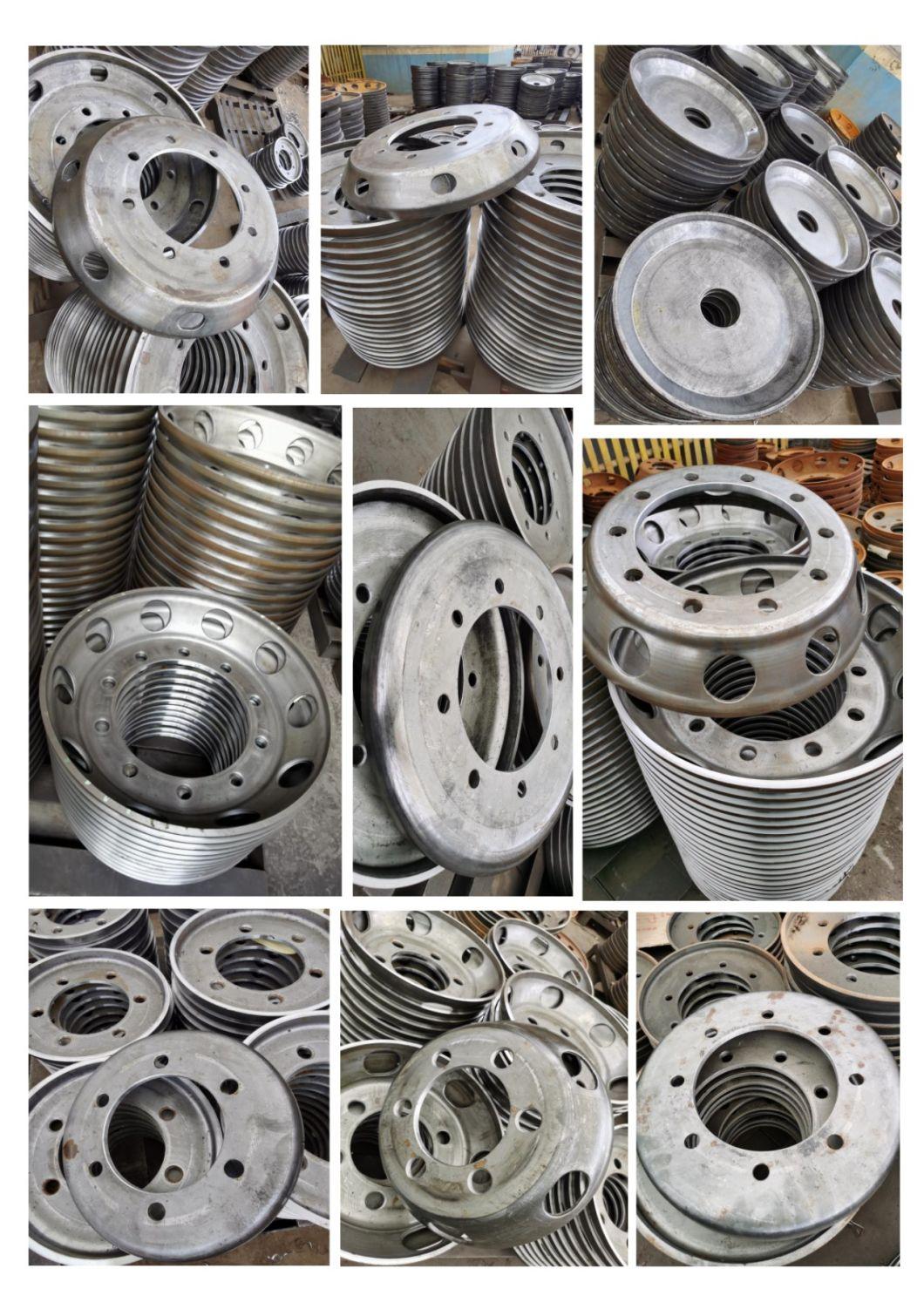

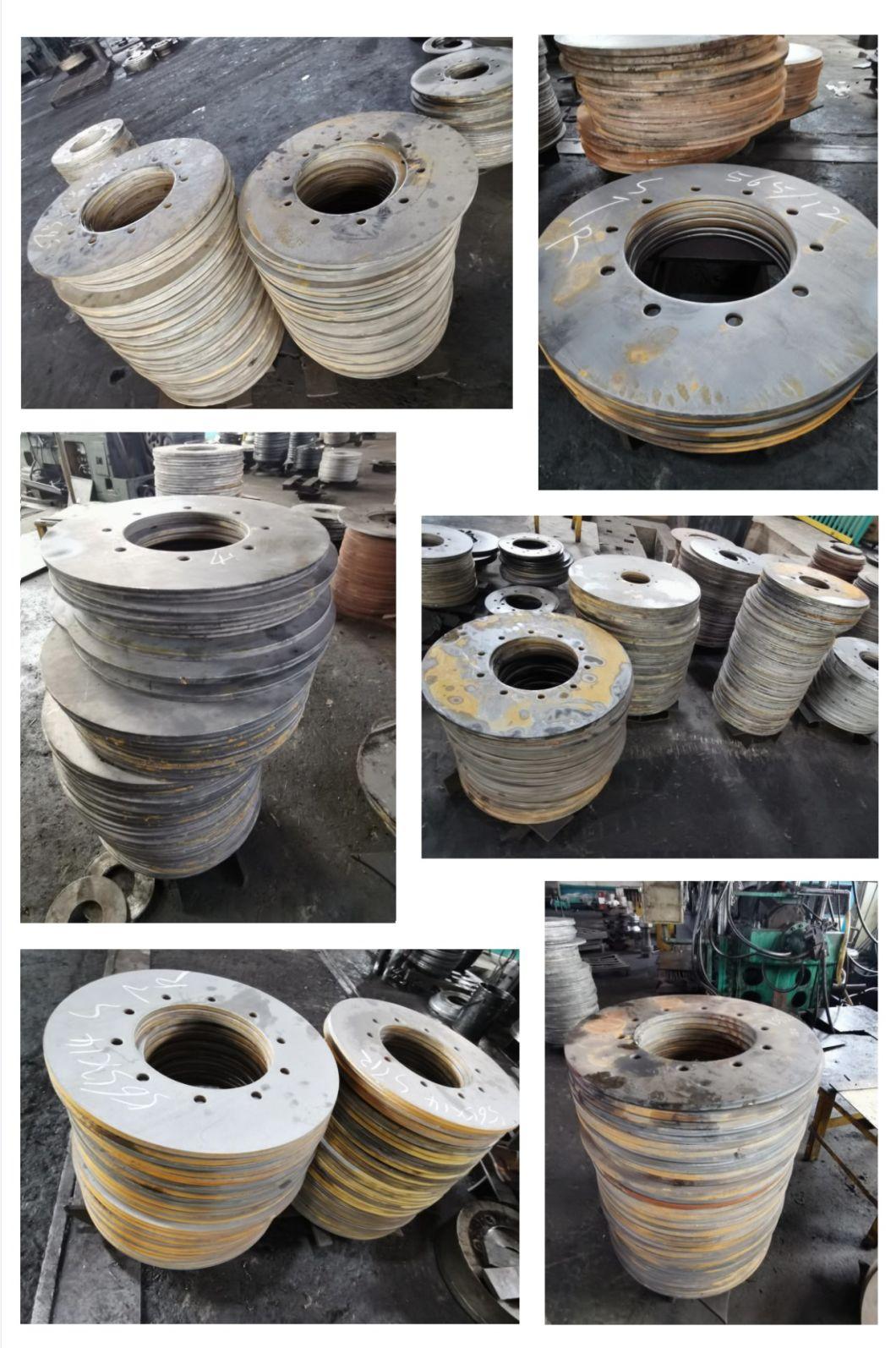

Wheel Disc / Plate : All Kinds of Products:

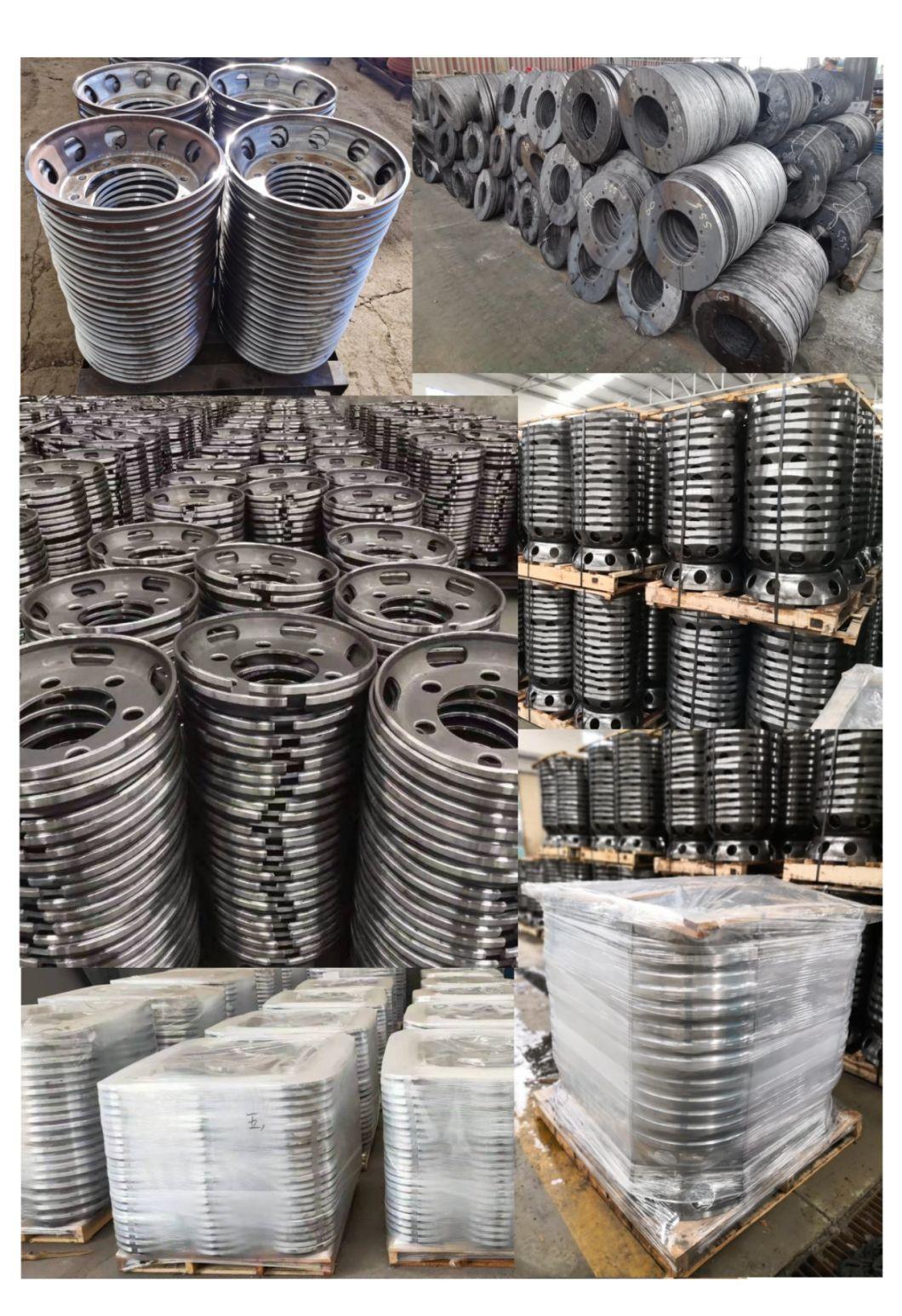

Wheel Disc / Plate : Products Packing and Loading

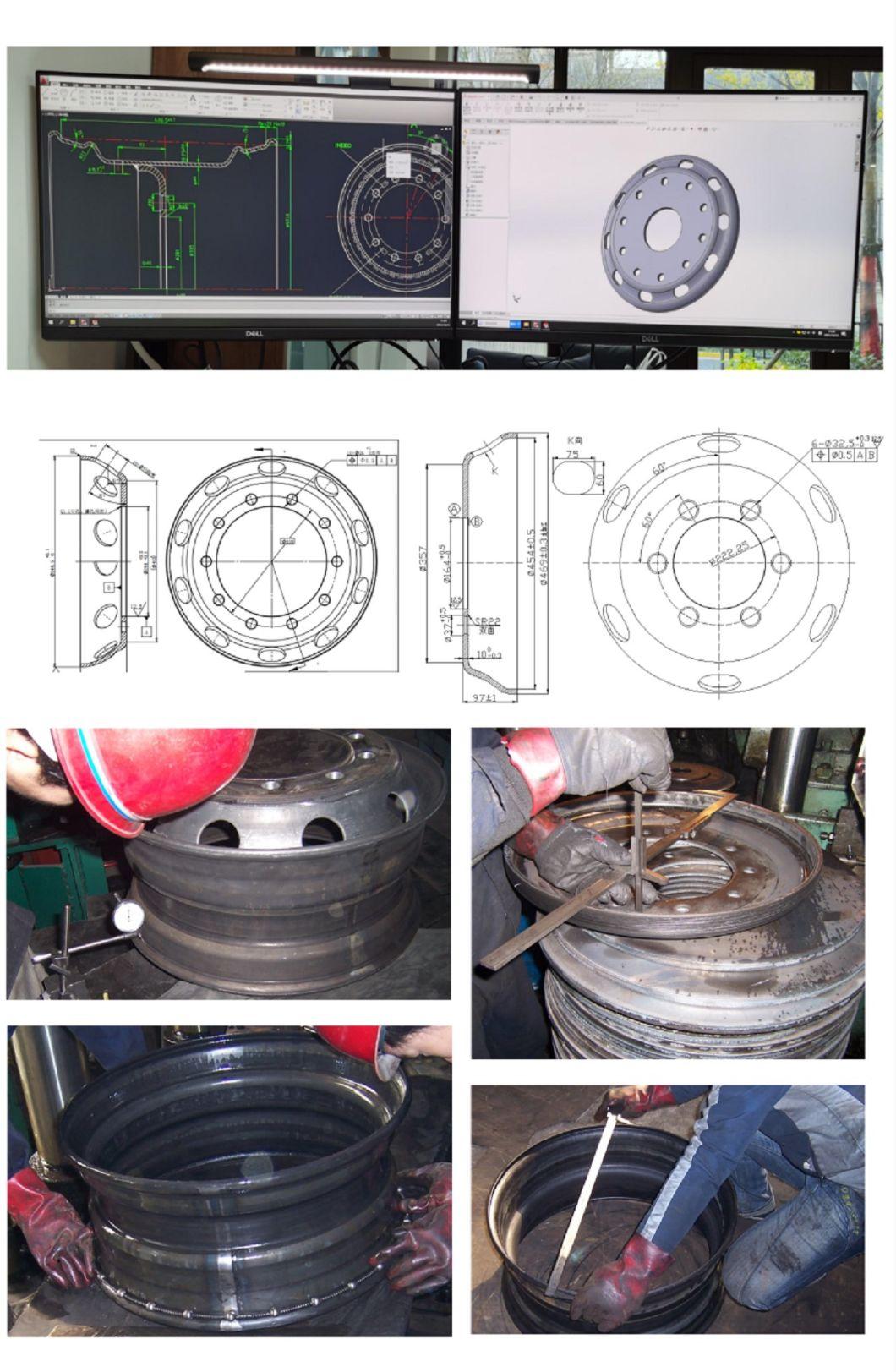

Wheel Disc / Plate : Reserch and Developing and Qaulity Control

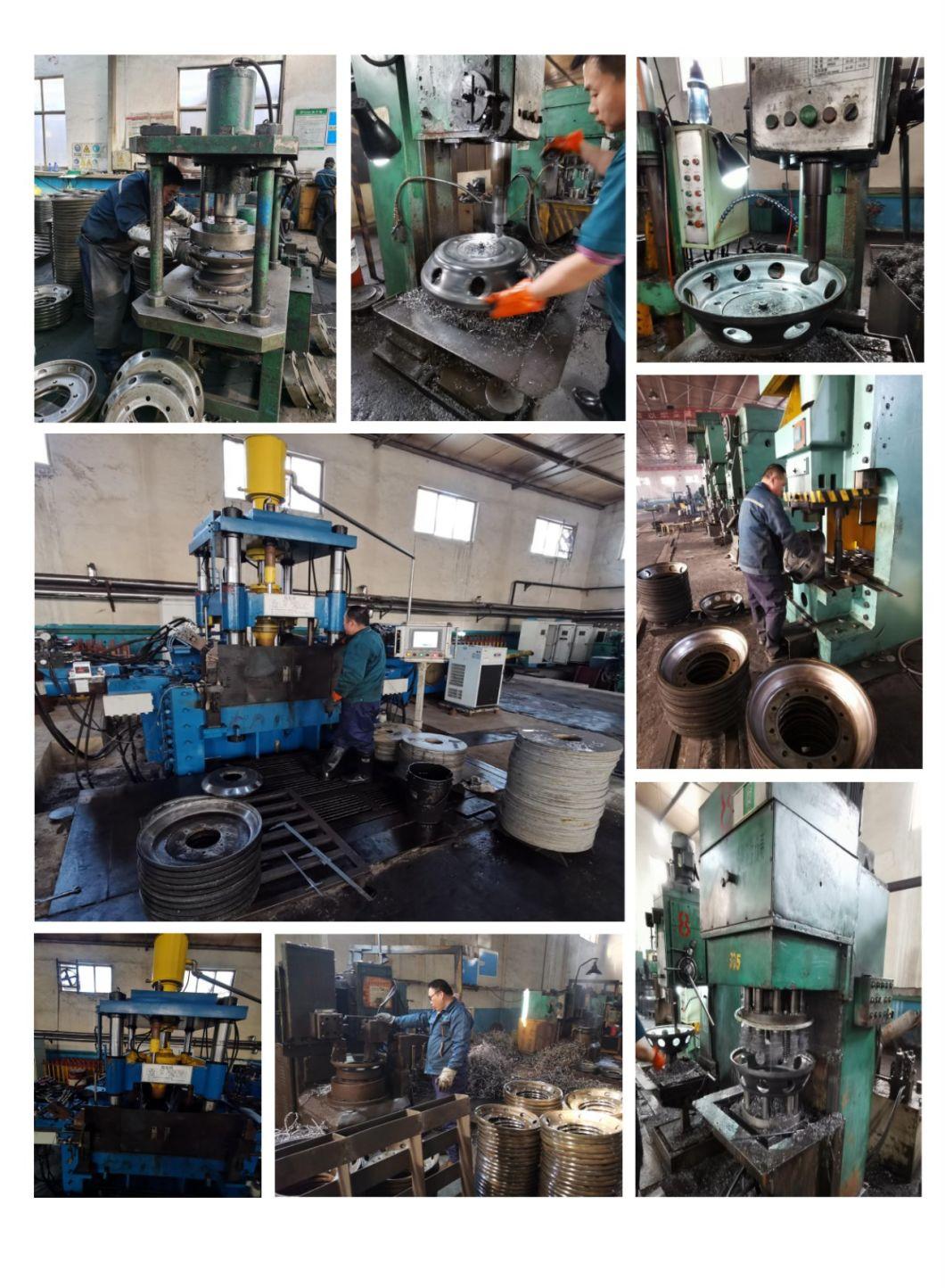

Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process: New Laser Cutting Machines
Wheel Disc / Plate : All Kinds of Products:
Wheel Disc / Plate : Products Packing and Loading
Wheel Disc / Plate : Reserch and Developing and Qaulity Control
