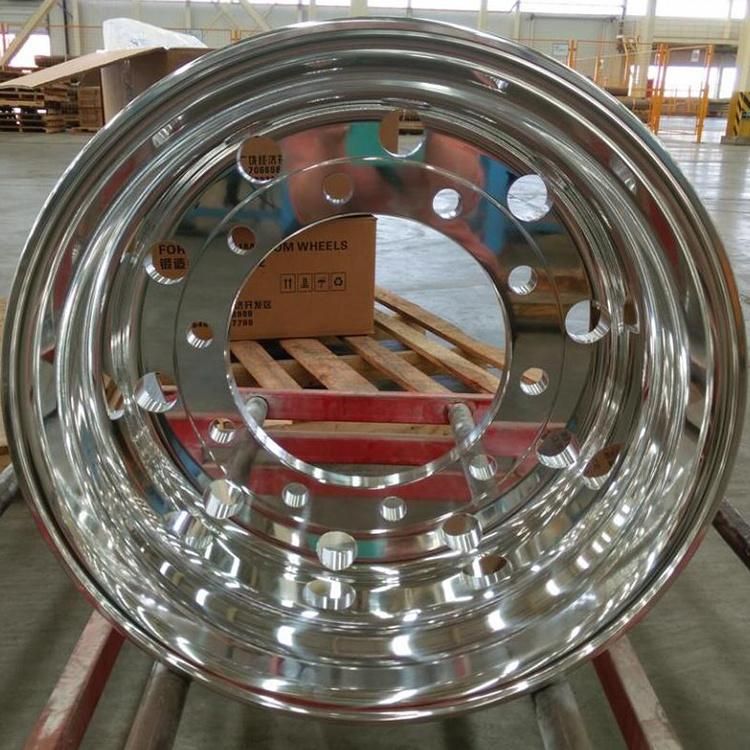

• Model NO.：24.5*8.25
• Finishing：Chrome
• Wheel Accessories：Hub Ring
• Spoke Type：Equal Diameter Spoke

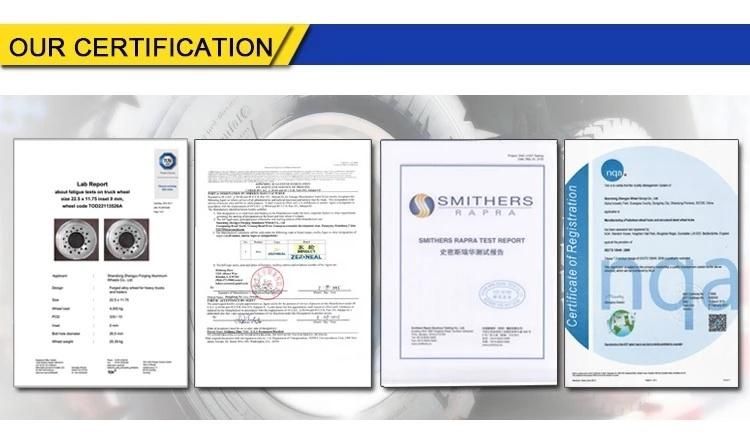

• Certification：ISO, VIA, CE, TUV, DOT
• Wheel Hub Brand：Joyoway
• Weight：32.5kg
• PCD Holes：10
• Stud Hole Dia. (mm)：26.5,32.5 Sr22
• P.C.D (mm)：285.75
• C.B(mm)：220
• Outside Offset (mm)：168
• Inside Offset (mm)：144
• Maxload (Kg)：3650
• Valve：Tr544D
• Tire：285,80r24.5

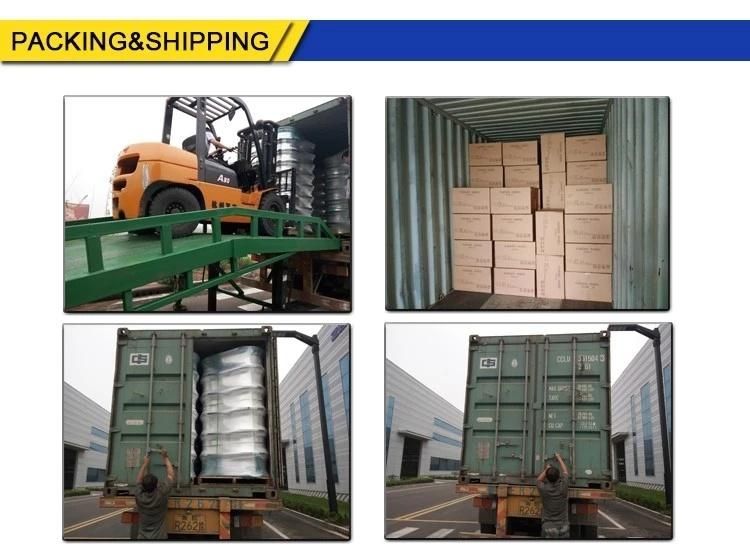

• Transport Package：Carton,Pallet
• Specification：65CM*65CM*22CM
• Trademark：JOYOWAY
• Origin：Shandong China
• HS Code：87087050
• Production Capacity：500000pieces,Year

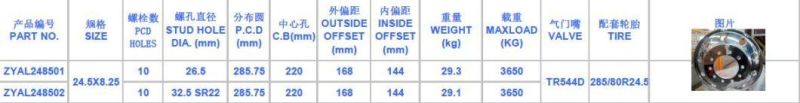

Basic Info.

Model NO. 24.5*8.25 Finishing Chrome Wheel Accessories Hub Ring Spoke Type Equal Diameter Spoke Certification ISO, VIA, CE, TUV, DOT Wheel Hub Brand Joyoway Weight 32.5kg PCD Holes 10 Stud Hole Dia. (mm) 26.5/32.5 Sr22 P.C.D (mm) 285.75 C.B(mm) 220 Outside Offset (mm) 168 Inside Offset (mm) 144 Maxload (Kg) 3650 Valve Tr544D Tire 285/80r24.5 Transport Package Carton/Pallet Specification 65CM*65CM*22CM Trademark JOYOWAY Origin Shandong China HS Code 87087050 Production Capacity 500000pieces/Year

Product Description

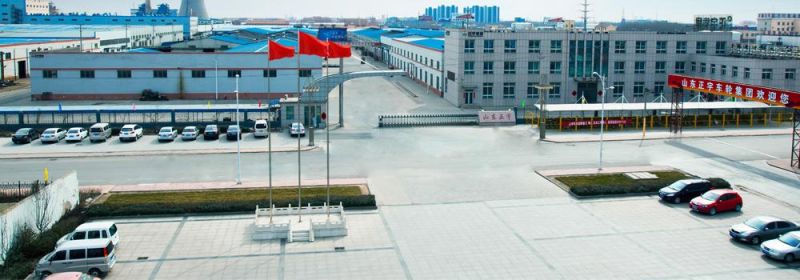

Dongying JoYo Auto Parts Co., Ltd is a sales company of Shandong Yujie wheel group Co., Ltd. which was founded in 2004, it is a company specializing in the manufacturing and sales of light and heavy truck wheels. It is located in Guangrao Xishui Industrial Park, the first tire village in China, it is two and a half hours away from Qingdao port.

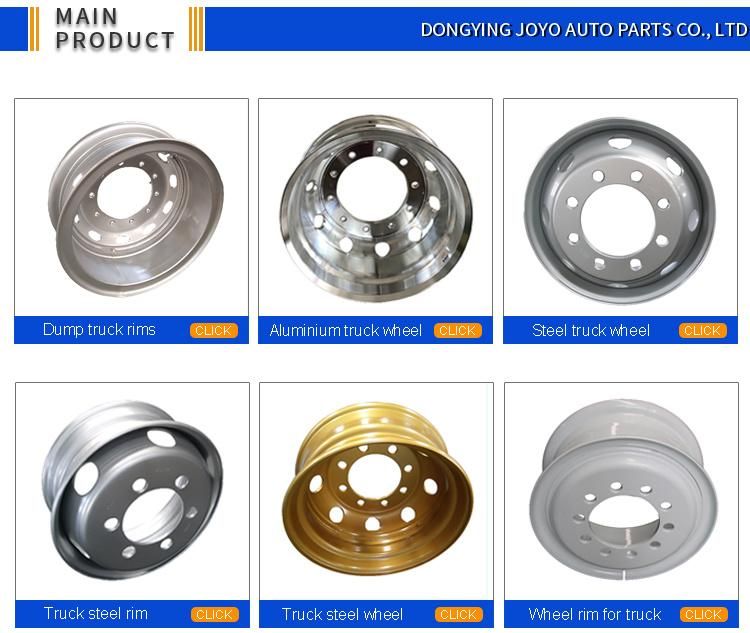

Now the company has 2 production lines of tube steel wheels, which can produce 16 inch 20 inch 24 inch wheels, 4 production lines tubeless steel wheels, 2 production lines of forged aluminum alloy wheels, which can produce 16 inch wheels, 17.5 inch wheels, 19.5 inch wheels, 22.5 inch wheels, 24.5 inch wheels with various specifications and thickness requirements.

We have been specializing in the production of wheels for 16 years. We have our own design and development team and product testing laboratory. We are one of the earliest and most complete wheel manufacturers in China.

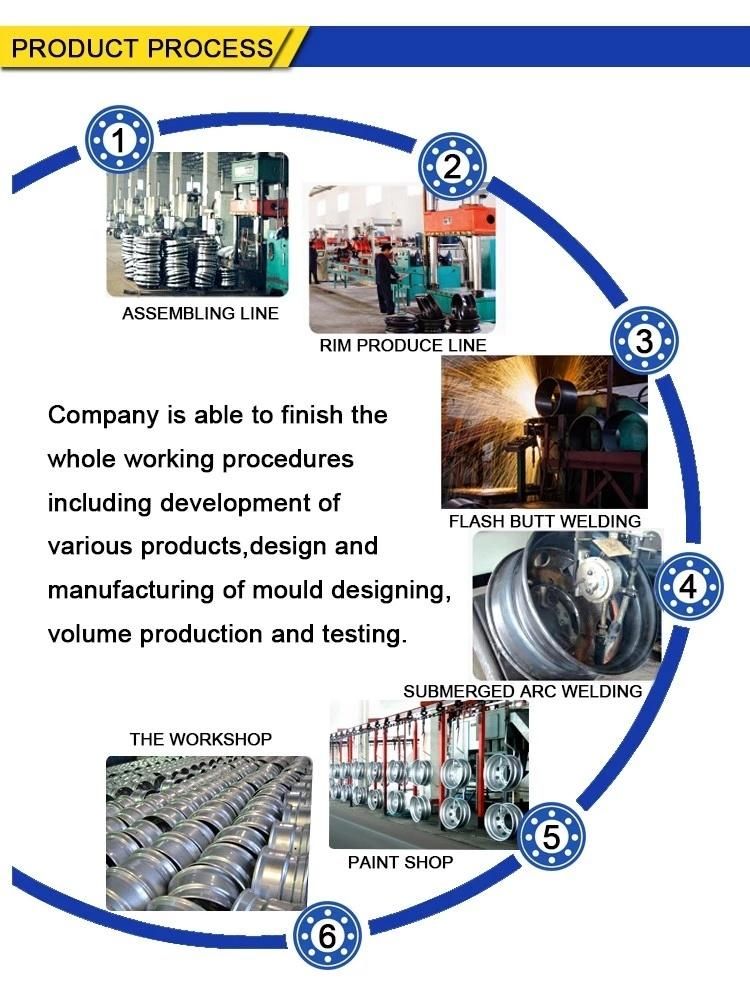

The steel wheels are pulse welded so that no marks can be seen on the rim. Large cathode electrophoresis pickling phosphating coating production line, electrostatic spraying equipment, this makes our wheels appearance more beautiful, paint adhesion for longer, more corrosion resistance, more acid and alkali resistance.
Aluminum alloy wheel production line forging press is 12000 tons, spinning machine is the world's most advanced equipment which is produced by Switzerland LEIFIELD company. German MOSSNER bandsaw sawing machine makes the cutting of aluminum section more accurate. Integrated production line from Taiwan CHEVLIER, makes one aluminum wheel exactly in 4 minutes. And the use of ABB Robot makes the whole workshop only need 50 workers with 2000 pieces daily capacity .
