Soft Closing Demper High Torque Seat Rotary High Quality Stainless Steel Adjustable Rotary Buffer Soft Close Rotary Damper
Guangzhou Manjia Youchuang Household Products Co., Ltd- Part：Dampers
- Position：Rear
- Type：Hydraulic
- Spring Type：Coil Spring
- Spring Material：Steel
- Structure：Double Cylinder
Base Info
- Model NO.：MJYC-48D8
- Damping Force Direction：Bidirectional
- Application：Other Furniture Hardware
- Shell Material：Cold Steel (Galvanized with Anti-Rust Treatment)
- Connection Hole Size：Hole
- Torque：0.5nm~5.0nm
- Working Temperature：-20celsius~80celsius
- Mail Packing：Y
- Design Style：Contemporary
- Name：Rotary Damper
- Damping Oil：Silicone Oil
- Direction of Resistance：Two-Way
- Maximum Number of Revolutions：60 Rpm
- Life Cycle：60,000 Times
- Weight：70g
- Selling Units：Single Item
- Package Type：100 Pieces Per Box
- Transport Package：Carton
- Specification：See the detail please
- Trademark：MJYC
- Origin：China
- HS Code：8479899990
- Production Capacity：500000000PCS,Year
Description
Two-way

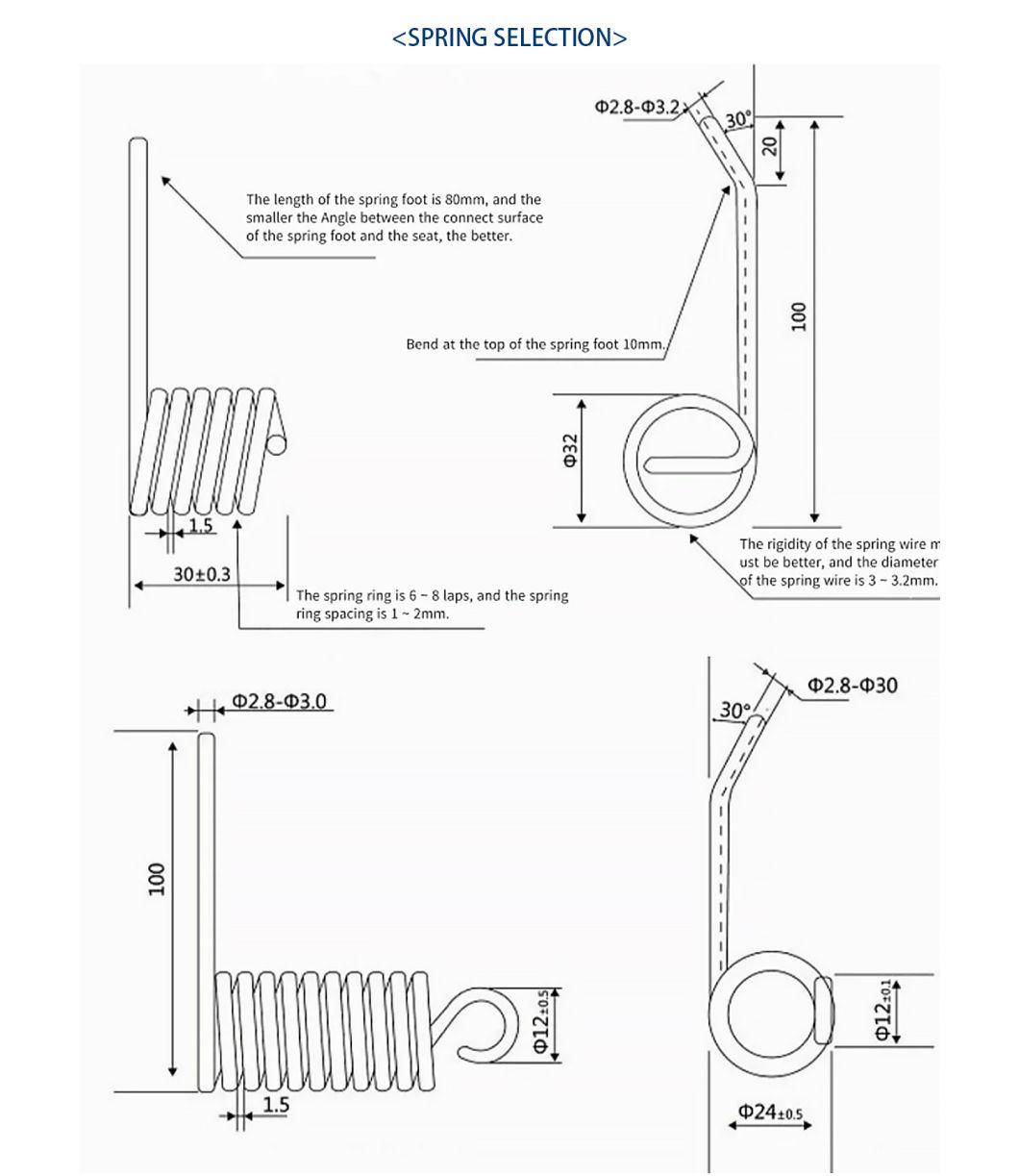

In order to obtain the ideal damping effect when the chair seat rebounds, it is particularly important to select and make various styles of springs that match it while selecting our company's dampers suitable for torque.
As shown below:
1. The thickness of the steel wire for making the spring is preferably 2.8~3.2 in diameter, and the rigidity should be 60Si2Mn the most suitable.2. The coil should not be less than 6 full turns, and the spacing between the coils should be 1.5-2mm.3. The length of the spring leg should not be less than 100mm, and the end of the spring leg should be bent at a length of 20mm by 30°, and the spring leg should be fastened to its support in a horizontal state during assembly.4. Since the strength of the torsion spring is proportional to the torsion angle during assembly, it is extremely important to choose different torsion angles that are suitable for the damper torque value according to the different structure and weight of the seat. The general spring torque angle is 90°~120°, adjusting the angle can change the elasticity and the seat turning speed, that is, 1/4 to 1/3 of a circle.
1.About size
You can customize various dampers with different dimensions and different forces according to your product structure, different functions, and different ranges of use.
2.About color
The surface treatment is galvanized and sprayed, and the color can be customized according to customer requirements.
3.About quality
Our factory has fully automatic numerical control torque testing equipment, three inspection procedures for each damper.
4.About delivery
The production cycle is 3000 pcs/two days, and the delivery is guaranteed on time.
Guangzhou Manjia Youchuang Household Products Co., Ltd. is a professional dampers and lifting cabinet manufacturer which collects research,design,production and sale.Our technical backbone has been engaged in the R&D and production of dampers for more than 22 years experience.The professional and well trained production department and QC staff could assure the perfect performance of our Dampers products. For the quality assurance rate of over 99.98%, and the stability of delivery time rate more than 99.96%.
Q1. Can I have a sample for testing?A: Yes, samples are in stock, we will return sample fee back to you once you make a formal order from us. Q2. What about the lead time? A: There is a large amount of stock in the warehouse, welcome to order. Q3. What is your MOQ? A: We support small batch trial goods, welcome to order. Q4. How do you ship the goods and how long does it take to arrive?
A: We have a dedicated freight forwarding company for transportation, and the freight is economical. Q5. Can I print my logo on the product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customized design is available. OEM and ODM are offered. Q6. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products. Q7: How to deal with the faulty? A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.During the guarantee period, we will send new dampers with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution.
In order to obtain the ideal damping effect when the chair seat rebounds, it is particularly important to select and make various styles of springs that match it while selecting our company's dampers suitable for torque.
As shown below:
1. The thickness of the steel wire for making the spring is preferably 2.8~3.2 in diameter, and the rigidity should be 60Si2Mn the most suitable.2. The coil should not be less than 6 full turns, and the spacing between the coils should be 1.5-2mm.3. The length of the spring leg should not be less than 100mm, and the end of the spring leg should be bent at a length of 20mm by 30°, and the spring leg should be fastened to its support in a horizontal state during assembly.4. Since the strength of the torsion spring is proportional to the torsion angle during assembly, it is extremely important to choose different torsion angles that are suitable for the damper torque value according to the different structure and weight of the seat. The general spring torque angle is 90°~120°, adjusting the angle can change the elasticity and the seat turning speed, that is, 1/4 to 1/3 of a circle.
1.About sizeYou can customize various dampers with different dimensions and different forces according to your product structure, different functions, and different ranges of use.
2.About color
The surface treatment is galvanized and sprayed, and the color can be customized according to customer requirements.
3.About quality
Our factory has fully automatic numerical control torque testing equipment, three inspection procedures for each damper.
4.About delivery
The production cycle is 3000 pcs/two days, and the delivery is guaranteed on time.
Guangzhou Manjia Youchuang Household Products Co., Ltd. is a professional dampers and lifting cabinet manufacturer which collects research,design,production and sale.Our technical backbone has been engaged in the R&D and production of dampers for more than 22 years experience.The professional and well trained production department and QC staff could assure the perfect performance of our Dampers products. For the quality assurance rate of over 99.98%, and the stability of delivery time rate more than 99.96%.Q1. Can I have a sample for testing?A: Yes, samples are in stock, we will return sample fee back to you once you make a formal order from us. Q2. What about the lead time? A: There is a large amount of stock in the warehouse, welcome to order. Q3. What is your MOQ? A: We support small batch trial goods, welcome to order. Q4. How do you ship the goods and how long does it take to arrive?A: We have a dedicated freight forwarding company for transportation, and the freight is economical. Q5. Can I print my logo on the product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customized design is available. OEM and ODM are offered. Q6. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products. Q7: How to deal with the faulty? A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.During the guarantee period, we will send new dampers with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution.
