• Model NO.：Rim 16 inch to 54 inch
• Color：Yellow or According to The Customer′s Requirement
• Raw Material：Q355,S355jr,ASTM Grade50
• Painting Brand：Valspar
• Standard：IATF6949,ISO9001,ISO14001,GB,T28001,GB,T19580
• Supply Ability：10000 Set,Sets Per Month
• Width：8 Inch-63 Inch
• Transport Package：Packaged Steel Pellet or Plastic Pallet
• Specification：35 inch
• Trademark：Rarlong
• Origin：China
• HS Code：8708703000
• Production Capacity：10000 Sets,Months

Basic Info.

Model NO. Rim 16 inch to 54 inch Color Yellow or According to The Customer′s Requirement Raw Material Q355/S355jr/ASTM Grade50 Painting Brand Valspar Standard IATF6949/ISO9001/ISO14001/GB/T28001/GB/T19580 Supply Ability 10000 Set/Sets Per Month Width 8 Inch-63 Inch Transport Package Packaged Steel Pellet or Plastic Pallet Specification 35 inch Trademark Rarlong Origin China HS Code 8708703000 Production Capacity 10000 Sets/Months

Product Description

Anyang Rarlong Machinery Co., Ltd. is located in Anyang City, Henan Province, China, is the import and export subsidiary of Hongyuan Section Steel Group. Our group company was founded in 1996, is a producer of steel wheel rim include 8- 63 inch 3pc / 5pc tube and tubeless wheel rim for construction machiney, port machinery, earthmover, loader, mobile crane, mining vehicle etc. We also supply 8-15 inch 2pc,3pc and 4pc forklift wheels.

With more than 20 years of development, our group has four sub-factories, two factories in Anyang for producing wheel rim components; two factories in Jiaxing and Jiaozuo for producing off-road steel wheel rims. Now we have one provincial technical center with various testing equipments that can do physical and chemical checking. We are also ISO9001/TS16949, ISO14001 and ISO18000 certified company.

Product Name	16 inch to 54 inch Tubeless Agricultural Machinery Wheel Rim
Standard	GB AISI ASTM JIS DIN BS
Raw material	S355R,Q355, 45#, 50Mn
Weight	According to the drawing
MOQ	1pcs
Colour	As customers' need
Welding feature	Flash welding,  submerged-arc welding
Port of Export	Qingdao, Beijing, Tianjin, Shanghai or as customers' need



NO.	Wheel Size	Tyre Size	Structure	Tube/Tubeless
1	16×5.0F	6.50-16	1PCS	Tubeless
2	16×5.5F	7.50-16	1PCS	Tubeless
3	16.5×9.75	12-16.5	1PCS	Tubeless
4	16.5×12.00	15.5-16.5	1PCS	Tubeless
5	17.5×6.75	8.5R-17.5	1PCS	Tubeless
6	18×W9	11.2-18	1PCS	Tubeless
7	19.5×13.00	445/65R19.5	1PCS	Tubeless
8	20×5.5F	7.50-20	1PCS	Tubeless
9	20×W7	8.30-20	1PCS	Tubeless
10	20×W8	9.50-20	1PCS	Tubeless
11	22.5×AG24.00	700/40-22.5	1PCS	Tubeless
12	28×W14L	15.5-28	1PCS	Tubeless
13	30×DW20	23.1-30	1PCS	Tubeless
14	32×DW11	12.4-32	1PCS	Tubeless
15	34×W18L	20.8-34	1PCS	Tubeless
16	36×W12	13.6-36	1PCS	Tubeless
17	38×W18L	20.8-38	1PCS	Tubeless
18	40×W16	18.4-40	1PCS	Tubeless
19	42×DW18	20.8-42	1PCS	Tubeless
20	46×DW18	20.8-46	1PCS	Tubeless
21	48×W20	23.1-48	1PCS	Tubeless
22	54×W12	13.6-54	1PCS	Tubeless

1.Billet raw materials are well prepared all the year.
2.Decades of experience in profile steel hot rolling  and can be customized for different customers with different products.
3.Complete mold for 8-63 inch wheel components and rims.
4.Advanced and mature production technology, highly automated production equipment.
5.The world's advanced cathodic E-coating painting line guarantees the painting quality.
6.Sufficient stocks and professional after-sales service is our greatest security!

1. All kinds of engineering machinery.

2. All kinds of engineering machinery vehicle.

3. Rarlong's single-piece and multi-piece series' wheels for construction industries fully utilize high strength low alloy (HSLA) steel. Heat treated material is used for critical components of multi-piece wheels. Auto butt-welding is widely used on rim, ring and other circular parts; All circumferential weld seams are inspected by non-destructive inspection to ensure zero defect.
Mining Machinery Wheel Rim 35-15.00/3.0 for OTR Tyre 21.00-35

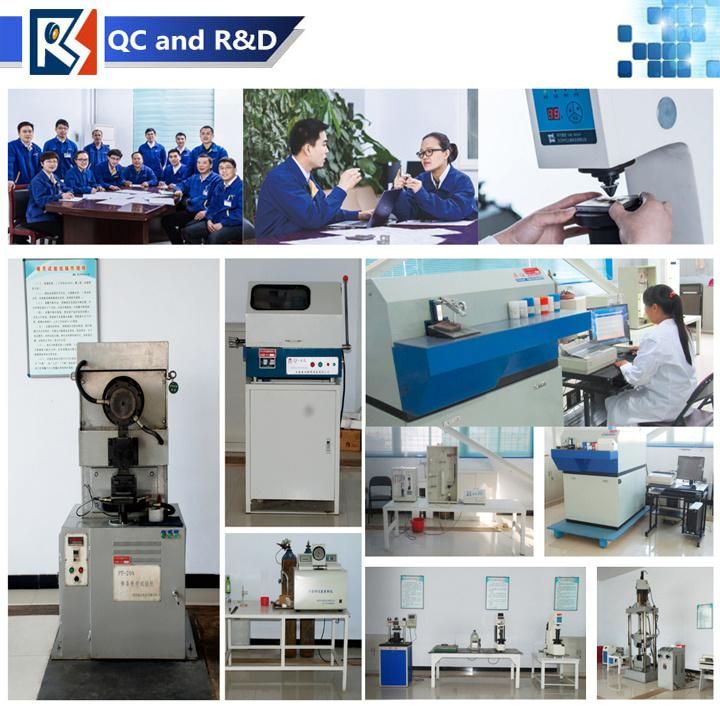

Anyang Rarlong now has one provincial technical center with various testing and inspection equipments,more than 100 technical personnel and equipped with automated 5 precision hot rolling mills, Rarlong is specializing in steel rolling over 40 years,products are currently widely adopted in domestic China market and exporting to Europe, USA, middle east,Southeast Asia etc.


Anyang Rarlong now has one provincial technical center with various testing and inspection equipments,more than 100 technical personnel and equipped with automated 5 precision hot rolling mills, Rarlong is specializing in wheel rim manufacturing over 23 years,products are currently widely adopted in domestic China market and exporting to Europe, USA, middle east,Southeast Asia etc.

Q: Are you trading company or manufacturer?

A: We are the biggest factory with more than twenty production lines and various machines for making 8-63inch all kinds of steel wheel rims and wheel components.  Mining Machinery Wheel Rim 35-15.00/3.0 for OTR Tyre 21.00-35

Q: How long is your delivery time?

A: Generally it is 5-15 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity


Q: How can we trust your company?

A: We are an enterprise with a history of over 20 years, from the former state-owned enterprise to the present Hongyuan group. We adhere to the integrity of management and seek common development, won a good reputation and word of mouth among our customers.
