• Model NO.：W01-358-7994
• Structure：Triple Convoluted
• Brand：Guomat or Neutral
• Damping Force Direction：Bidirectional
• Pressure Ability：2-8 M PA
• Air Inlet：1,4nptf
• Max Diameter：330mm
• Plate Diameter：231mm
• Transport Package：Cartons
• Trademark：GUOMAT
• Origin：Guangzhou
• HS Code：8708809000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. W01-358-7994 Structure Triple Convoluted Brand Guomat or Neutral Damping Force Direction Bidirectional Pressure Ability 2-8 M PA Air Inlet 1/4nptf Max Diameter 330mm Plate Diameter 231mm Transport Package Cartons Trademark GUOMAT Origin Guangzhou HS Code 8708809000 Production Capacity 5000PCS/Month

Product Description



Goodyear 3B12-328 Air Suspension Bellows 1/4NPTF Air Spring OEM W01-358-7994

Quack Detail

Item	Air Spring	Model	W01-358-7994
Condition	Brand new	Warranty	1 Year
Trade Term	FOB,CNF,EXW	Packing	Carton
Delivery	2-8working days	Material	Rubber+Steel
Payment	TT,LC,Western Union	MOQ	1 PC


Technical parameters

Nut / Blind Nut
α.Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC
β.Screw Center Distance of Top Cover Plate : 89 mm
γ.Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
δ.Screw Center Distance of Bottom Cover Plate : 140 mm
η.Screw Center Distance of Bottom Cover Plate : 157.5 mm

Gas Hole / Air inlet / Air Fitting
α.Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

Cover Plate
α.Top Cover Plate Diameter: 231 mm
β.Bottom Cover Plate Diameter: 231 mm

Rubber Bellows
α.Rubber Bellows MAX Diameter: 330 mm
β.Rubber Bellows Natural Diameter :300 mm
γ.The Working Stroke : MAX 460 mm to MIN 130 mm
δ.Maximum Height : 460 mm
η.Minimum Height :130 mmx
θ.Compression Height : 330 mm

Bumper block / Buffer block
α.With Bumper Block Or Without Bumper Block

Girdle Hoop / Girdle Ring
α.With Girdle Hoop :Two Pieces of Girdle Hoop

Cross Information
Fire stone  W01-358-7994
Contitech   FT 330-29 546 /  64572
Goodyear  3B12-328
Triangle    4546/6364

Watson&chalin   AS-0019-F
Euolid/meritor After market   E-FS7994

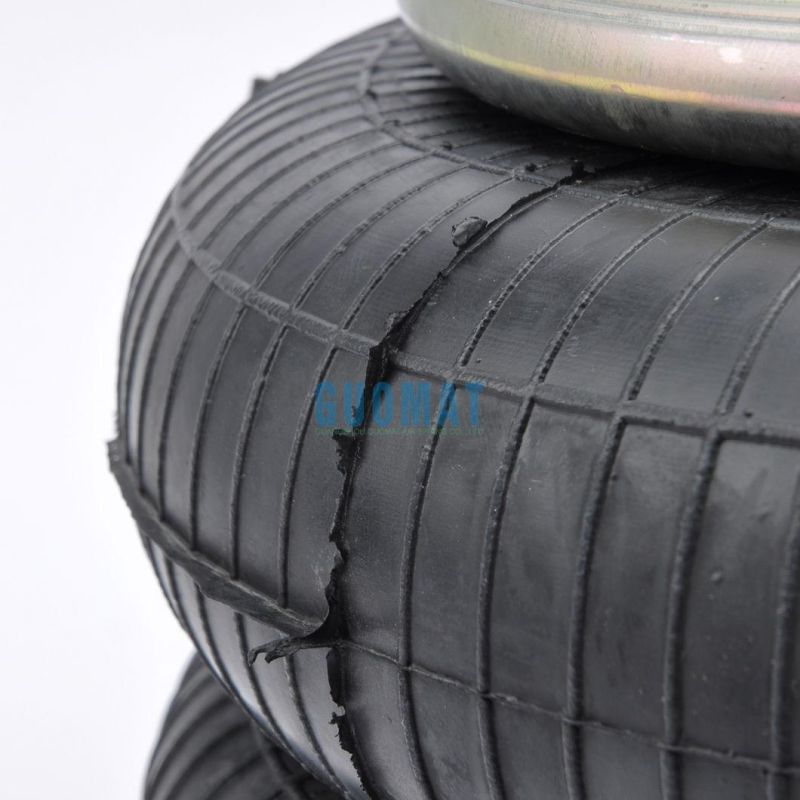

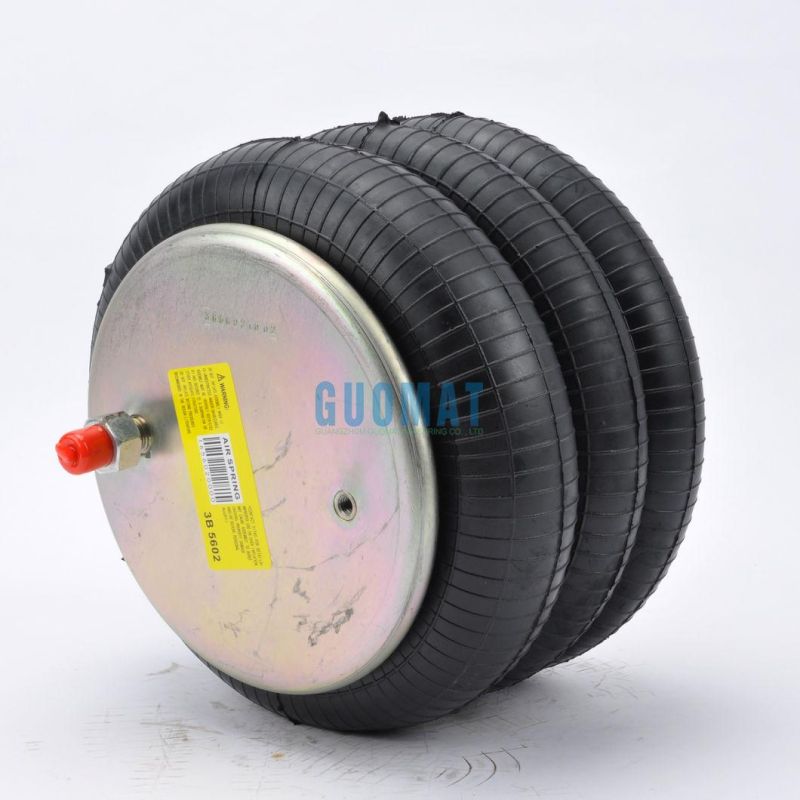

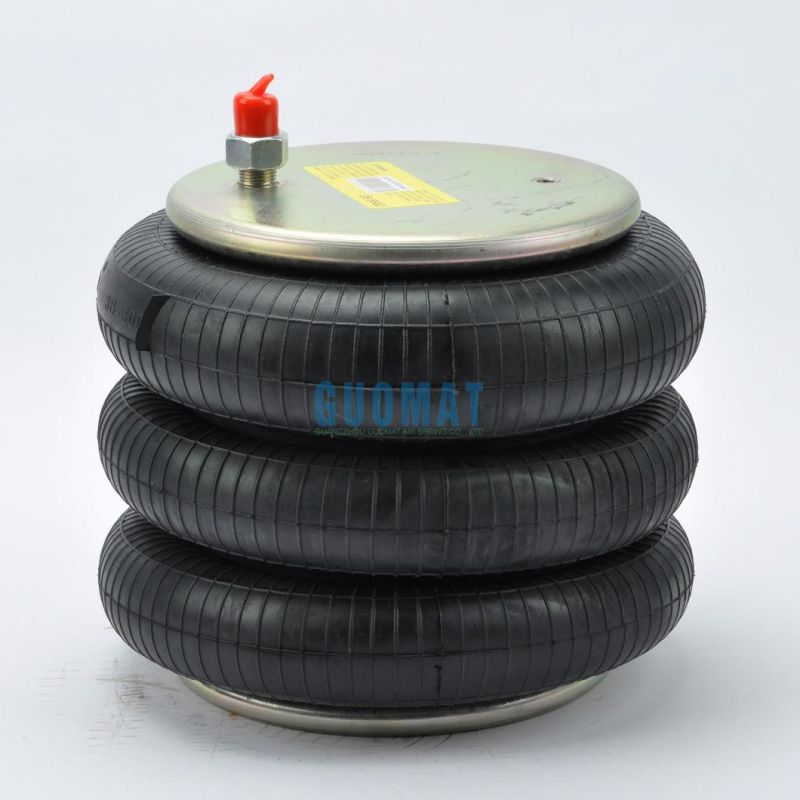

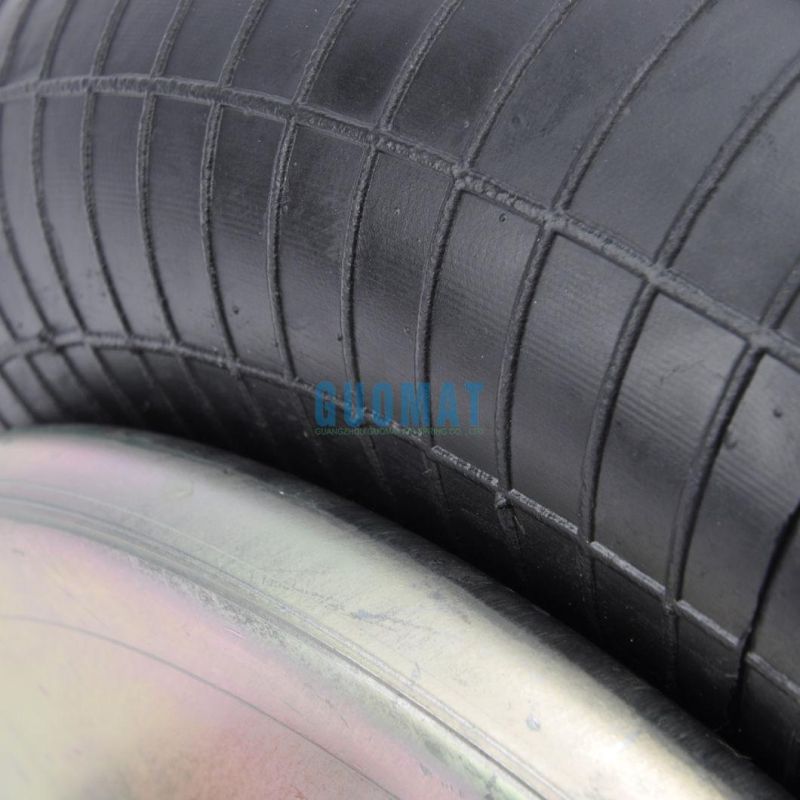

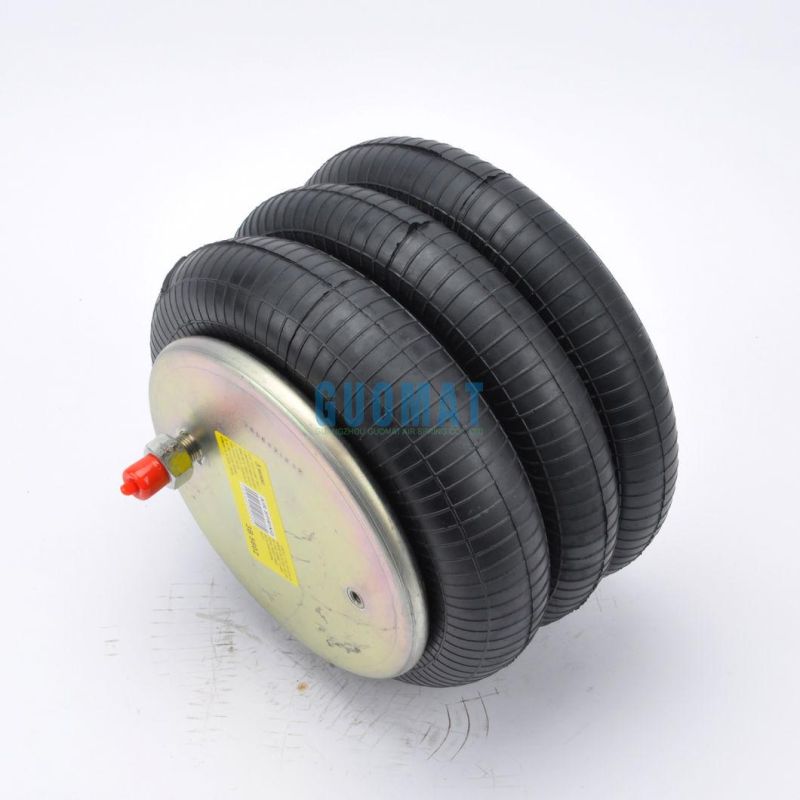

Product Picture
