DC 12VDC Electric Compressor for Parking Air Conditioner
Kepler(Putian)Import&Export Co., Ltd.- Displacement：20cc,Rev
- Rotation Speed：1000-4000rpm
- Rotary Compressor：Scroll Type
- Input Voltage：12VDC
- Working Voltage Range：9-16VDC
- Max Cooling Capacity：2.5kw
Base Info
- Model NO.：KP-DC20124000-T11
- Speed Regulation：5-11V
- Refrigerant：R134A,R1234yf
- Oil：Rl68h
- Controller：Integrated Type
- Rated Working Current：90AMPS
- IP Grade：IP67
- Transport Package：Carton
- Origin：Chinaa
- HS Code：8414301300
- Production Capacity：2000000PCS,Year
Description
Basic Info.
Model NO. KP-DC20124000-T11 Speed Regulation 5-11V Refrigerant R134A/R1234yf Oil Rl68h Controller Integrated Type Rated Working Current 90AMPS IP Grade IP67 Transport Package Carton Origin Chinaa HS Code 8414301300 Production Capacity 2000000PCS/YearProduct Description
Kepler is the only authorized oversea market distributer for TATFOOK electric compressWe have more than 10 years electric production experience with a strong indenpendence reach and develop capabilities
We are the OEM for Denso scroll compressor and we have establish cooperation relation with several worldwide famous air conditioner system manufacturer like Mobile Climate control Dirna Bergstrom KOVEKTA and so on

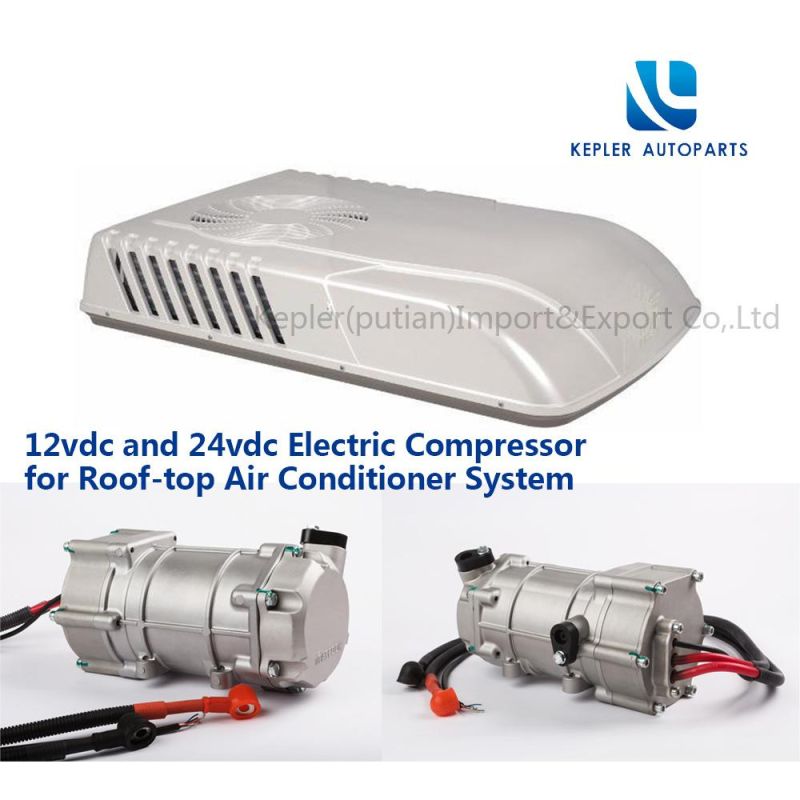

Our 20cc electric compressor is specially designed for 12vdc and 24vdc parking air conditioner system
Basic Tehnical Date for kepler 20cc electric compressor with 12vdc input voltage
| No. | Item | Data |
| 1 | Displacement | 20cc/rev |
| 2 | Max cooling capacity | 2.5KW |
| 3 | Max power consumption | 1.1KW |
| 4 | Rated working current | 90Amp |
| 5 | Max working current | 120Amp |
| 6 | Speed Range | 1000-4000rpm |
| 7 | Motor | Brushless DC motor |
| 8 | Refrigerant | R134a |
| 9 | Oil | RL68H(POE) |
| 10 | Rated input voltage | 12VDC |
| 11 | Working voltage range | 9-16vdc |
| 12 | Speed Regulation | 5-11V |
| 13 | Net Weight | 6.3kg |
| 14 | Suction Pressure | 0.20-0.45Mpa |
| 15 | Discharge Pressure | ≤2.5Mpa |
| 16 | Protection Classic | IP67 |
| 17 | Soft Start | 15 second |
| 18 | Control Logic | Sine Wave |
| 19 | Noise | ≤ 70dB |
| 20 | Protect Funcation | Over Heat Protection Over Current Protection Over Voltage Protection Low Voltage protection |
| 21 | Life Time | >20000hours |

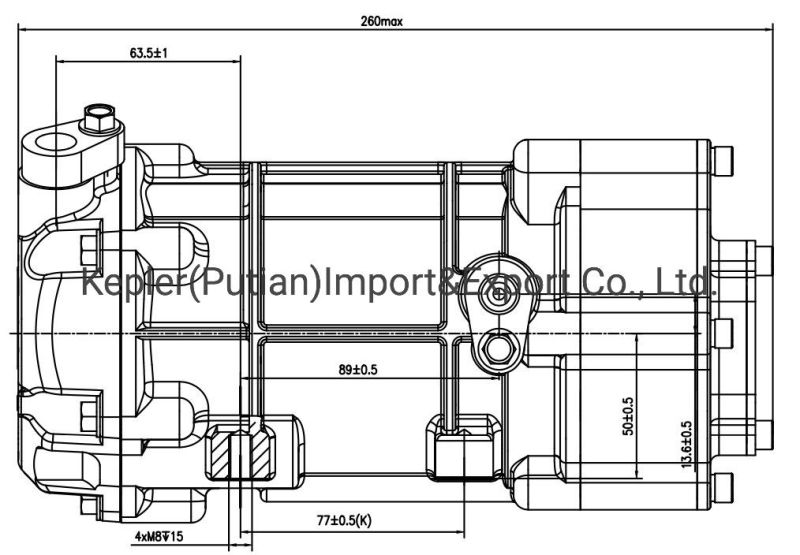

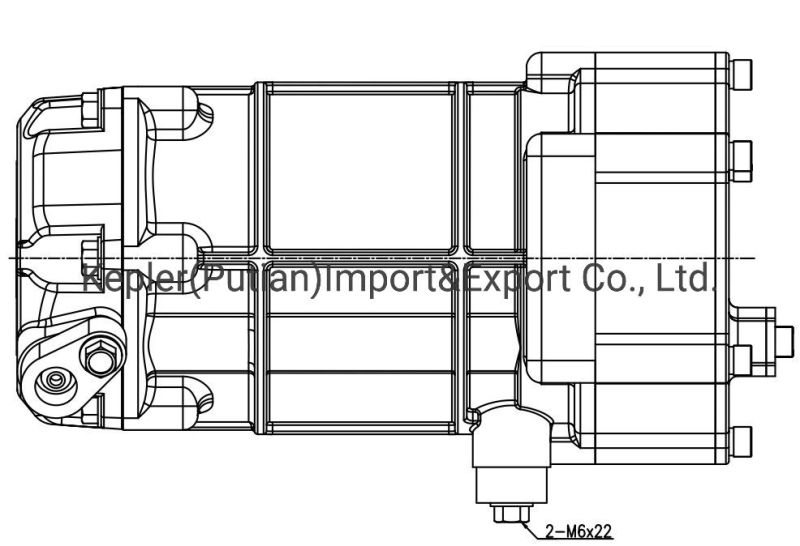

Compressor Drawing

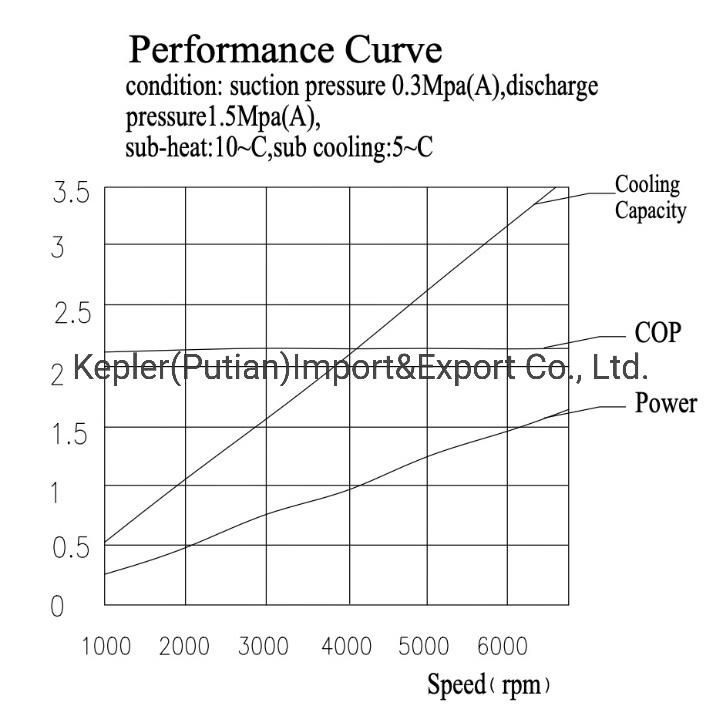

Performance Cruve for KEPLER 20CC Electric Compressor

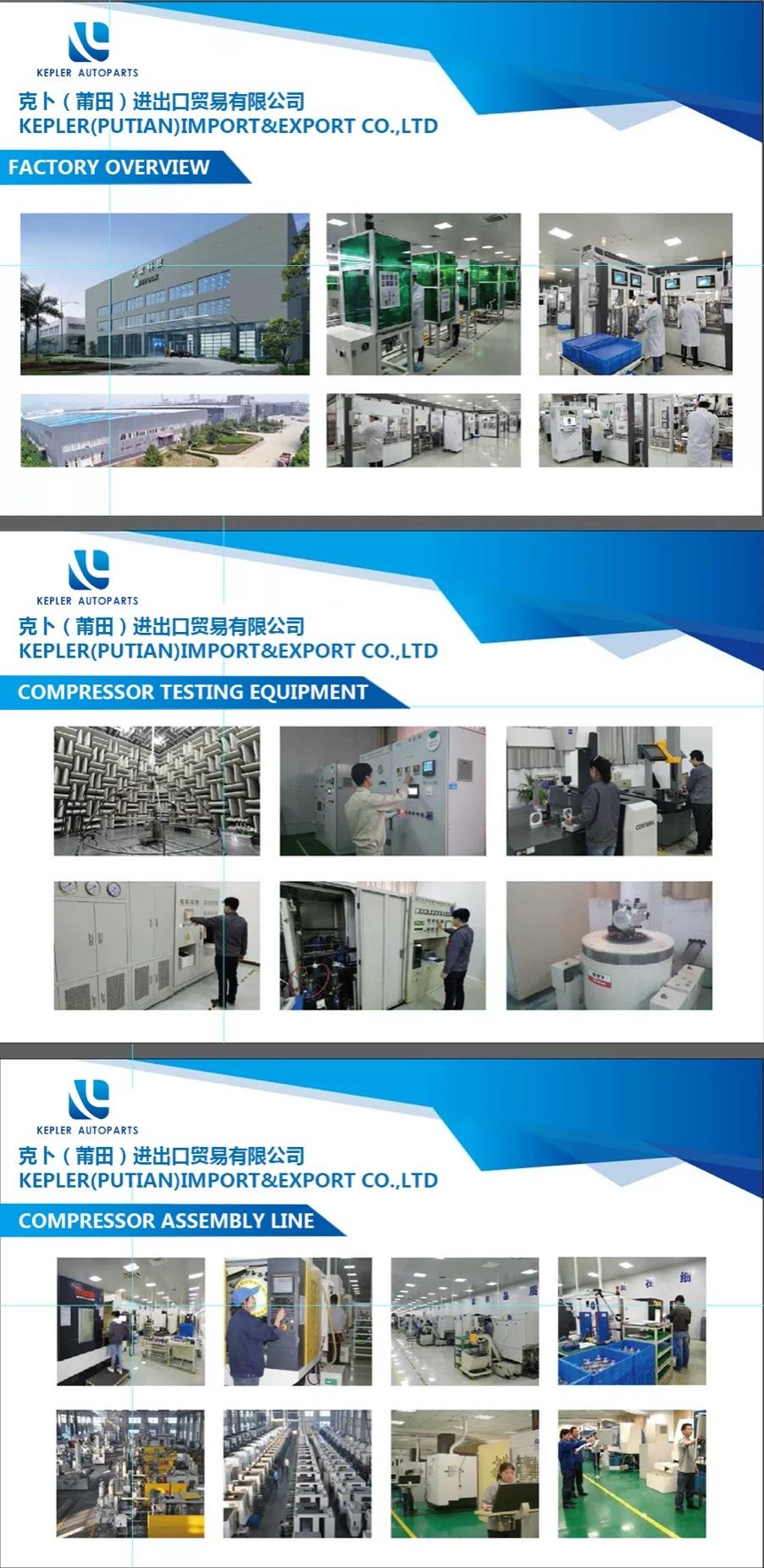

FACTORY OVERVIEW
We have two full automatic assembly line for electric compressor
Annual for electric compressor:200000pcs/year
Quality Control:100% online inspection
