Contitech Fs 40-61/8m8 Phoenix Sp1b04 Air Suspension Single Bellow Airbag
Guangzhou Guomat Auto Parts Co., Ltd.- After-sales Service：1 Year
- Part：Air Spring
- Position：Front,Rear
- Type：Gas-Filled
- Spring Type：Air Spring
- Spring Material：Rubber
Base Info
- Model NO.：SP1B04
- Structure：Single Cylinder
- Brand：Guomat or Neutral
- Damping Force Direction：Bidirectional
- Condition：Brand-New
- Sample：Available
- Function：Reduce Shock
- Quality：100% Tested
- Transport Package：Cartons
- Trademark：GUOMAT
- Origin：Guangzhou
- HS Code：8708809000
- Production Capacity：5000PCS,Month
Description

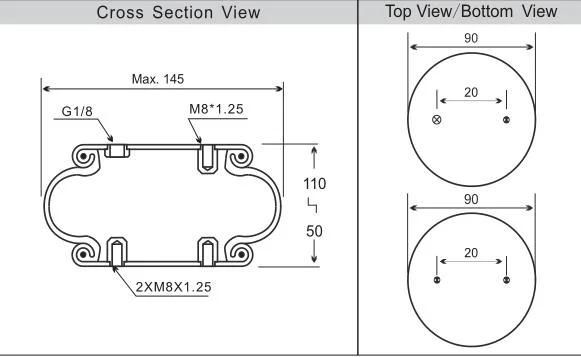

Cover Plate
Top Cover Plate Diameter: 90 mm
Bottom Cover Plate Diameter: 90 mm
Air Inlet/Gas Hole
Air Inlet:G1/8
Blind Nut
Top Cover Plate Screw(Nut)Tooth:1XM8X1.25
Bottom Cover Plate Screw(Nut)Tooth:2XM8X1.25
Distance Between Air Hole And Screw of Top Cover Plate:20mm
Screw Center Distance of Bottom Cover Plate:20mm
Rubber Bellow
Rubber Bellow MAX Diameter:145mm
The Woring Stroke :MAX 110 mm to MIN 50mm
Maximum Height:110mm
Minimum Height:50mm
Technical DataCross Reference
Contitech:FS 40-6 1/8 M8
Phoenix:SP1B04
Weforma:WBE100-E1
Packing & Shipping
1. For small orders those in stock, we usually deliver in 2-8 working days after your payment.
2. While for those out of stock,it depends,we will inform you by email once you inquire.
3. Our payment terms : L/C , T/T, Western Union,Paypal
4. Freight may vary depending on specific weight, volume, and address, please check with us for the exact freight.

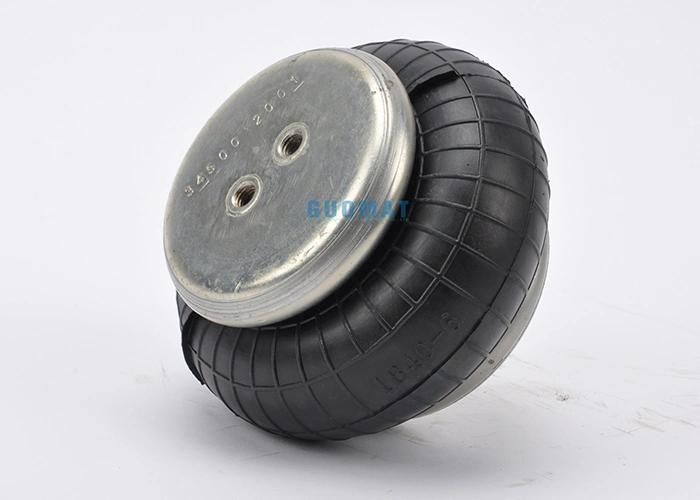

Product Image
