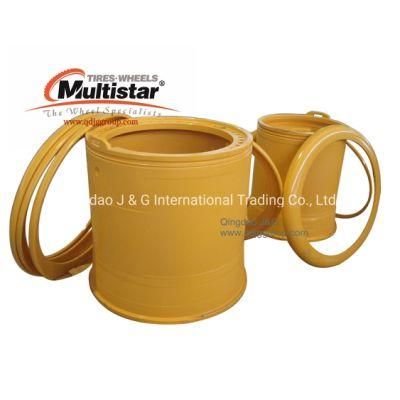

OTR Wheel Rims 49-19.50/4.0 HD 785-7/ HD785-5/ 773 35-17.00/3.0
QINGDAO J & G INTERNATIONAL TRADING CO., LTD.- Material：Steel
- Type：Rim
- Wheel Hub Diameter：49 Inch
- Finishing：Paiting
- Wheel Accessories：Wheel Rim
- Certification：ISO
Base Info
- Model NO.：49-19.50,4.0 35-17.00,3.0
- Type of Rim：Tubeless
- Size：49-19.50,4.0
- Color：Yellow
- Fitted Tyre：27.00-49 or 27.00r49
- Fitted Machine 1：Komatsu HD 785-7
- Fitted Machine 2：Caterpillar 777
- Transport Package：in Pallets
- Specification：ISO certification
- Trademark：MULTISTAR
- Origin：China
- HS Code：87087090
- Production Capacity：500000PCS,Year
Description
Rim SizeRecommemded Tire Dimensions (mm) A G D E P F 51-22.00/4.5 30.00R51 559 114.5 1295 1208 190 1149 51-24.00/5.0 33.00R51 610 127 1295 1208 190 1149 51-26.00/5.0 36.00R51 661 127 1295 1208 190 1149 51-40.00/4.5 50/65R51 1016 114.5 1295 1208 190 1149 57-27.00/6.0 37.00R57 686 152.5 1448 1365 190 1299 57-29.00/6.0 40.00R57 737 152.5 1448 1365 190 1299 57-32.00/5.0 44/80R57 813 127 1448 1365 190 1299 57-32.00/6.0 46/90R57 813 152.5 1448 1365 190 1299 57-36.00/6.0 50/80R57 914 152.5 1448 1365 190 1299 57-44.00/5.0 55/80R57 1118 127 1448 1365 190 1299 57-44.00/6.0 55.5/80R57 1118 152.5 1448 1365 190 1299 57-47.00/5.0 60/85R57 1194 127 1448 1365 190 1299 57-47.00/6.0 60/85-57 1194 152.5 1448 1365 190 1299 63-41.00/5.0 55/80-63 1041 127 1600 190 63-44.00/5.0 58/80-63 1118 127 1600 190 Multipieces 15-9.75/1.37 12.00-15 15-11.00/1.5 14.5-15 15-11.50/1.5 14.5-15 16" Multipieces 16-8.00/0.83 11L-16 16.5 Multipieces 16.5-8.25/0.5 10-16.5 16.5-9.75/0.5 12-16.5NHS 17.5" Multipieces 17.5-10.50/0.5 14-17NHS 18" Multipieces 18-9.00/1.0 12.5/80-18 20" Multipieces 20-7.50/1.7 10.00-20 20-8.0/1.7 11.00-20 20-8.0/2.0 12.00-20 20-8.50/1.7 12.00-20 20-9.00/1.7 13.00-20 20-10.00/1.7 14.00-20 14.00R20 365/80-20 20-10.00/2.0 14.00-20 14.00R20 20-11.00/1.6 12.5-20 20-12.00/2.0 15.5-20 16.00-20 20-13.00/1.0 16/17-20 20-14.00/2.0 17.5-20 20-15.00/1.0 500/70-508 20-15.00/1.7 18L-20 20-15.30/2.0 500/70-508 21" Multipieces 21-11.25/2.0 16.00-21 21-17.00/2.0 20.00-21 1300X530-533 21-18.00/1.5 24.00R21 24.00-21 21-18.00/1.7 24.00R21 24.00-21 22" Multipieces 22-17.00/2.0 23" Multipieces 23-11.00/1.5 14.00-23 23-18.00/2.0 24.00-23 24" Multipieces 24-8.00/1.7 13.00-24 24-8.50/1.7 12.00-24 24-10.00/1.7 14.00-24 24-10.00/2.0 14.00-24 24-10.00VA 14.00-24 16.00-24TG 24-11.25/2.0 16.00-24 24-15.00/1.0 17.5-24 24-16.00/1.1 19.5-24 24-16.00/1.7 54*21-24 25" Multipieces 25-8.50/1.3 13.00-25 25-9.50/1.7 14.00R25 25-10.00/1.5 14.00-25 14.00R25 25-11.00/1.7 16.00-25 25-11.25/2.0 16.00-25 25-12.00/1.3 15.5-25 25-13.00/2.5 18.00-25 24-10.00/1.7 17.5-25 25-14.00/2.0 17.5-25 25-15.00/3.0 21.00-25 25-17.00/1.7 20.5-25 25-17.00/2.0 20.5-25 25-19.50/2.5 23.5-25 25-22.00/1.84 26.5-25 25-22.00/3.0 26.5-25 25-24.00/2.5 29.5-25 25-24.00/3.0 29.5-25 25-25.00/3.5 26.5-25 25-36.00/1.5 24.00R35 26" Multipieces 26-16.00/1.1 18.4-26 26-20.00/1.1 23.1-26 27" Multipieces 27-21.50/2.4 57X25-27/50 27-23.50/2.5 57X25-27/50 27-24.50/2.4 26.00-27 28" Multipieces 28-15.00/1.0 16.9-28 29" Multipieces 29-17.00/3.5 24.00-29 29-24.00/3.0 776/65R29 775/65R29 29-24.00/3.5 776/65R29 775/65R29 29-25.00/3.5 29.5R29 29-27.00/3.5 33.25R29 33" Multipieces 33-13.00/2.5 18.00-33 33-26.00/1.14 33-28.00/3.5 33.5R33 36/65R33 33-32.00/4.5 37.5 R 33 34" Multipieces 34-14.00/1.3 34-16.00/1.3 53X18-34 35" Multipieces 35-15.00/3.0 21.00-35 35-17.00/3.5 24.00-35 35-22.00/3.5 SOLID TYRE 45" Multipieces 45-36.00/4.5 45/65R45 49" Multipieces 49-17.00/3.5 24.00-49 49-19.50/4.0 27.00-49 51" Multipieces 51-22.00/3.0 SOLID TYRE 51-28.00/4.5 SOLID TYRE 57" Multipieces 57-29.00/6.0 40.00R57 46/90R57 63" Multipieces 63-36.00/5.0 53/80R63 63-41.00/5.0 55/80-63 63-44.00/5.0 58/80-63
Below are some sizes of OTR Wheel Rims which we can supply to you.
OTR Wheel Rim / Earthmover Wheel Rim / Engineering Wheel / Multi pieces Wheel Rim / Loader Wheel Rim:
20": 20-7.50/1.7, 20-80/1.7, 20-8.5/1.7, 20-9.00/1.7, 20-10.00/1.7, 20-10.00/1.88, 20-10.00/2.0, 20-11.00/1.7, 20-12.00/2.0, 20-13.00/1.7, 20-13.00/2.0, 20-14.00/2.0, 20-15.00/1.7, 20-15.00/2.0, 20xW14
21": 21-11.25/2.0, 21-18.00/1.5, 21-17.00/2.0, 21-18.00-2.0
22": 22-17.00/2.0
23": 23-11.00/1.5, 23-18.00/2.0
24": 24-8.00/1.7, 24-8.50/1.7, 24-10.00/1.7, 24-10.00/2.0, 24-11.25/2.0, 24-12.00/1.7, 24-13.00/1.7, 24-10.00/1.8, 24xW15, 24xW16
25": 25-8.5/1.5, 25-9.5/1.5, 25-8.50/1.3, 25-9.50/1.7, 25-10.00/1.5, 25-11.00/1.5, 25-14.00/1.5, 25-11.00/1.7, 25-11.25/2.0, 25-11.00/1.7, 25-11.25/2.0, 25-13.00/2.5, 25-14.00/2.0, 24-15.00/3.0, 25-17.00/2.0, 25-19.5/2.0, 25-19.5/2.5, 25-22.00/1.84, 25-22.00/3.0, 25-25.00/3.5, 25-36.00/1.5, 25x12.00DC, 25x13.00DC
26": 26-20.00/1.1
27": 27-23.5/2.5
29": 29-17.00/3.5, 29-22.00/3.0, 29-24.00/3.5, 29-25.00/3.5, 29-27.00/3.5
33": 33-13.00/2.5, 33-28.00/3.5
34": 34-14.00/1.3, 34-16.00/1.5
35": 35-15.00/3.0, 35-17...00/3.5,
49": 49-17.00/3.5, 49-19.5/4.0,
51": 51-22.00/4.5, 51-24.00/5.0, 51-26.00/5.0, 51-40.00/4.5
57": 57-27.00/6.0, 57-29.00/6.0, 57-32.00/5.0, 57-32.00/6.0, 57-36.00/6.0, 57-44.00/5.0, 57-44.00/6.0, 54-47.00/5.0, 54-47.00/6.0
63": 63-41.00/5.0, 63-44.00/5.0
More sizes and information about OTR Wheel Rims, welcome to contact with us.
And we also can supply wheel rims for below models of KOMATSU and CATERPILLAR.
CAT785
CAT12G
CAT777
CAT 797
CAT AD55
CAT R2900
CAT AD45
CAT 980
CAT972
CAT966F
CAT950G
CAT930G
CAT 938G
CAT914G
CAT140G
KOMATSU HM 300-2
KOMATSU HD 785-5
KOMATSU HD 785-7
Hitachi AH300
If you can not find your models, please feel free to contact with us. We can design the wheel rim to meet your demand.
And for your refrence, we have dealed with OTR wheel for many years. Our main markets are Australia, South
Africa, South America and Asia. We also supply OEM service to many vehicle factories not only in domestic but also abroad. And We are now available a wide range of Earthmover wheels with diam from 20" to 63" for mine, underground, port and bridge, etc. And the rim components such as bead bands, lock rings, side rings also can be supplied.
More sizes and information about wheel rims, welcome to contact with us. We will provide the competitive quality, good price and professional services to you.Rim SizeRecommemded Tire Dimensions (mm) Completed Rim WT kg A G D E P F 51-22.00/4.5 30.00R51 559 114.5 1295 1208 190 1149 896 51-24.00/5.0 33.00R51 610 127 1295 1208 190 1149 1023 51-26.00/5.0 36.00R51 661 127 1295 1208 190 1149 1185 51-40.00/4.5 50/65R51 1016 114.5 1295 1208 190 1149 1323 57-27.00/6.0 37.00R57 686 152.5 1448 1365 190 1299 1251 57-29.00/6.0 40.00R57 737 152.5 1448 1365 190 1299 1270 57-32.00/5.0 44/80R57 813 127 1448 1365 190 1299 1384 57-32.00/6.0 46/90R57 813 152.5 1448 1365 190 1299 1402 57-36.00/6.0 50/80R57 914 152.5 1448 1365 190 1299 1539 57-44.00/5.0 55/80R57 1118 127 1448 1365 190 1299 1837 57-44.00/6.0 55.5/80R57 1118 152.5 1448 1365 190 1299 1913 57-47.00/5.0 60/85R57 1194 127 1448 1365 190 1299 1851 57-47.00/6.0 60/85-57 1194 152.5 1448 1365 190 1299 1869 63-41.00/5.0 55/80-63 1041 127 1600 190 2828 63-44.00/5.0 58/80-63 1118 127 1600 190 2927 Rim Size Recommemded Tire Dimensions (mm) Completed Rim WT kg A G P D E F 25-11.25/2.0 16.00R25 286 51 109 635 574 546 157 25-13.00/2.5 18.00R25 330 63.5 109 635 574 546 178 25-15.00/3.0 21.00R25 381 76 119 635 574 546 193 25-17.00/2.0 20.5R25 432 51 119 635 574 546 200 25-19.00/2.5 23.5R25 495 63.5 119 635 574 542 231 25-22.00/3.0 26.5R25 559 75 119 635 574 542 270 25-25.00/3.5 29.5R25 635 89 119 635 574 542 291 29-24.00/3.0 775/65R29 610 76 139 736.6 674 638 303 29-25.00/3.5 29.5R29 635 89 139 736.6 674 638 327 29-27.00/3.5 33.25R29 686 89 139 736.6 674 638 335 33-13.00/2.5 18.00R33 330 63.5 109 838.2 775 732 291 33-28.00/3.5 36/65R33 711 89 139 838.2 775 732 384 35-15.00/3.0 21.00R35 381 76 119 889 824 784 306 35-17.00/3.5 24.00R35 432 89 119 889 824 784 329 Rim Size Recommemded Tire Dimensions (mm) Completed Rim WT kg A G D E F 20-8.5/1.7 12.00-20 216 43 514.4 482 458 65 20-10.00/1.7 14.00-20 254 43 514.4 482 458 76 24-5.8/1.7 12.00-24 216 43 616 585 560 77 24-10.00/1.7 14.00-24 254 43 616 585 560 81 24-8.5/2.0 12.00-24 216 51 616 585 560 82 24-10.00/2.0 14.00-24 254 51 616 585 560 86 Rim Size Recommemded Tire Dimensions (mm) Completed Rim WT kg A G P D E F 39-32.00/4.5 40/65-39 813 114.5 137 990.6 924 870 562 45-36.00/4.5 45/65-45 914 114.5 137 1143 1082 1017 737 49-17.00/3.5 24.00R49 432 89 137 1244.6 1184 1116 680 49-19.5/4.0 27.00R49 495 102 137 1244.6 1184 1116 717 Rim Size Recommemded Tire Dimensions (mm) Completed Rim WT kg A G P D E F 25-10.00/1.5 14.00-25 254 38 109 635 576 550 122 25-11.25/2.0 16.00-25 286 51 109 635 576 550 141 25-13.00/2.5 18.00-25 330 63.5 109 635 576 550 160 25-14.00/1.5 17.5-25 355.5 38 109 635 576 550 149 25-17.00/2.0 20.5-25 432 51 109 635 576 550 173 25-19.50/2.5 23.5-25 495 63.5 109 635 576 550 180 25-22.00/3.0 26.5-25 559 76 109 635 576 550 243 25-25.00/3.5 29.2-25 635 89 109 635 576 550 262 Rim Size Recommemded Tire Dimensions (mm) Completed Rim WT kg A G P D E F 20-8.5/1.7 12.00-20 216 43 60 514.4 470 446 57 20-10.00/1.7 14.00-20 254 43 60 514.4 470 446 67 20-13.00/1.0 16/70-20 330 25.5 50 512.8 466 444 79 20-8.0/2.0 11.00-20 203 51 60 514.4 466 444 62 21-17.00/2.0 20.5-21 432 51 65 533.4 488 456 98 21-18.00/1.7 24.00-21 458 43 65 533.4 488 456 101 22-17.00/2.0 20.5-22 432 51 65 558.8 515 484 110 23-11.00/2.0 14.00-23 280 51 65 585 540 510 102 23-18.00/2.0 24.00-23 458 51 65 585 540 510 122 24-8.5/1.7 12.00-24 216 43 60 614.4 570 546 74 24-10.00/1.7 14.00-24 254 43 60 614.4 570 546 78 24-11.25/2.0 16.00-24 286 51 60 616 570 546 88 25-8.5/1.5 13.00-25 216 38 50 635 590 563 86 25-10.00/1.5 14.00-25 254 38 65 635 590 563 94 25-12.00/1.3 15.5-25 305 33 60 635 590 563 89 25-14.00/1.5 17.5-25 355.5 38 65 635 590 563 98 25-17.00/1.7 20.5-25 432 43 65 635 590 563 113 25-17.00/2.0 20.5-25 432 51 65 635 590 563 117 25-19.5/2.5 23.5-25 495 63.5 65 635 590 563 125 25-22.00/3.0 26.5-25 559 76 80 635 580 550 180 25-25.00/3.5 29.5-25 559 76 80 635 580 550 216 26-20.00/1.1 23.1-26 508 28.6 50 665.2 620 590 139
Below are some sizes of OTR Wheel Rims which we can supply to you.
OTR Wheel Rim / Earthmover Wheel Rim / Engineering Wheel / Multi pieces Wheel Rim / Loader Wheel Rim:
20": 20-7.50/1.7, 20-80/1.7, 20-8.5/1.7, 20-9.00/1.7, 20-10.00/1.7, 20-10.00/1.88, 20-10.00/2.0, 20-11.00/1.7, 20-12.00/2.0, 20-13.00/1.7, 20-13.00/2.0, 20-14.00/2.0, 20-15.00/1.7, 20-15.00/2.0, 20xW14
21": 21-11.25/2.0, 21-18.00/1.5, 21-17.00/2.0, 21-18.00-2.0
22": 22-17.00/2.0
23": 23-11.00/1.5, 23-18.00/2.0
24": 24-8.00/1.7, 24-8.50/1.7, 24-10.00/1.7, 24-10.00/2.0, 24-11.25/2.0, 24-12.00/1.7, 24-13.00/1.7, 24-10.00/1.8, 24xW15, 24xW16
25": 25-8.5/1.5, 25-9.5/1.5, 25-8.50/1.3, 25-9.50/1.7, 25-10.00/1.5, 25-11.00/1.5, 25-14.00/1.5, 25-11.00/1.7, 25-11.25/2.0, 25-11.00/1.7, 25-11.25/2.0, 25-13.00/2.5, 25-14.00/2.0, 24-15.00/3.0, 25-17.00/2.0, 25-19.5/2.0, 25-19.5/2.5, 25-22.00/1.84, 25-22.00/3.0, 25-25.00/3.5, 25-36.00/1.5, 25x12.00DC, 25x13.00DC
26": 26-20.00/1.1
27": 27-23.5/2.5
29": 29-17.00/3.5, 29-22.00/3.0, 29-24.00/3.5, 29-25.00/3.5, 29-27.00/3.5
33": 33-13.00/2.5, 33-28.00/3.5
34": 34-14.00/1.3, 34-16.00/1.5
35": 35-15.00/3.0, 35-17...00/3.5,
49": 49-17.00/3.5, 49-19.5/4.0,
51": 51-22.00/4.5, 51-24.00/5.0, 51-26.00/5.0, 51-40.00/4.5
57": 57-27.00/6.0, 57-29.00/6.0, 57-32.00/5.0, 57-32.00/6.0, 57-36.00/6.0, 57-44.00/5.0, 57-44.00/6.0, 54-47.00/5.0, 54-47.00/6.0
63": 63-41.00/5.0, 63-44.00/5.0
More sizes and information about OTR Wheel Rims, welcome to contact with us.
And we also can supply wheel rims for below models of KOMATSU and CATERPILLAR.
CAT785
CAT12G
CAT777
CAT 797
CAT AD55
CAT R2900
CAT AD45
CAT 980
CAT972
CAT966F
CAT950G
CAT930G
CAT 938G
CAT914G
CAT140G
KOMATSU HM 300-2
KOMATSU HD 785-5
KOMATSU HD 785-7
Hitachi AH300
If you can not find your models, please feel free to contact with us. We can design the wheel rim to meet your demand.
And for your refrence, we have dealed with OTR wheel for many years. Our main markets are Australia, South
Africa, South America and Asia. We also supply OEM service to many vehicle factories not only in domestic but also abroad. And We are now available a wide range of Earthmover wheels with diam from 20" to 63" for mine, underground, port and bridge, etc. And the rim components such as bead bands, lock rings, side rings also can be supplied.
More sizes and information about wheel rims, welcome to contact with us. We will provide the competitive quality, good price and professional services to you.Rim Size
