• Model NO.：X092
• Type：Air Suspension Compressor
• Color：Chrome
• Max. Working Pressure：120 Psi
• Max. Flow Rate：36L,Min (1.27cfm)
• Duty Cycle：9% @ 100 Psi
• Transport Package：Box
• Trademark：CARTEEAIR
• Origin：China

Basic Info.

Model NO. X092 Type Air Suspension Compressor Color Chrome Max. Working Pressure 120 Psi Max. Flow Rate 36L/Min (1.27cfm) Duty Cycle 9% @ 100 Psi Transport Package Box Trademark CARTEEAIR Origin China

Product Description

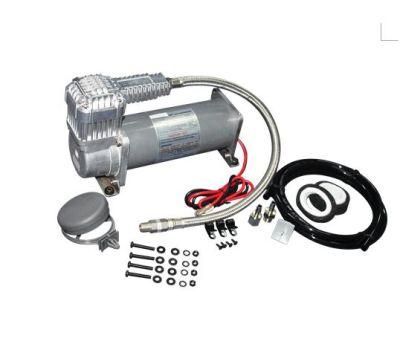

X092 air compressor offer a light duty solution for smaller air requirements and are meant to fill no larger than a one-gallon air tank.

SPECIFICATIONS


Part No. X092 Air Compressor

Motor Voltage: 12 Volts
Max. Current Consumption: 9 Amps
Motor Type: Perm. Magnetic
Max. Working Pressure: 120 PSI
Max. Duty Cycle (@72ºF & 100 PSI): 9%
Max. Ambient Temperature: 158°F
Min. Ambient Temperature: -40°F

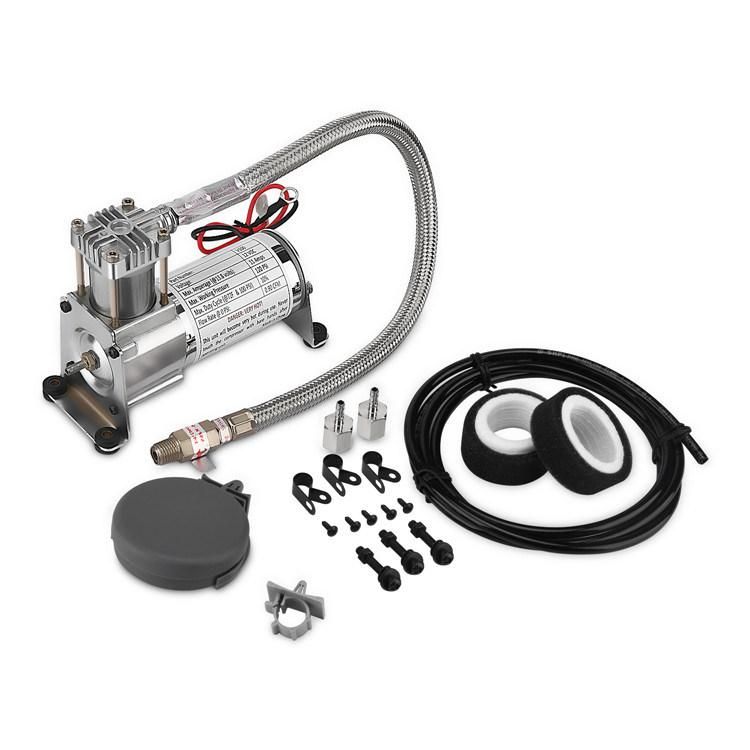

Accessories:
check valve
mounting hardware
vibration isolators
stainless steel braided leader hose
air line for remote mount air filter
remote mount air filter assembly
replacement air filter elements

Performance Data:

PSI	CFM	LPM	A
0	1.02	29.0	7
10	0.71	20.0	8
20	0.67	19.0	8
30	0.64	18.0	9
40	0.60	17.0	9
50	0.57	16.0	9
60	0.53	15.0	9.5
70	0.46	13.0	9.5
80	0.44	12.5	9.5
90	0.42	12.0	10
100	0.39	11.0	9
110	0.37	10.5	9
120	0.34	9.5	9

TANK FILL RATES:

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 08 sec. (± 05 sec.)
85 to 105 PSI	16 sec. (± 03 sec.)
0 to 120 PSI	1 min. 23 sec. (± 05 sec.)
90 to 120 PSI	27 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 20 sec. (± 10 sec.)
85 to 105 PSI	35 sec. (± 05 sec.)
0 to 120 PSI	3 min. 04 sec. (± 10 sec.)
90 to 120 PSI	54 sec. (± 05 sec.)

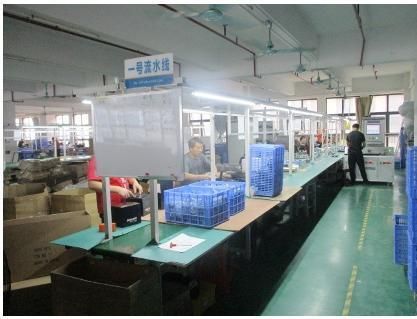

We are a professional manufacturer of heavy duty portable air compressors, hard mount air compressors and air accessories. Our hard mount air compressors are widely used for air suspension system, air horn, air brake assist, air seat, air locker, agricultural machinery, industrial, medical and various other applications. We have more than 20 years of experience in this industry. Our company has got IATF16949 Quality System Certification.

Our advantages are as below:
1) More than 20 years experience in developing and manufacturing of air suspension compressors and air accessories.
2) Reliable and consistent quality.
3) 1-3 Year warranty policy (depend on product type)
4) Strong engineering capability and ODM/OEM custom design


We are supplying our products to several world famous big companies. We are proud of our good quality and good reputation among customers.
You are also welcome to visit our company at your convenience. We would like to show you our strong engineering and testing capability.

If you need any of our products, please feel free to contact me. We are honored to be of service to you.
We also love to develop more new items if you can provide the detailed technical specifications and data or samples.

We look forward to business cooperation with you soon and await your comments.
