• Model NO.：ZBJZ
• Transport Package：in Bulk
• Specification：16ton
• Trademark：ZBJZ
• Origin：Shandong China
• HS Code：87088090
• Production Capacity：10000 Set,Sets , Month

Basic Info.

Model NO. ZBJZ Transport Package in Bulk Specification 16ton Trademark ZBJZ Origin Shandong China HS Code 87088090 Production Capacity 10000 Set/Sets / Month

Product Description

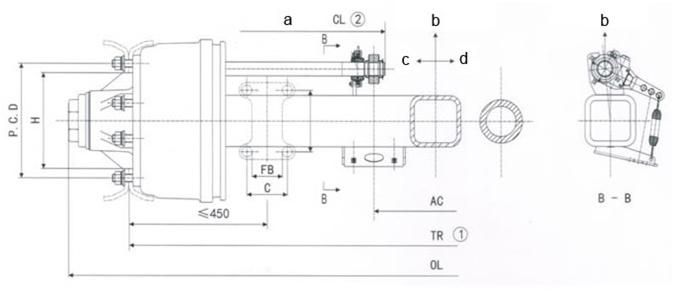

German Type Truck Square Beam Trailer Axle

Product Description

Axle model	JZ16GNS1	JZ16GNS2	JZ16GNS3	JZ16GNS4	JZ18GNS1	JZ18GNS2
Rated loading capacity (kg)	16000	16000	16000	16000	18000	18000
Bearing	32314/32222	32314/32222	32314/32222	32314/32222	32314/32222	32314/32222
Wheel track (mm)	1840	1850	1850	1860	1850	1860
Brake size	Φ420×200	Φ420×200	Φ420×220	Φ420×220	Φ420×220	Φ420×220
Center distance of brake chamber (mm)	347	357	337	347	337	347
Wheel fixing (P.C.D.×H)	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281
Wheel bolt	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO
Axle tube (mm)	150	150	150	150	150	150
Weight (kg)	405	410	415	420	430	432
Recommended wheel	>=8.50V-20	>=8.50V-20	>=8.50V-20	>=8.50V-20	>=8.50V-20	>=8.50V-20
Max. length (mm)	≈2165	≈2262	≈2262	≈2272	≈2262	≈2272

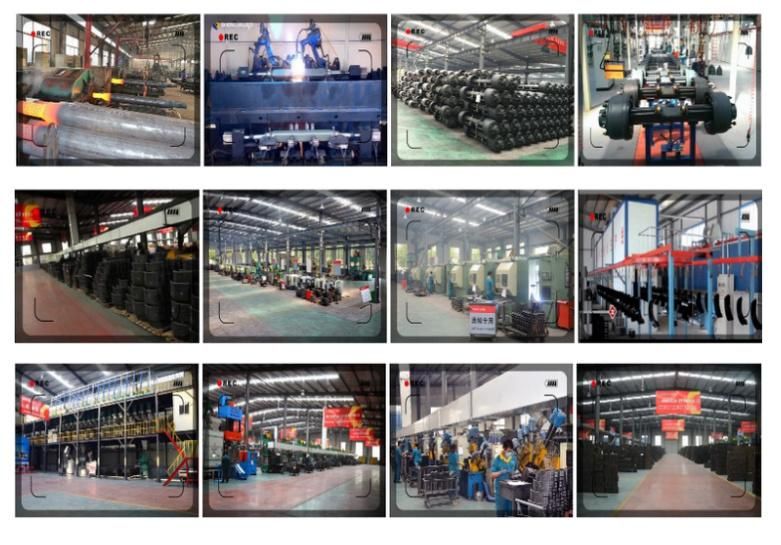

Our factory:

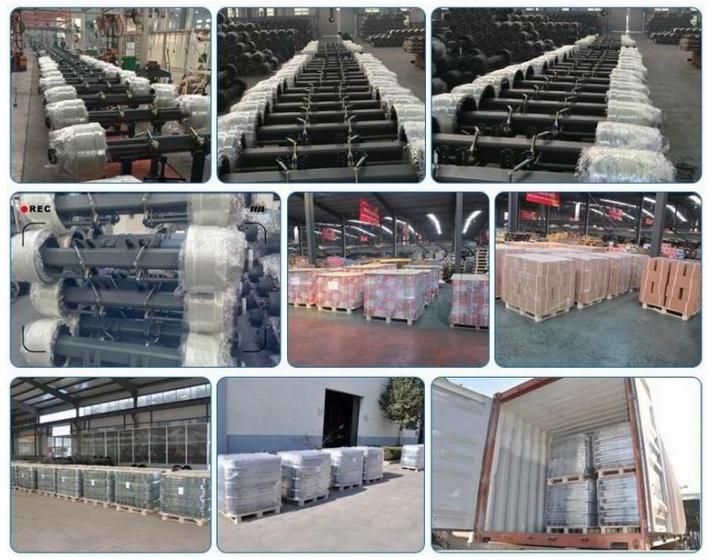

Package:

Exhibision & Certification:

RFQ:
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. What can you buy from us?
Semi Trailer/Mechanical Suspension/Leaf Spring Suspension/Trailer Axle/Disc brake axles/Landing Gear Legs

3. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
