• Model NO.：19581
• Main Market：South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America
• Application：BPW, Cardi, Gigant, Saf
• Size：217.1*222.7*17.9,8
• Color：Shining Black
• Deliver Time：25-40days After Receving The Deposit
• Transport Package：Shrink Bag in Carton, Pallet
• Specification：217.1*222.7*17.9,8
• Trademark：CHANGDA
• Origin：Zhejiang, China
• HS Code：87083010
• Production Capacity：500000PCS Per Month

Basic Info.

Model NO. 19581 Main Market South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America Application BPW, Cardi, Gigant, Saf Size 217.1*222.7*17.9/8 Color Shining Black Deliver Time 25-40days After Receving The Deposit Transport Package Shrink Bag in Carton, Pallet Specification 217.1*222.7*17.9/8 Trademark CHANGDA Origin Zhejiang, China HS Code 87083010 Production Capacity 500000PCS Per Month

Product Description

Product Type:	Brake Linings

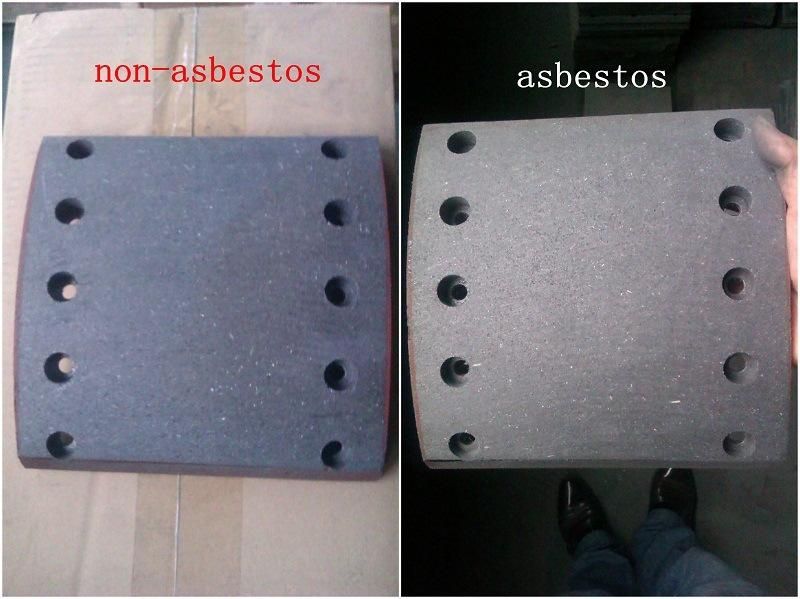

Material:	Asbestos; Semi-metallic; Non-asbestos; Ceramic etc.
Model:	19581
Specification:	Inner Arc:217.1mm Width: 222mm Thickness:17.9/8mm
Material span life:	Asbestos: 30000 to 40000 kilometers Non asbestos: 70000 to 80000 kilometers Ceramic: 100000 kilometers up
Packing:	4 pieces per sealed ploybag, export carton standard pallet .  Can be packed as per your requirement.
Sample:	Free of charge
MOQ:	2000 pcs
Delivery time:	25 -60 days as per order quantity
Delivery port:	Ningbo Port
Production capacity:	300000 pieces per month
applicatation	MAN,MERCEDES BENZ

2. Featurers:
1) Good heat dissipation
2) Do not damage the drum
3) Low noise
4) High temperature resistant
5) Environment-friendly

3. Testing Result

Inspection Item	Test Result
NormalTemperature Friction Coefficient(100-150ºC)	0.42±0.02
Hot Friction Coefficient(250ºC-300ºC)	0.42±0.01
Wear Rate(×10-7m3/Nm150ºC)	0.26-0.53
Density(g/cm3)	2.22
Impact Force(J/cm2)	0.46
Los's strength(HRM)	51
Shear strength in(MPa)	20.52
Compression strength(N/mm2)	84.49
Thermal Expansivity/%	0.89
