• Model NO.：785B
• Working Mode：Power Combining
• Working State：No linkage
• Voltage：0
• Electromagnetic Clutch：0
• Size：276*164*3.5mm
• Pads：10 Buttons, 40 Holes, 10 Grooves.
• Transport Package：Box+Pallet
• Specification：GB,T 5764-1998
• Trademark：Fricwel
• Origin：China
• HS Code：8708931
• Production Capacity：300, 000 PCS,Month

Basic Info.

Model NO. 785B Working Mode Power Combining Working State No linkage Voltage 0 Electromagnetic Clutch 0 Size 276*164*3.5mm Pads 10 Buttons, 40 Holes, 10 Grooves. Transport Package Box+Pallet Specification GB/T 5764-1998 Trademark Fricwel Origin China HS Code 8708931 Production Capacity 300, 000 PCS/Month

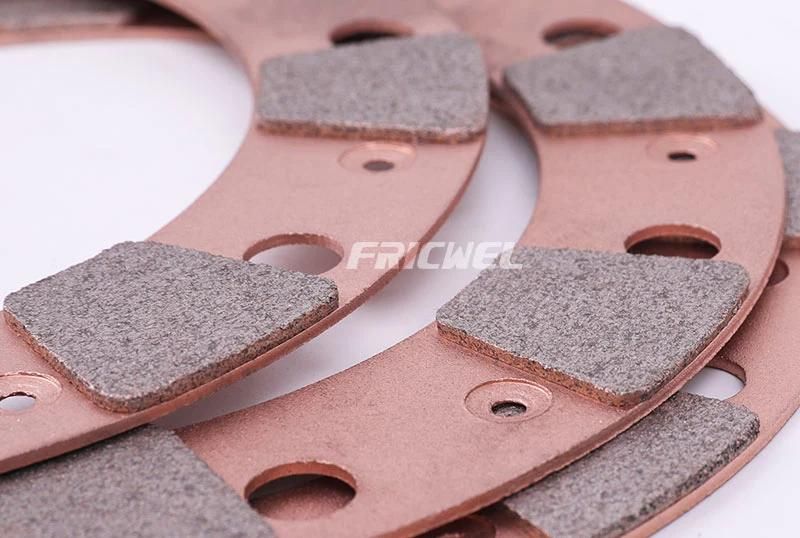

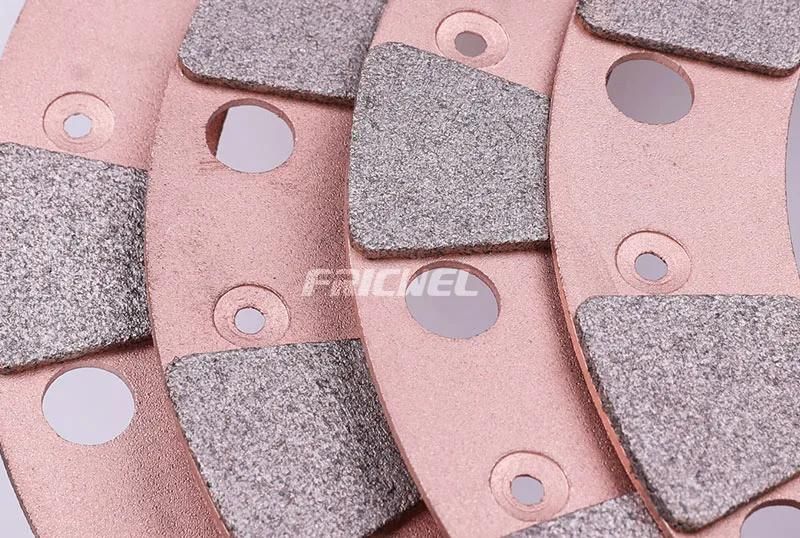

Product Description

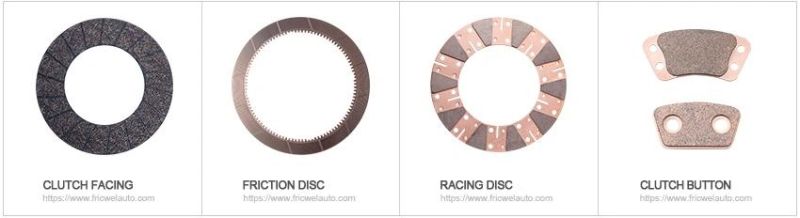

Related Products Of The Company:

Product Advantages:
1. The materials include regular formula, low wearing rate formula and the iron formula.
2. The low wearing rate, quality similar to European and US made products, supplied to OE market.
3. Suitable for racing cars, street cars and other high performance requirements applications.
4. Near 30 years of friction material experience, has strict quality control for every batch.

General Standard For Racing Disc:

1	Friction coefficient	0.49-0.58(regular)
2	Wearing rate	0.05-0.18(regular)
3	Surface Hardness of button	BHN 25+/-5
4	Bend test result	Passed, no bearing area on the back plate

Dimensions And Specifications:

NO.	PART NO.	DESCRIPTION	GROOVES	DIMENSION
1	FR-314	6 PADS RACING DISC	6 GROOVES	215*155*6.0mm
2	785A	16 HOLES	NONE	190*132*3.5mm
3	785B	16 HOLES	NONE	190*132*3.0mm
4	8037	8 PADS 16 HOLES	8 GROOVES	224*150*3.5mm
5	8037-SP	9 PADS 18 HOLES	9 GROOVES	218*150*3.5mm
6	8039	9 PADS 18 HOLES	9 GROOVES	215*150*3.5mm
7	8559	4 PADS 9HOLES	4 GROOVES	178*48*3.5mm
8	8656	8 PADS 16 HOLES	8 GROOVES	212*150*3.5mm
9	909C	9 PADS 36 HOLES	NONE	231*155*3.5mm
10	9035	9 PADS 36 HOLES	9 GROOVES	245*152*3.5mm
11	9035A	9 PADS 36 HOLES	9 GROOVES	240*152*3.5mm
12	9041A	8 PADS 32 HOLES	8 GROOVES	240*160*3.5mm
13	9875-1	16 PADS WITH 32 HOLES	NONE	250*160*3.5mm
14	9875-2	8 PADS WITH 32 HOLES	8 GROOVES	250*160*3.5mm
15	B10000	10 PADS 40 HOLES	10 GROOVES	264*164*3.5mm
16	11004	10 PADS 40 HOLES	10 GROOVES	298*172*3.5mm
17	1166A	10 PADS 40 HOLES	10 GROOVES	276*164*3.5mm
18	2752-141-135	8 PADS 32 HOLES	8 GROOVES	240*162*3.5mm

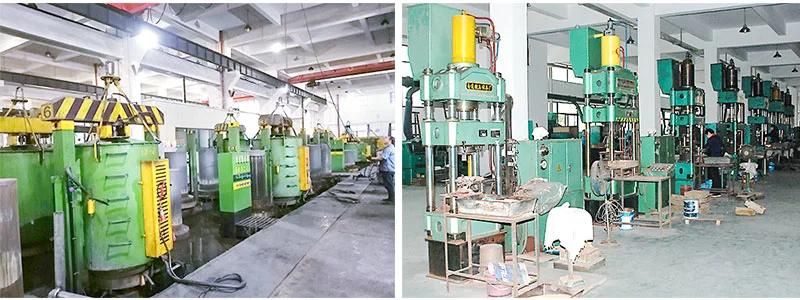

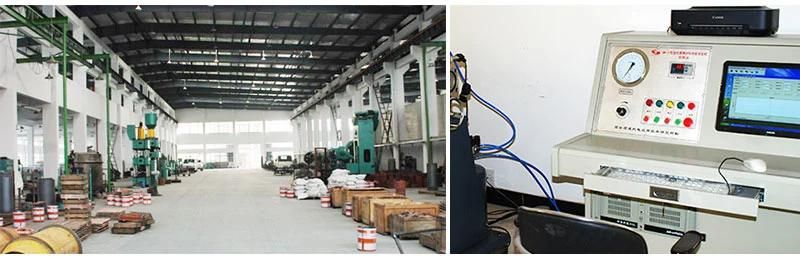

Company Environment:

Company Profile:
Founded in 1992, our factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. Our main business is the production and sales of auto parts products, such as clutch facings, copper clutch buttons, friction disc and related accessories. We are also one of the earliest friction material manufacturers in China.
Our factory has passed ISO9001 quality system certification. And we have various advanced lathes and processing equipments, as well as various engineering testing instruments,reaching the leading level in the domestic industry. Our products are exported to all over the world and well received by customers.

Why Choose Us?
1. Focus on friction materials production for more than 20 years.
2. Strict quality control system and professional inspection, OEM service avaliable.
3. One year quality gurantee since the date of delivery.
4. The product has passed CE, ISO and TS16949 certificates.
5. Professional online service team, quick response for customer message and question.
6. Sales markets covers North America, South Aemica, Europe,Asia, Middle east and Africa.
