- Model NO.：HW23710
- Transport Package：Wood
- Specification：HW23710
- Trademark：SINOTRUK
- Origin：China
- Production Capacity：50000
| Model | Rated Input Torque(Nm) | Weight(kg) | Fuel Volume(L) | Total Length(mm) | Aluminum Case is Optional |
| HW15710 | 1500 | 342 | 12 | 843 | Yes |
| HW15710C | 1650 | 342 | 12 | 843 | Yes |
| HW19710 | 1900 | 355 | 12 | 843 | Yes |
| HW19710C | 2100 | 355 | 12 | 843 | Yes |
| HW23710 | 2300 | 359 | 12 | 859 | |
| HW23710C | 2500 | 359 | 12 | 859 | |
Ratio of every Speed
| Transmission Model | Speed Ratio for Gears |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 |
| HW15710 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.8 | 1.34 | 1 | 13.91 | 3.18 |
| HW15710C | 10.73 | 7.98 | 5.91 | 4.38 | 3.29 | 2.45 | 1.82 | 1.35 | 1 | 0.75 | 10.45 | 2.39 |
| HW19710 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.8 | 1.34 | 1 | 13.91 | 3.18 |
| HW19710C | 10.73 | 7.98 | 5.91 | 4.38 | 3.29 | 2.45 | 1.82 | 1.35 | 1 | 0.75 | 10.45 | 2.39 |
| HW23710 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.8 | 1.34 | 1 | 13.91 | 3.18 |
| HW23710C | 10.73 | 7.98 | 5.91 | 4.38 | 3.29 | 2.45 | 1.82 | 1.35 | 1 | 0.75 | 10.45 | 2.39 |
Type and Parameters of Optional Power Take Off
| Model | Output Direction (With Engine) | Ratio | Rated Output Torque (Nm) | Output Format | Output Ratio of Direction Speed | Output Ratio of Overspeed |
| HW50 | Same | 0.74 | 500 | Flange | 0.86 | 0.64 |
| HW50-05 | Same | 0.74 | 500 | Spline | 0.86 | 0.64 |
| HW50-06 | Same | 0.72 | 500 | Flange | 0.84 | 0.62 |
| HW70 | Same | 0.76 | 700 | Flange | 0.88 | 0.66 |
| HW70-05 | Same | 0.76 | 700 | Spline | 0.88 | 0.66 |
| HW80Q | Same | 0.61 | 800 | Flange | 0.61 |
We can provide:
TRUCK
Sales Chinese trucks and construction machinery, Provide modificationsu, pgrades, consulting services
SPARE TRUCK

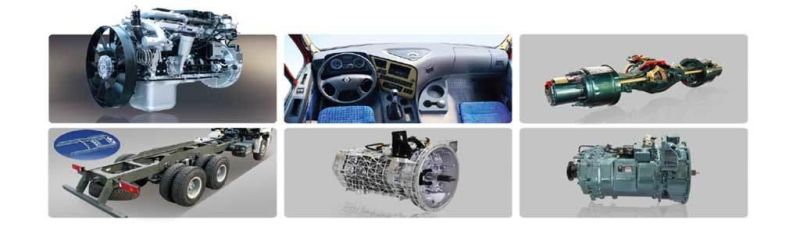

Supply China Truck spare parts and construction machinery parts. Products Include: Sinotruk HOWO, Weichai Power, Fonton, Shacman, SHANTUI, SANY, SDLG
