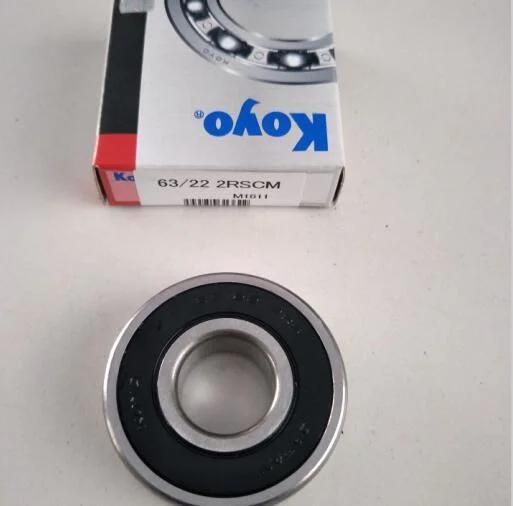

• Model NO.：63,22-2RS
• Brand：Koyo
• Car Make：Lexus
• Transport Package：Single Box
• Specification：CE, RoHS, SGS, GMP
• Trademark：IKC SKF NSK NTN KOYO NACHI IKO TWB HRB TIMKNE
• Origin：China, USA, Germany, Italy, France, Europe
• HS Code：8482102000
• Production Capacity：100000000000000,Year

Model Name

ID

OD

Width

Basic Load Rating

Max

Weight

(KG)

d (mm)

D(mm)

B(mm)

Dynamic

Static

Grease

(r/min)

Oil

(r/min)

Cr(KN)

Cor(KN)

63/22

22

56

16

18.69.32800018000-






1:KOYO  Non-standard Deep Groove Ball Bearing Information:
KOYO Single row radial ball bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. Shielded bearings are protected on one, or both sides (suffixes Z and ZZ, respectively) by metal shields fastened to the outer ring. This close clearance labyrinth seal retains the lubricant and prevents the entrance of foreign matter. Sealed bearings incorporate steel reinforced rubber seals securely fastened to a groove on the outer ring. Contact with the inner ring is by sealing lip (Contact Suffix LLU). Or, non-contact with the inner ring is by labyrinth seal (Non-contact Suffix LLB) to provide positive sealing at all times.
2.Non-standard Deep Groove Ball Bearing Protection:
1.The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.
2.Don't allow strong impact, such as hammer striking, transfer roller pressure
3.Use the accurate installation tool, avoid to use cloth kind and short fibers
4.Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
5.General inspection, such as the surrounding temperature, vibrate, noise inspection
6.Keep bearing cleaning from dirt, dust, pollutant, moisture.
7.Bearing should not be ultra cooled.
3:Non-standard Deep Groove Ball Bearing Application:
This bearings can be used: After sewing equipment, machine tool spindles, plug-in, ordinary type cooling tower, resistance welding machine, aging furnace, hobbing machine, environmental protection equipment, whirlpool pump, ceramics engraving machine, metal packaging machinery, fishing machinery, high pressure reactor, offset printing, aerospace, rubber granulating machine, plastic machine, chip conveyor, and so on purpose.
83A070SH, 83A209D, 83B717, 83B716, 83746A, 83A263, 83B8808B, 6305XIW3, 6307NYC3, 6306NY-9, 6205LT, 6203-2RS-8, SC05A51, SC04A47, SC04A34, SC04B19, TM-SC061B42, EC-SC07837, EC-6000AHL, 83A831G, 6206JWXN/01, 60/22-RS/PS, 62/22/PS, 62/28/PS, 6303X3-3/PS, 63/22X2/PS, 6305X2-Z/PS, 68305X1/PS, 63/28/PS, 63/28/X1/PS, 6303X3-2, B-35S2, B-30S2, 559339, W5304-ZZ, 6403-2RS, 62304-2RS-17, W6305-2RS

60/22   22x44x12 mm

60/28  28x52x12mm

60/32   32x58x13mm

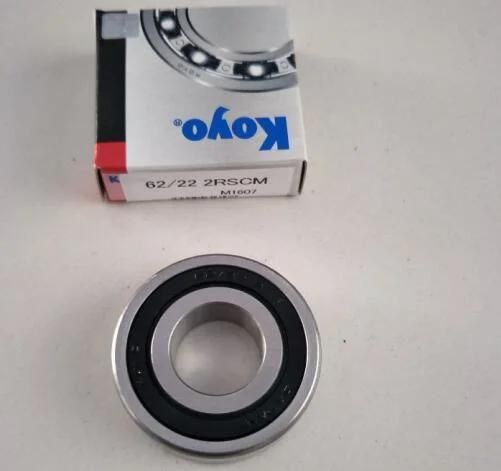

62/22  22x50x14mm

62/28   28x58x16mm

62/32   32x65x17mm

63/22   22x56x15mm

63/28  28x68x18mm

63/32  32x75x20mm

63/25  25x56x16mm

63/30   30x75x20mm

63/35  35x85x23mm

63/28/22   22x68x18mm

450706  30x75x21mm

450907  32x80x23mm

B19        20x52x12mm
