• Model NO.：FW-029
• Working Mode：Power Combining
• Working State：No linkage
• Voltage：0
• Electromagnetic Clutch：0
• Specility：More Copper, Low Wearing Rate
• Transport Package：Carton+Pallet
• Specification：GB,T 5764-1998
• Trademark：Fricwel
• Origin：China
• HS Code：8708931
• Production Capacity：400, 000 PCS,Month

Basic Info.

Model NO. FW-029 Working Mode Power Combining Working State No linkage Voltage 0 Electromagnetic Clutch 0 Specility More Copper, Low Wearing Rate Transport Package Carton+Pallet Specification GB/T 5764-1998 Trademark Fricwel Origin China HS Code 8708931 Production Capacity 400, 000 PCS/Month

Product Description

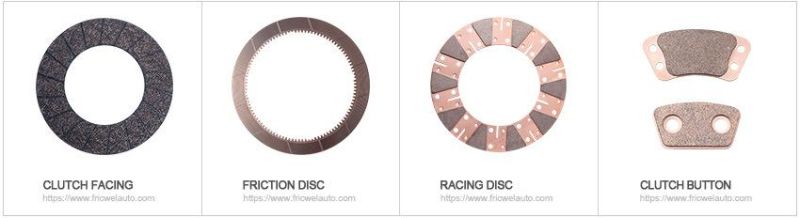

Related Products:

General Standard for Non-Asbestos Clutches:

1	Wear and friction property	Following GB/T 5764-2011 national standard
2	Friction coefficient	0.45-0.55(average)
3	Wearing rate	0.09-0.15(average)
4	Theoretical density	2.0 g/cm3,
5	actual density of our products	1.87 g/cm3(average)
6	Hardness of our product	HRL 50.
7	Burst strength:	Φ 200X130X3.5mm over 14000r/Min
8	Bend test	Over 40 N/mm2

Characteristic Advantage:
    1.  Wear-resistant and skid-resistant,  suitable for the heavy duty trucks, excellent quality .

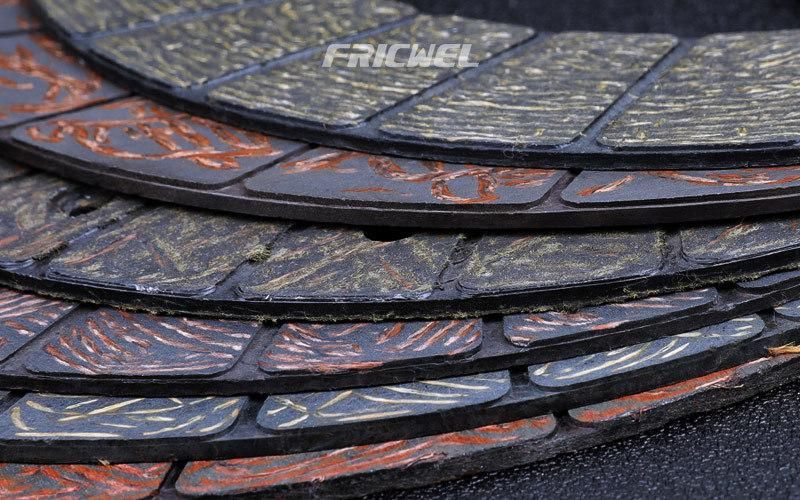

    2. the materials include glass fiber, copper wire covered yarn, high copper, aramid fiber, strong twisting yarn, appearance following Raybestos and Sachs etc.
    3.Available options clutch facing toolings diameters from 160mm to 440mm Various sizes.
    4. The monthly production capacity reached 400,000 pieces and the delivery period was short.
    5.The products are sold to more than 50 countries such as Africa, India, South America, Europe and the United States.

Dimensions And Specifications:

No.	O.D*I.D (MM*MM)	Thickness (MM)	Grooves	No.	O.D*I.D (MM*MM)	Thickness (MM)	Grooves
1	141*82	3.2-5.0	NO	21	260*167/170	3.2-5.0	18/27/30
2	145*105	3.2-5.0	NO	22	270*165/170	3.2-5.0	18
3	150*110	3.2-5.0	16	23	275*170/175/180	3.2-5.0	18/24/24*3
4	160*110	3.2-5.0	16-18	24	280*165/170	3.2-5.0	18/24
5	165*90	3.2-5.0	18	25	295*170/175/180	3.2-5.0	NO/18
6	170*110/120	3.2-5.0	16-18	26	300*165/180/190	3.2-5.0	16/18/200
7	178*100	3.2-5.0	6	27	302*165/190/197	3.2-5.0	NO/18/24
8	180*100/125	3.2-5.0	16-18	28	310*175/180/190	3.2-5.0	NO/18/20
9	186*126	3.2-5.0	18	29	325*180/185/190/200/210	3.2-5.0	NO/18/20
10	190*132/135	3.2-5.0	NO/16-24	30	330*185	3.2-5.0	12
11	200*130/135/140	3.2-5.0	NO/24/16*2	31	340*175	3.2-5.0	18
12	202*145	3.2-5.0	24	32	350*187/195/200/216/220	3.2-5.0	6/16/18/24
13	210*134/135/141	3.2-5.0	NO/24	33	352*216/217	3.2-5.0	22
14	215*130/140/145/155	3.2-5.0	NO/16/24/27	34	380*200 sector	4.1/4.4	92°
15	225*130/140/150/155	3.2-5.0	NO/18/2416*2	35	380*190/200/206/240/250	3.2-5.0	NO/16/18/24
16	228*150/155	3.2-5.0	NO/16/24	36	400*220/2308247/249/250	3.2-5.0	NO/13/18/24
17	236*150	3.2-5.0	24*2/18	37	410*250/260	3.2-5.0	18
18	240*150/152/160/185	3.2-5.0	NO/18/24	38	420*220	3.2-5.0/3.6/4.6	24/106°/92°
19	250*155/160/165	3.2-5.0	NO/24/27	39	430*230/240/250/261	3.2-5.0	NO/18/24
20	254*150/155	3.2-5.0	6*2/18/24	40	440*280	3.2-5.0	18

If you want to know more about product sizes and other related information, please contact us.

FW-648 Kevlar fiber (Aramid fiber) clutch facing.

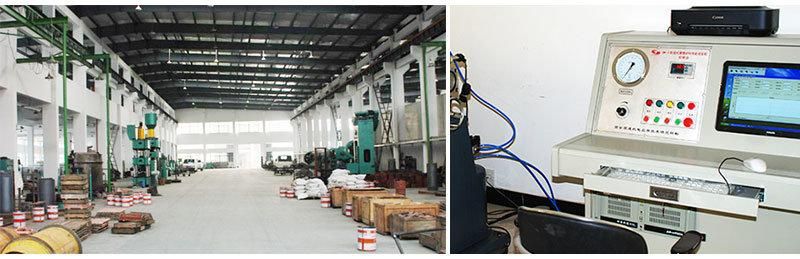

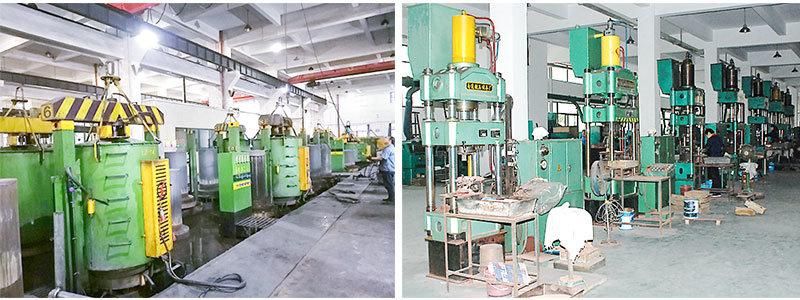

Production Environment:

Company Profile:
Founded in 1992, our factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. Our main business is the production and sales of auto parts products, such as clutch facings, copper clutch buttons, friction disc and related accessories. We are also one of the earliest friction material manufacturers in China.
Our factory has passed ISO9001 quality system certification. And we have various advanced lathes and processing equipments, as well as various engineering testing instruments,reaching the leading level in the domestic industry. Our products are exported to all over the world and well received by customers.

Why Choose Us?
1. Focus on friction materials production for more than 20 years.
2. Strict quality control system and professional inspection, OEM service avaliable.
3. One year quality gurantee since the date of delivery.
4. The product has passed CE, ISO and TS16949 certificates.
5. Professional online service team, quick response for customer message and question.
6. Sales markets covers North America, South Aemica, Europe,Asia, Middle east and Africa.
