• Model NO.：ZBJZ-1
• Tread：1820mm
• Grade：Heavy Duty
• Independent Suspension Type：Trailing Arm Type
• Shape：Flatbed
• Self-Dumping：Not Self-Dumping
• ABS Anti-Lock Braking System：ABS Anti-Lock Braking System
• Load Capacity：16t
• Wheel Base：1840
• Tire Number：6
• Transport Package：Pallet
• Specification：13ton
• Origin：Shan Dong China
• HS Code：8708508100
• Production Capacity：10000 Set,Sets , Month

Basic Info.

Model NO. ZBJZ-1 Tread 1820mm Grade Heavy Duty Independent Suspension Type Trailing Arm Type Shape Flatbed Self-Dumping Not Self-Dumping ABS Anti-Lock Braking System ABS Anti-Lock Braking System Load Capacity 16t Wheel Base 1840 Tire Number 6 Transport Package Pallet Specification 13ton Origin Shan Dong China HS Code 8708508100 Production Capacity 10000 Set/Sets / Month

Product Description

Product Description

Hot Sale Kaima Type Outboard Trailer Axle



Axle model	JZ16GNS1	JZ16GNS2	JZ16GNS3	JZ16GNS4	JZ18GNS1	JZ18GNS2
Rated loading capacity (kg)	16000	16000	16000	16000	18000	18000
Bearing	32314/32222	32314/32222	32314/32222	32314/32222	32314/32222	32314/32222
Wheel track (mm)	1840	1850	1850	1860	1850	1860
Brake size	Φ420×200	Φ420×200	Φ420×220	Φ420×220	Φ420×220	Φ420×220
Center distance of brake chamber (mm)	347	357	337	347	337	347
Wheel fixing (P.C.D.×H)	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281	Φ335×Φ281
Wheel bolt	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO	10-M22×1.5 ISO
Axle tube (mm)	150	150	150	150	150	150
Weight (kg)	405	410	415	420	430	432
Recommended wheel	>=8.50V-20	>=8.50V-20	>=8.50V-20	>=8.50V-20	>=8.50V-20	>=8.50V-20
Max. length (mm)	≈2165	≈2262	≈2262	≈2272	≈2262	≈2272

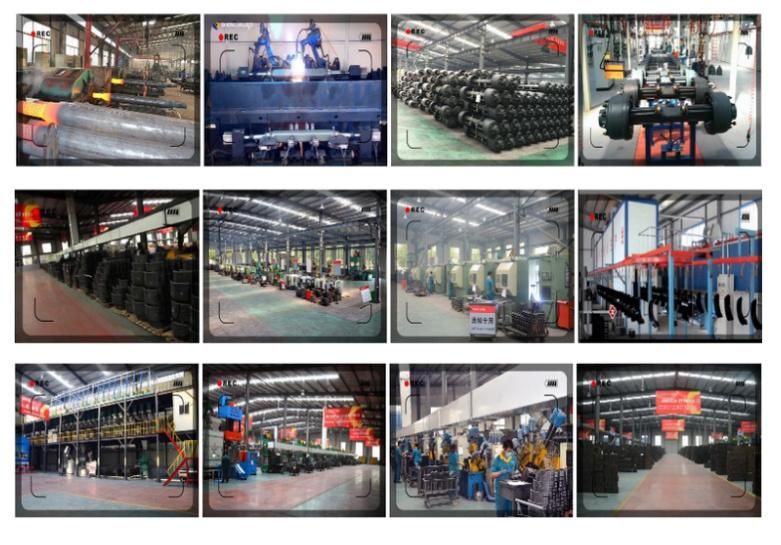

Our factory

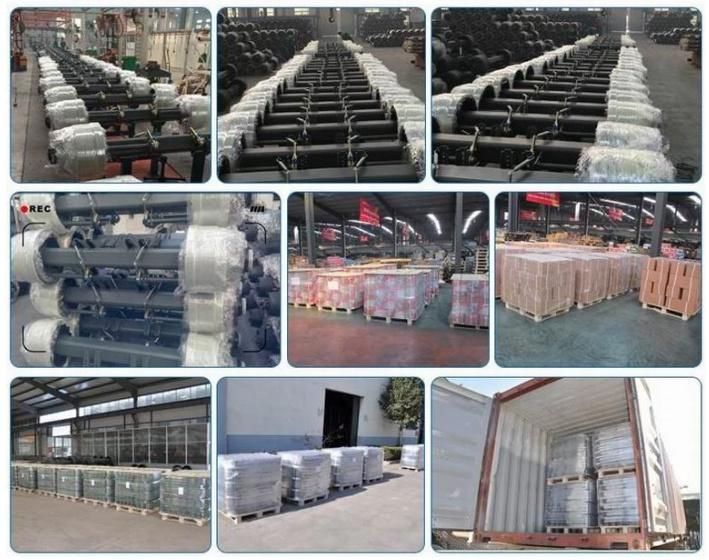

Loading

Fair&Certifictae
