Trailer Axles with Suspension Independent Suspension System

Shandong TOT Trading Co., Ltd.
  • After-sales Service：365days
  • Warranty：365days
  • Material：Stainless Steel
  • Certification：ISO,TS16949
  • Car Make：Chom
  • Position：Rear

Base Info

  • Model NO.：CHOM-035
  • OEM：Yes
  • Type：Axial Joint
  • Transport Package：Wooden Box
  • Specification：1180~1320mm
  • Trademark：CHOM
  • Origin：Quanpu Town, Liangshan County, Jining City, Shando
  • Production Capacity：200 Piece,Pieces Per Week

Description

      Quick DetailsUse:Trailer Parts                            Parts:Trailer Suspension                            OE NO.:OEM Service provided

Max Payload:16T*3                       Size:1180~1320mm                                    Place of Origin:Shandong, China

Brand Name:CHOM                      Product Name:Trailer axles with suspension independent suspension system

Keyword:American Type Suspension               Material:Steel                           Surface:Color Painted

Usage:Trailer Suspension Casting Parts          Finish:Painting                         Item:Wheel Trailer Suspension

Weight:16T*3                                                    Color:black                               Height:1180~1320mmSupply AbilitySupply Ability:200 Piece/Pieces per Week

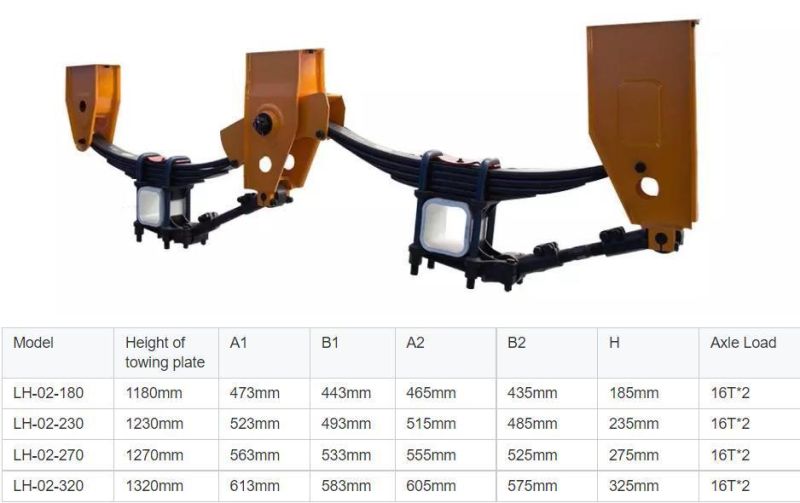

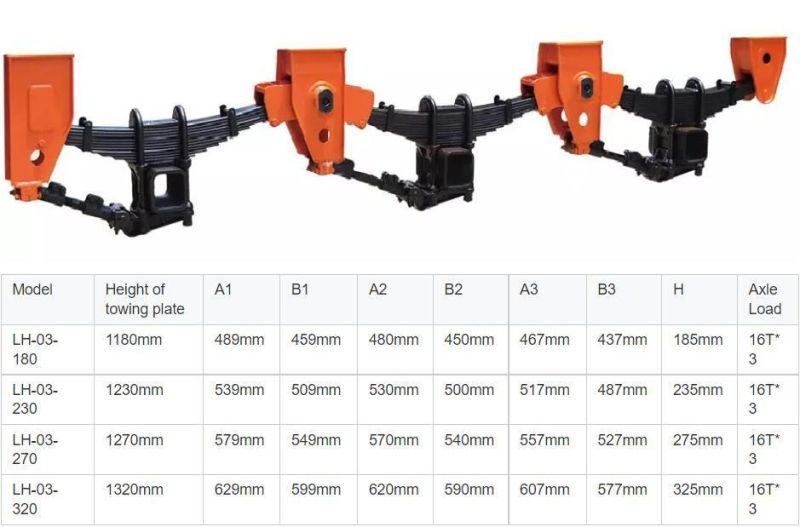

Trailer Axles with Suspension Independent Suspension SystemTrailer Axles with Suspension Independent Suspension System

NOTE1. Suspension axle space: 1300,1310,1350,1360mm.
2.Height from center of equalizer pin to top bracket: 115-355mm.
3.Height od trailer towing plate: 1180mm,1210mm,1230mm,1250mm.
4.Various suspension: 1axle suspension, 2axle suspension, 3axle suspension.
5.Leaf spring: 8leaf, 9leaf, 10leaf, 12leaf the quantity is optional.
6.Leaf spring width: 90mm, 120mm.
7.Equalizer pin:50, 60, 70, 80mm.
8.Equalizer bush: bronze/mixed material.
9.Hangers: material Q235; thinkness 6,8mm for option.
10. Equalizer: thinkness 10mm, 12mm for option.
11.Torque arm pin: 28mm, 36mm.
12.Torque arm bushing: rubber/ iron/ nylon.
13.Txle seat, cover plate: casting steel.
