• Model NO.：WVA 29174
• Main Market：South America, Southeast Asia, Africa, Western Europe, Central America, South Asia, Domestic Market
• Color：Black
• Transport Package：Box+Pallet
• Specification：GB,T 5764-1998
• Trademark：Fricwel
• Origin：China
• HS Code：8708301000
• Production Capacity：300, 000 PCS,Month

Basic Info.

Model NO. WVA 29174 Main Market South America, Southeast Asia, Africa, Western Europe, Central America, South Asia, Domestic Market Color Black Transport Package Box+Pallet Specification GB/T 5764-1998 Trademark Fricwel Origin China HS Code 8708301000 Production Capacity 300, 000 PCS/Month

Product Description

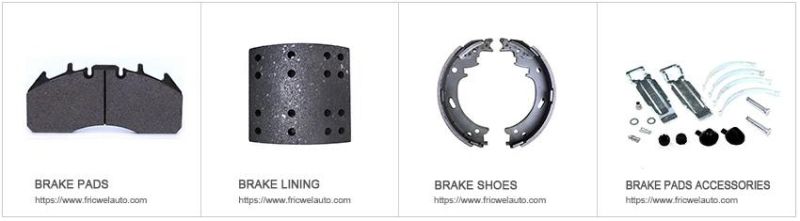

Related Products Of The Company:

Products Performance And Advantage:
Brake pads regular materials including non-asbestos, semi-metal, ceramic and NAO formula,
Product performance test results as follows:
1. Material friction coefficient: 100-250 ºC: 0.38-0.50; 300-350ºC:0.34-0.26;
2.Wearing rate: 100-350 ºC:0.13-0.18 (10-7 cm3/N M)
3. Density 3.0 g/cm3, Brake pads hardness 91.4-95.0 HRR;.
4. With holes, without holes and with steel web steel back plate types available.
5. High quality imported friction materials, excellent fade property at 350ºC.

Advantage:
1. Better wear resistance effect, 5% higher coefficient than regular brake pads products.
2. Cost-effective and durable, 8-10% longer life than normal products.
3. Comfortable hardness, no hurting the brake disc.
4. 10-15% stronger than regular brake pads products.
5. Less noise and lower dust, making brake disc more cleaner and better finishing.

Dimensions And Specifications:

NO.	WVA NO.	Thickness	AUTO	WIDTH	HEIGHT	Thickness
1	29001	20	Iveco, Daily 59.12/ 59.12 Turbo	174.4	69.3	20
2	29011	25	Iveco, EuroStar/Eurotech	240.5	124.8	25
3	29017/ 29024/ 29029	23	Avia, A60,A75, D60,D75,D80,D95	190.8	86.85	23
4	29030 / 29083 /29113	28	Renault, Series AE Magnun, Series G, Premium, MB	249.6	118.5	28
5	29039 / 29033/ 29302	22	Volvo, FL6.12/13/14	175.5	78	22
6	29043	24	Dennis, Renault	203.6	95.5	24
7	29053 / 29084	30.2	Kassbohrer, MAN, Renault	249.6	118.5	30.2
8	29060 /29087 /29109	30	MERCEDES ACTROS,  BPW, Kasbohrer,  Iveco	247.6	107.6	30
9	29065 / 29835	21.5	Iveco, 65/79, Eurocargo 60E/65E/75E	174.8	85.5	21.7
10	29067	22	Iveco, Renault,lucas	175.5	78	22
11	29077	27	DAF	204.5	106	26.85
12	29088 / 29091	26	Man, M2000	175.3	86.15	26
13	29093 / 29095	28	Man,Bova,	210.3	92.45	28
14	29095 /29096/ 29184	30	MAN seria M2000	210.3	92.45	30
15	29099  29100	25	Renault, Nissan	213.75	111.75	25.25
16	29108/ 29087/ 29179	30	Iveco,Scania,Man,Mercedes benz	247.6	107.6	30
17	29122  29127	22	Iveco, 29L, 35S, 35C, 50C	174.6	85.4	22
18	29124	27	Meritor,Benz,Rubery,Owen Rockwell	205.4	102	27.4
19	29126  29159	30	MERCEDES  BENZ	210.2	92.3	30
20	29167	30	Mercdes benz,Renault,Daf	247.2	109.5	30
21	29747	32	Bova, DAF, Kassbohrer, Neoplan	139	121	31.5

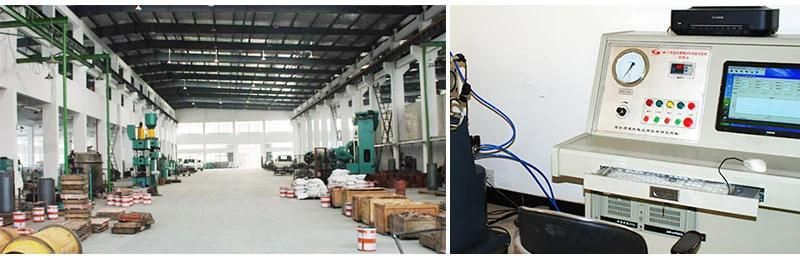

Production Scenario:

Company Profile:
Founded in 1992, our factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. Our main business is the production
and sales of auto parts products, such as clutch facings, copper clutch buttons, friction disc and related accessories. We are also one of the earliest friction
material manufacturers in China.
Our factory has passed ISO9001 quality system certification. And we have various advanced lathes and processing equipments, as well as various engineering
testing instruments,reaching the leading level in the domestic industry. Our products are exported to all over the world and well received by customers.

Why Choose Us?
1. Focus on friction materials production for more than 20 years.
2. Strict quality control system and professional inspection, OEM service avaliable.
3. One year quality gurantee since the date of delivery.
4. The product has passed CE, ISO and TS16949 certificates.
5. Professional online service team, quick response for customer message and question.
6. Sales markets covers North America, South Aemica, Europe,Asia, Middle east and Africa.
