Base Info
- Model NO.：8-40-101
Description
Basic Info.
Model NO. 8-40-101Product Description

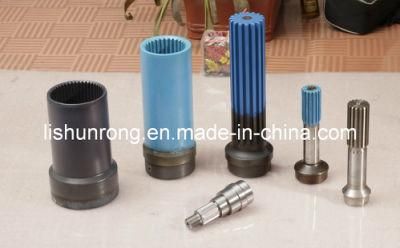

Our company prodcue all the American tube yoke, flange yoke, weld yoke, center yoke, spline yoke, sip yoke, spline shaft and etc. so if you have interest for these parts, please feel free contact us, thank you very much advance!!!| Standard Part # | Series | Spline | Spline Length | Tube Size | ( R )Hub Diameter | ( K )End of Spline to Point of Weld |
| 2-40-1711 | 1280 | 1.38"-16 | 2.25" | 2.50" x .083"W | 2.34" | 6.34" |
| 2-40-1711 | 1310 | 1.38"-16 | 2.25" | 2.50" x .083"W | 2.34" | 6.34" |
| 3-40-1611 | 1350 | 1.50"-16 | 2.50" | 3" x .083"W | 2.84" | 7.25" |
| 3-40-1531 | 1410 | 1.50"-16 | 3" | 3.50" x .083"W | 3.34" | 6.56" |
| 3-40-1491 | 1410 | 1.50"-16 | 3" | 3.50" x .083"W | 3.34" | 7.53" |
| 3-40-1711 | 1410 | 1.56"-16 | 5" | 3" x .083"W | 2.84" | 13.41" |
| 3-40-1551 | 1480 | 1.56"-16 | 3" | 4" x .083"W | 3.84" | 8.94" |
| 3-40-1571 | 1480 | 1.56"-16 | 3" | 3.50" x .083"W | 3.34" | 6.75" |
| 3-40-1391 | 1480 | 1.56"-16 | 3" | 3.50" x .083"W | 3.34" | 8.75" |
| 4-40-721 | 1550 | 1.75"-16 | 3" | 3.50" x .095"W | 3.32" | 9.22" |
| 4-40-761 | 1550 | 1.75"-16 | 3" | 3.50" x .095"W | 3.32" | 6.78" |
| 5-40-1011 | 1610 | 2"-16 | 3.50" | 3.50" x .134"W | 3.24" | 9.69" |
| 5-40-1041 | 1610 | 2"-16 | 3.50" | 3.50" x .134"W | 3.24" | 10.19" |
| 5-40-1191 | 1610 | 2"-16 | 3.50" | 3.50" x .134"W | 3.24" | 7.56" |
| 5-40-1051 | 1610 | 2"-16 | 3.50" | 4" x .134"W | 3.74" | 9.84" |
| 6-40-521 | 1710 | 2.50"-16 | 4" | 4" x .134"W | 3.74" | 10.56" |
| 6-40-521 | 1710 | 2.50"-16 | 4" | 4.09" x .180"W | 3.74" | 10.56" |
| 6-40-541 | 1710 | 2.50"-16 | 4" | 4" x .134"W | 3.74" | 9.25" |
| 6-40-541 | 1710 | 2.50"-16 | 4" | 4.09" x .180"W | 3.74" | 9.25" |
| 6-40-621 | 1710 | 2.50"-16 | 4" | 4.50" x .134"W | 4.24" | 10.65" |
| 6-40-631 | 1710 | 2.50"-16 | 4" | 4.50" x .134"W | 4.24" | 9.50" |
| 6-40-711 | 1710 | 2.50"-16 | 4" | 4" x .134"W | 3.74" | 8.44" |
| 6-40-541 | 1760 | 2.50"-16 | 4" | 4.06" x .165"W | 3.74" | 9.25" |
| 6.5-40-191 | 1810 | 3"-16 | 4.50" | 4.50" x .134"W | 4.24" | 11.25" |
| 6.5-40-201 | 1810 | 3"-16 | 4.50" | 4.50" x .134"W | 4.24" | 9.47" |
| 8-40-91 | 1810 | 3"-16 | 4.50" | 4.50" x .259"W | 4" | 9.91" |
| 8-40-101 | 1810 | 3"-16 | 4.50" | 4.50" x .259"W | 4" | 11.53" |
| 8-40-91 | 1880 | 3"-16 | 4.50" | 4.50" x .259"W | 4" | 9.90" |
| 8-40-101 | 1880 | 3"-16 | 4.50" | 4.50" x .259"W | 4" | 11.53" |
| 9-42-311 | 1950 | 4.167"-24 Inv. | 6.50" | 5.25" x ,375"W | 4.50" | 13.47" |
| 9-42-421 | 1950 | 4.167"-24 Inv. | 6.50" | 6" x .500"W | 5.15" | 13.47" |
| 9-42-281 | 2050 | 5.835"-34 Inv. | 9.50" | 8"x .375"W | 7.38" | 14.50" |
| 9-42-351 | 2050 | 5.835"-34 Inv. | 9.50" | 8"x .375"W | 7.38" | 16.60" |
| 9-42-301 | 2150 | 5.835"-34 Inv. | 12" | 9"x .625"W | 8" | 19.63" |
