Hot Sale Trailer Part Trailer American Type Axle 13t 16t
Zibo Jizhou Trading Co., Ltd.- Condition：New
- Axle Number：2
- Application：Trailer
- Certification：ISO, ECE, Gcc, Ce, ISO9001, DOT, CCC, ISO,Ts16949
- Material：Steel
- Type：Rear Axles
Base Info
- Model NO.：ZBJZ
- Tread：1820mm
- Grade：Heavy Duty
- Independent Suspension Type：Trailing Arm Type
- Shape：Flatbed
- Self-Dumping：Not Self-Dumping
- ABS Anti-Lock Braking System：ABS Anti-Lock Braking System
- Transport Package：Pallet
- Specification：13ton
- Origin：Shan Dong China
- HS Code：8708508100
- Production Capacity：10000 Set,Sets , Month
Description
Basic Info.
Model NO. ZBJZ Tread 1820mm Grade Heavy Duty Independent Suspension Type Trailing Arm Type Shape Flatbed Self-Dumping Not Self-Dumping ABS Anti-Lock Braking System ABS Anti-Lock Braking System Transport Package Pallet Specification 13ton Origin Shan Dong China HS Code 8708508100 Production Capacity 10000 Set/Sets / MonthProduct Description
Hot Sale Trailer Part Trailer American Type Axle 13t 16t
| Axle model | JZ16GNS1 | JZ16GNS2 | JZ16GNS3 | JZ16GNS4 | JZ18GNS1 | JZ18GNS2 |
| Rated loading capacity (kg) | 16000 | 16000 | 16000 | 16000 | 18000 | 18000 |
| Bearing | 32314/32222 | 32314/32222 | 32314/32222 | 32314/32222 | 32314/32222 | 32314/32222 |
| Wheel track (mm) | 1840 | 1850 | 1850 | 1860 | 1850 | 1860 |
| Brake size | Φ420×200 | Φ420×200 | Φ420×220 | Φ420×220 | Φ420×220 | Φ420×220 |
| Center distance of brake chamber (mm) | 347 | 357 | 337 | 347 | 337 | 347 |
| Wheel fixing (P.C.D.×H) | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 |
| Wheel bolt | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO |
| Axle tube (mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Weight (kg) | 405 | 410 | 415 | 420 | 430 | 432 |
| Recommended wheel | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 |
| Max. length (mm) | ≈2165 | ≈2262 | ≈2262 | ≈2272 | ≈2262 | ≈2272 |

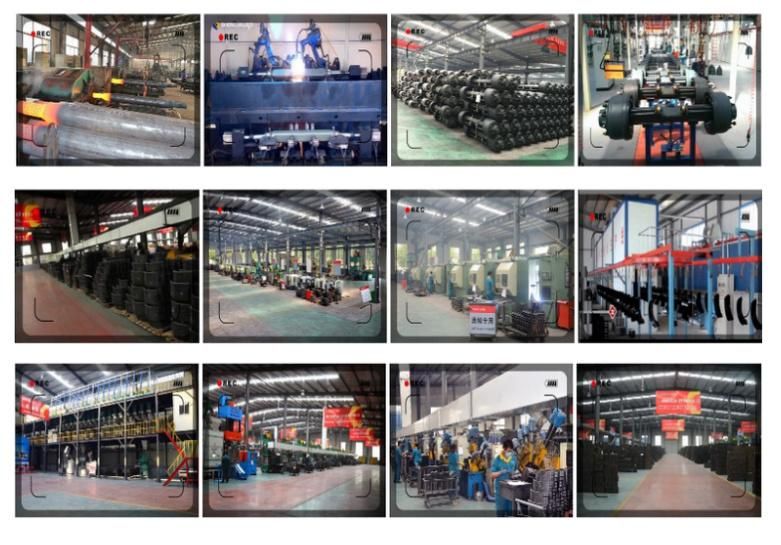

Our factory

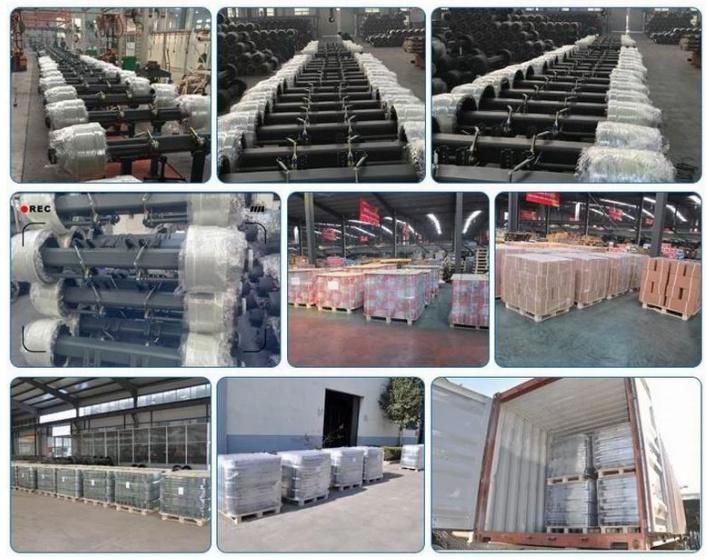

Loading
Fair&Certifictae
