High Quality Manifold Union Connector Tube Fitting for Push in Manifold Union Connector
Ningbo Yinzhou Wenice Machinery Parts Co., Ltd.- Type：Connector
- Material：Brass
- Position：Connector
- Certification：ISO9001
- Classification：Connector
- Drum Brakes Classification：Air Brake
Base Info
- Model NO.：1524M
- Main Market：South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
- Transport Package：CTN, Pallet
- Specification：1,4x1,8, 1,4x1,4, 1,4x3,8, 3,8x1,8
- Trademark：OEM
- Origin：Zhejiang Ningbo
- HS Code：7412209000
- Production Capacity：3, 000, 000 Pieces,Year
Description
Basic Info.
Model NO. 1524M Main Market South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market Transport Package CTN, Pallet Specification 1/4x1/8, 1/4x1/4, 1/4x3/8, 3/8x1/8 Trademark OEM Origin Zhejiang Ningbo HS Code 7412209000 Production Capacity 3, 000, 000 Pieces/YearProduct Description

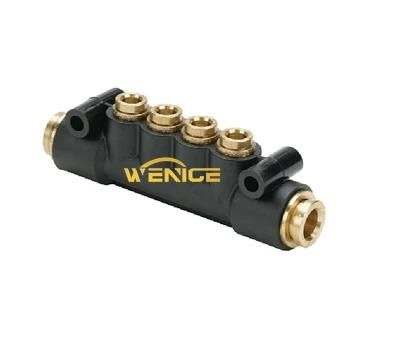

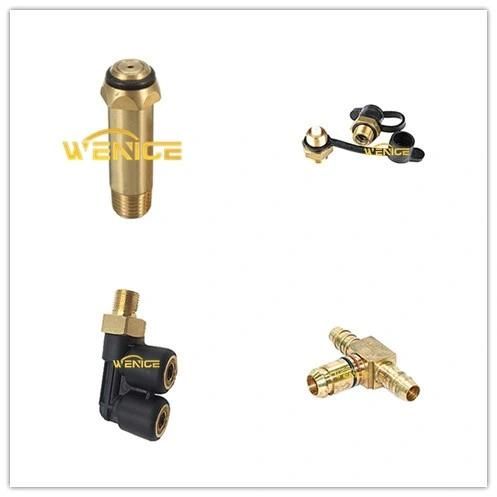

MANIFOLD UNION CONNECTOR TUBE FITTING
Push in Manifold Union Connector Tube 1524
Valve Series pneumatic manifold union one touch push in to connect fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required. Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow.
Operating Temperature 0 - 60 °C 32 to 140°F
Elbows Swivel (rotate 360°)
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene.
Material of Construction
Plastic Body PBT (Polybutylene terephthalate)
Metal Body Nickel Plated Brass
Air systems.
Pressure:
Working pressure from vacuum to 250 psi
Vibration:
Fair resistance.
Temperature Range:
Working temperature from -40° F to +200° F(Note:see tubing manufacturer's recommendations for pressure and temperature mutations)
Material:
CA 360 Brass for Barstock fittings.CA377 Brass for forged fittings.

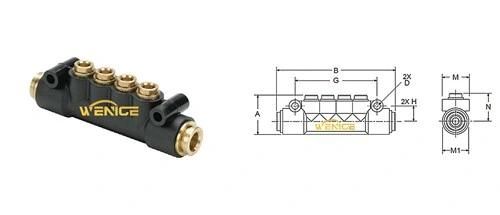

| PART# | TUBE O.D IN | TUBE O.D OUT | A | B | D | G | H | M | M1 | N |
| 1524M-DOT-4-4 | 1/4 | 1/4 | 1.33 | 3.98 | .21 | 2.75 | .53 | .90 | .88 | .89 |
| 1524M-DOT-6-4 | 3/8 | 1/4 | 1.33 | 4.00 | .21 | 2.75 | .53 | .90 | .88 | .89 |
| 1524M-DOT-6-6 | 3/8 | 3/8 | 1.65 | 6.49 | .22 | 4.55 | .60 | 1.02 | 1.02 | 1.33 |
| 1524M-DOT-8-8 | 1/2 | 1/2 | 1.65 | 6.49 | .22 | 4.55 | .60 | 1.02 | 1.02 | 1.33 |
