• Model NO.：Stockbridge Vibration Damper
• Specification：ISO9001: 2008
• Trademark：L&R or according to customer′s requirement
• Origin：Wenzhou, Zhejiang
• Production Capacity：10, 000PCS,Month

Basic Info.

Model NO. Stockbridge Vibration Damper Specification ISO9001: 2008 Trademark L&R or according to customer′s requirement Origin Wenzhou, Zhejiang Production Capacity 10, 000PCS/Month

Product Description

Quick details:
Origin: Zhejiang, China
Brand name: as clients'  requirements
item: Vibration Damper
Material: Galvanized Steel
Certification:RoHS, CCC, ISO, SGS
Packing:Wooden Case
Standard:CE, SGS, ISO900

Product Description

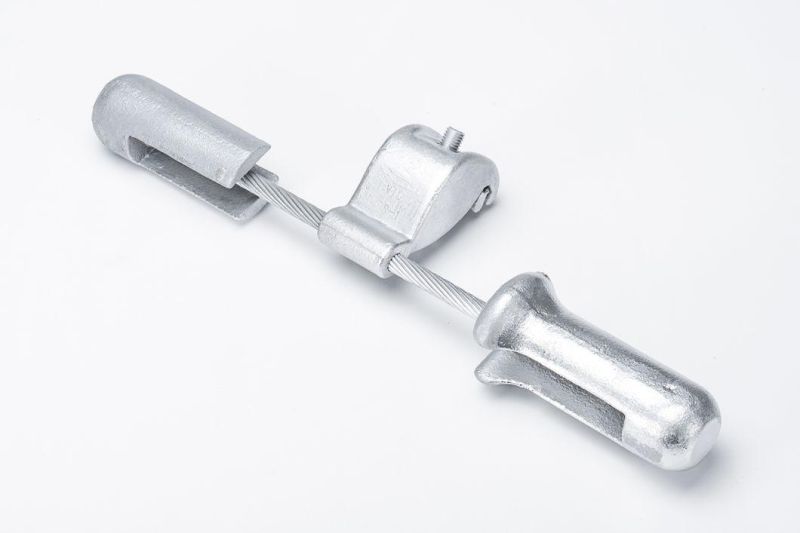

It is used to protect OPGW in wind. The clamp is made from aluminum alloy, the weights are made from hot dipping galvanized iron. The clamps are replaced when needed.

Model	Aluminum dimension(mm)	Suitable OD of conductors(mm)	Overall length(mm)	Length of clamp(mm)	Height of clamp(mm)	Messenge wire Diameter(mm)	Weight(kg)
4D20-14	14	12-14.0	330	52	62	7.5	1.4
4D20-16	16	13.3-16.0	330	52	63	7.5	1.4
4D20-18	18	15.0-18.0	330	52	65	7.5	1.4
4D30-20.3	20.3	16.5-20.3	383	52	73	9	2.5
4D30-23.4	23.4	19.5-23.4	383	52	72	9	2.5
4D30-27	27	22.5-27.0	383	52	70	9	2.5
4D40-27.6	27.6	24.5-27.6	542	66	98	11	4.7
4D40-30.5	30.5	27.0-30.5	542	66	96	11	4.7
4D40-34	34	29.5-34.0	542	66	94	11	4.7
4D50-36	36.0	32.3-36.0	595	66	104	13	5.3
4D50-39.3	39.3	35.3-39.3	595	66	101	13	5.3
4D50-43.0	43.0	38.4-43.0	595	66	100	13	5.3

Our Services

1. Rich experience in ODM  and OEM

2. Excellent One-stop service

3. High Quality Precision Customized forging & Casting services

4. The lowest price

5. Strict quality control

6 We can manufacture it according to customers requirements.
