12 Tons Trailer Air Suspension Overslung and Underslung with Lift Axle

Shandong UT Trailer Parts Co., Ltd.
  • Material：Steel
  • Certification：ISO9001
  • Car Make：Volkswagen, Benz, Toyota, Ford, Buick, Volvo
  • Position：Front
  • OEM：Yes
  • Type：Shock Absorber

Base Info

  • Model NO.：UT-HD 12T
  • Truck Model：Volkswagen, Benz, Hyundai, Honda, Toyota, Jeep, Ni
  • Applicable Type：Truck and Trailer
  • Design：Hendrickson, Watson Chalin, Ush, Raydan, Chalmers
  • Transport Package：Seaworthy Packing
  • Trademark：UT
  • Origin：China
  • Production Capacity：600PCS,Month

Description

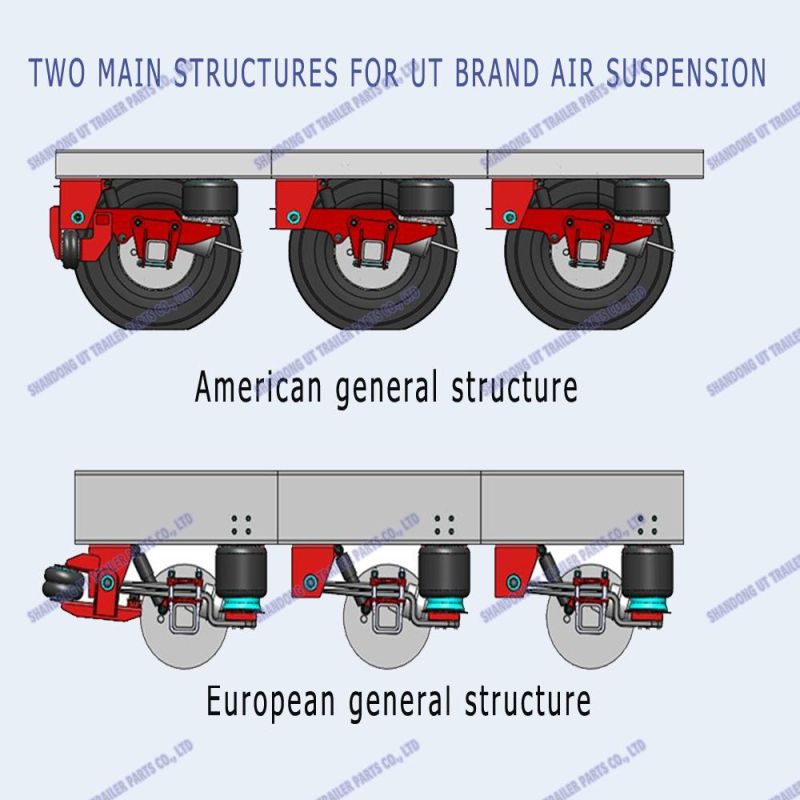

BrandUTSuitable truck brands FOTON, FAW, AUTOMAN, HOWO, MAN, VOLVO, SCANIA, MACK, NORTH BENZ etc.Suitable trailer typeFlatbed trailer, low-bed trailer, van semi-trailer, oil tanker trailer, van semi-trailer, skeleton trailer etcTypeBoth American type and Germany type
Top Mount/under slung
One bag, two bag, three bag and four bag are availableLoading capacity9000-20000 kgsRide height180-510mmApplicable axleRound beam and square beam, 127mm,133mm,146mm,150mmFactory pre-assembledacceptedCompact in designwholeBuyer's designacceptedPackageWooden case or as requestDeliveryAbout 20 working daysMOQ5 SETPaymentT/T or L/COthersAs request The features for this type air ride suspension:
  • • Maximum axle load: 12ton
    • Single leaf trailing arm: 100x59mm
    • Suitable for Ø127mm, Ø146mm, square 120mm and square 150mm drum and disc brake axles
    • Ride height range:
    - underslung: 200-370mm
    - Overslung: 385-575mm
    • Air spring: Ø350mm(13.5")
    • Air Spring offset options:
    30mm/ 50mm /95mm
    • Optional Bolt-On axle lift
  •
12 Tons Trailer Air Suspension Overslung and Underslung with Lift Axle

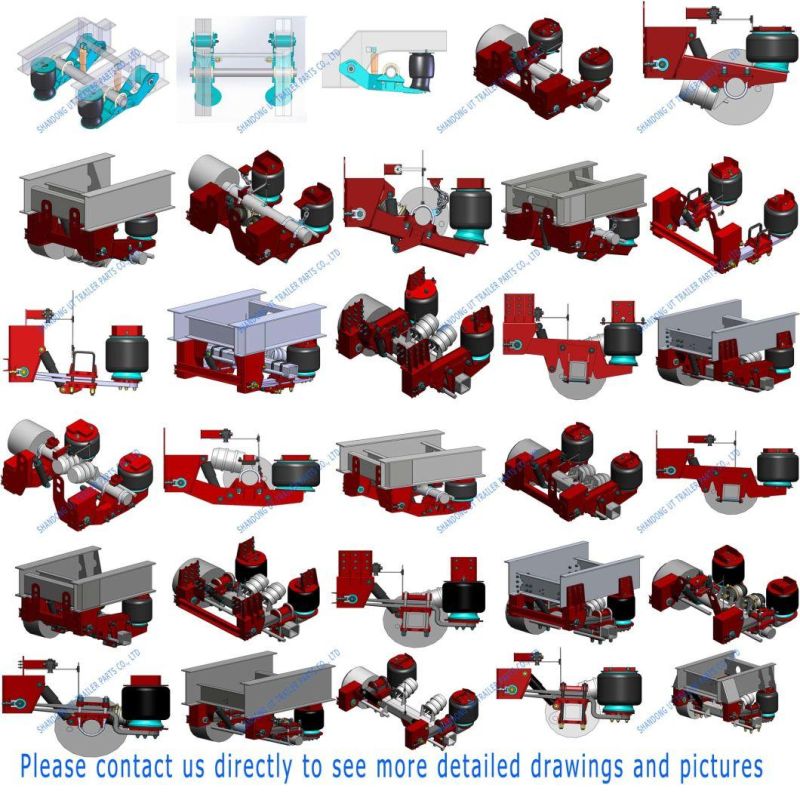

The following is some type of our air suspensions, we can design according with your trailer and truck.

12 Tons Trailer Air Suspension Overslung and Underslung with Lift Axle
