Brake Lining (WVA: 19495, BFMC: MP/32/2) for European Truck
Zhejiang Changda Automobile Part Making Co., Ltd.- Type：Brake Lining
- Material：Non-Asbestos
- Position：Front
- Certification：ISO,TS16949, AMECA, ECE, Greening, SABS Vc8053
- Classification：Drum
- Drum Brakes Classification：Brake Drum
Base Info
- Model NO.：19495
- Main Market：South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America
- Application：BPW, Cardi, Gigant, Saf
- Size：203.9*200*17,10.09
- Color：Shining Black
- Deliver Time：25-40days After Receving The Deposit
- Transport Package：Shrink Bag in Carton, Pallet
- Specification：ISO-9001, TS16949, FMVSS 121 23K FF, SABS VC8053
- Trademark：CHANGDA
- Origin：Zhejiang, China
- HS Code：87083010
- Production Capacity：500000PCS Per Month
Description
Basic Info.
Model NO. 19495 Main Market South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America Application BPW, Cardi, Gigant, Saf Size 203.9*200*17/10.09 Color Shining Black Deliver Time 25-40days After Receving The Deposit Transport Package Shrink Bag in Carton, Pallet Specification ISO-9001, TS16949, FMVSS 121 23K FF, SABS VC8053 Trademark CHANGDA Origin Zhejiang, China HS Code 87083010 Production Capacity 500000PCS Per MonthProduct Description
| Product Type: | Brake Linings |

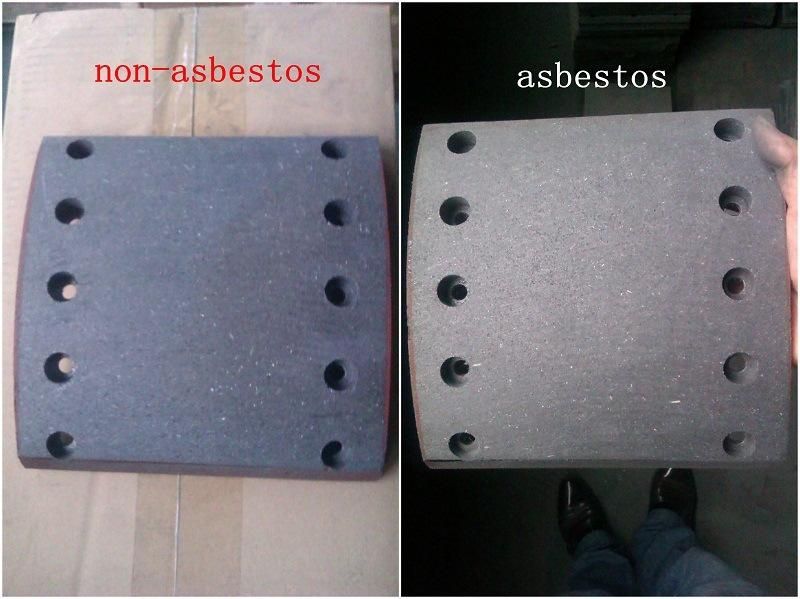

| Material: | Asbestos; Semi-metallic; Non-asbestos; Ceramic etc. |
| Model: | 19495 |
| specification: | Outer Arc:192mm Width:180mm Thickness:17/11.8mm |
| Material service life: | Asbestos: 30000 to 40000 kilometers Non asbestos: 70000 to 80000 kilometers Ceramic: 100000 kilometers up |
| Packing: | 4 pieces per shrink wrapped bag, 2 sets per inner box, two boxes per one export carton Can be packed as per your requirement. |
| Sample: | Free of charge |
| MOQ: | 2000 pcs |
| Delivery time: | 25 -40days for one container |
| Delivery port: | Ningbo Port |
| Production capacity: | 300000 pieces per month |
| Application | Man , Benz,Optare |
2. Featurers:
1) Good heat dissipation
2) Do not damage the drum
3) Low noise
4) High temperature resistant
5) Environment-friendly
3. Testing Result
| Inspection Item | Test Result |
| NormalTemperature Friction Coefficient(100-150ºC) | 0.42±0.02 |
| Hot Friction Coefficient(250ºC-300ºC) | 0.42±0.01 |
| Wear Rate(×10-7m3/Nm150ºC) | 0.26-0.53 |
| Density(g/cm3) | 2.22 |
| Impact Force(J/cm2) | 0.46 |
| Los's strength(HRM) | 51 |
| Shear strength in(MPa) | 20.52 |
| Compression strength(N/mm2) | 84.49 |
| Thermal Expansivity/% | 0.89 |
