DOT /ISO/CE Light Weight Rim Forged Aluminum Wheel /Alloy Rims /Polished Wheels for Heavy Duty Trucks 22.5X8.25 22.5X7.5 22.5X9.00 22.5X11.75 22.5X13.00 22.5X14

QingDao TP Range Int'L Co., Ltd.
  • Material：Aluminum
  • Type：Rim
  • Drive Wheel：FWD
  • Wheel Hub Diameter：21-24"
  • Finishing：Polished
  • Wheel Accessories：Wheel

Base Info

  • Model NO.：22.5X8.25 22.5X7.5 22.5X9.00 22.5x11.75 22.5x12.25
  • Certification：ISO, VIA, CE, TUV, DOT, SMS
  • Apply to：Truck ,Trailer ,Bus
  • Transport Package：Pallet,Carton
  • Specification：22.5
  • Trademark：CHINA
  • Origin：China
  • HS Code：8716900000
  • Production Capacity：100000PCS,Year

Description

difference between steel and alloy wheelsPoints Forged Aluminum WheelSteel WheelAluminum wheel Advantages 1. Weight ~24KGS~45KGShalf lighter than steel one 2. MaterialHigh strength forging alloySteel PlateHigher strength 3. Manufacturing methodRotary forging Stamping , Rolling,Welding Forged from whole blank wheel, no weld-joint 4. Circularity Numerical Control Rolling roundness 5. Dynamic balanceUniform Density smooth-ride in high speed 6. Heat radiationHigh density no bubble ,high conductivity for heat less conductivity for heat expand service life of tyres by 26% 7. Impact resistance test Almost zero demage damage seriouslyhigher safety 8. Rigidityrigid deformable protect tyres from eccentric wear 9. Compression resistance 73000KGS deformed 5CM 13600KGS deformed 5CM High intensity , 5.37times than steel ones 10. AppearancePolished , Fine and Smooth Murky grey , roughPolished , Fine and Smooth 11. Cost3-4times  than steel one low cost 3-4times  than steel one 12. Recycle 95% recycled  95% recycled 13. Environment protect Save 22.9Kg of Co2 per KG of aluminum  Save 22.9Kg of Co2 per KG of aluminum
DOT /ISO/CE Light Weight Rim Forged Aluminum Wheel /Alloy Rims /Polished Wheels for Heavy Duty Trucks 22.5X8.25 22.5X7.5 22.5X9.00 22.5X11.75 22.5X13.00 22.5X14

Forged Aluminum wheel Specifics
SIZE CBInsetOutset Stud Diameter PCDWeight (KGS)MAX LOAD (LBS)
22.5x7.5281.213816232.5335*1022.27800
22.5x7.522113816232.5R22285*824.17800
22.5x8.25220144.5167.526.75285.75*10227400
22.5x8.25221  32.5R22285.75*1022
22.5x8.25281.2  32335*1022
22.5x9.0022015217726.75285.75*10249090
22.5x9.00281.215217726.75335*10 249090
22.5x9.00281.215217732.5335*10 249090
22.5x11.75281.202226335*10 259915
22.5x11.75281.202226.75335*10 259915
22.5x11.75281.212014626335*10 259915
22.5x11.75281.212014626.75335*10 259915
22.5*1422102226.75285.75*10   34.7513440
17.5x6.0020212014126.75245x6
17.5x6.7520212014126.75245x614.22500KGS
19.5x7.520212014126.75245*6 13.882500KGS
24.5x8.25281.214516832.5335*1029.367900
24.5x8.2522014516826.75285.75*1029.67900
24.5x8.2522114516832.5R22285.75*1027.787900

DOT /ISO/CE Light Weight Rim Forged Aluminum Wheel /Alloy Rims /Polished Wheels for Heavy Duty Trucks 22.5X8.25 22.5X7.5 22.5X9.00 22.5X11.75 22.5X13.00 22.5X14

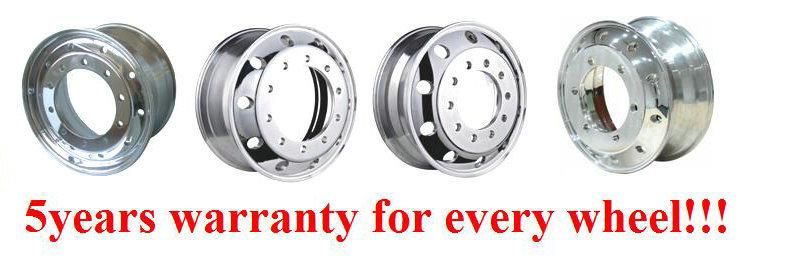

 5year-warranty  for all Forged aluminum wheel
