Afc Luftfahrwerk Ventil Block Pneumatik Air Ride Suspension Valve
Ningbo VPC Pneumatic Co., Ltd.- Material：Aluminum Alloy
- Certification：ISO10012, BSCI, GMP, GSV, ISO13485, OHSAS18001, ISO14001, ISO,TS16949, ISO9001
- Car Make：Volkswagen, WuLing, Benz, BMW, Hyundai, Honda, Toyota, Jeep, Nissan, Ford, Buick, Chery, Chevrolet, Cadillac, Geely, Roewe, Audi, Peugeot, Lexus, Volvo, Mazda, Kia
- Position：Rear
- OEM：Yes
- Type：Buffer for Suspension
Base Info
- Model NO.：vu4 vu2 vx4 VU-2F VU-4F VUX-4F
- Transport Package：Inner Box, Outer Carton...Pallet
- Specification：CE, ROHS, SGS
- Trademark：VPC Pneumatic
- Origin：China
- HS Code：8481804090
- Production Capacity：500000PCS,Month
Description

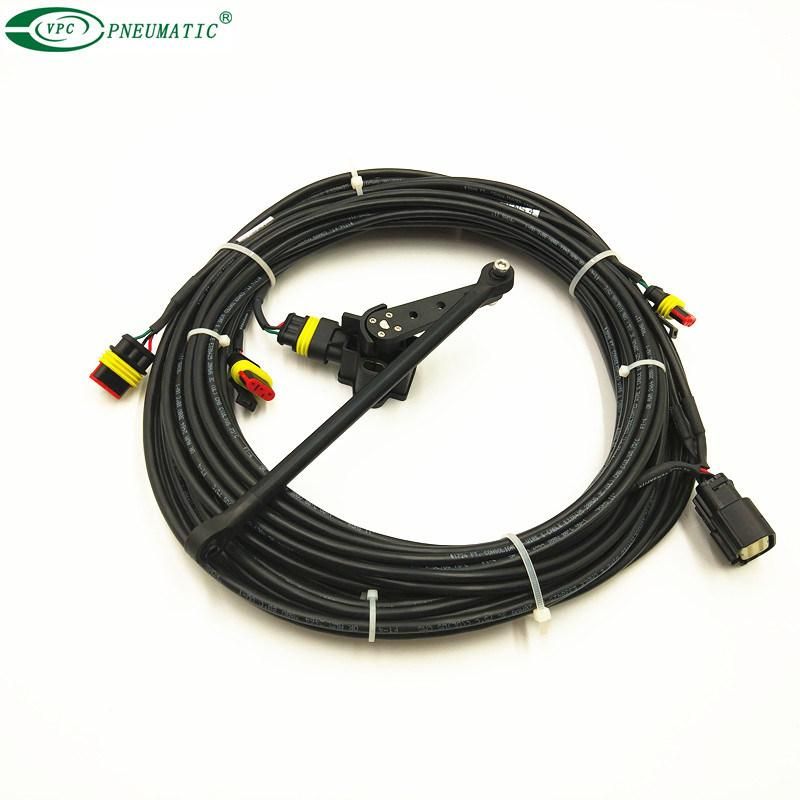

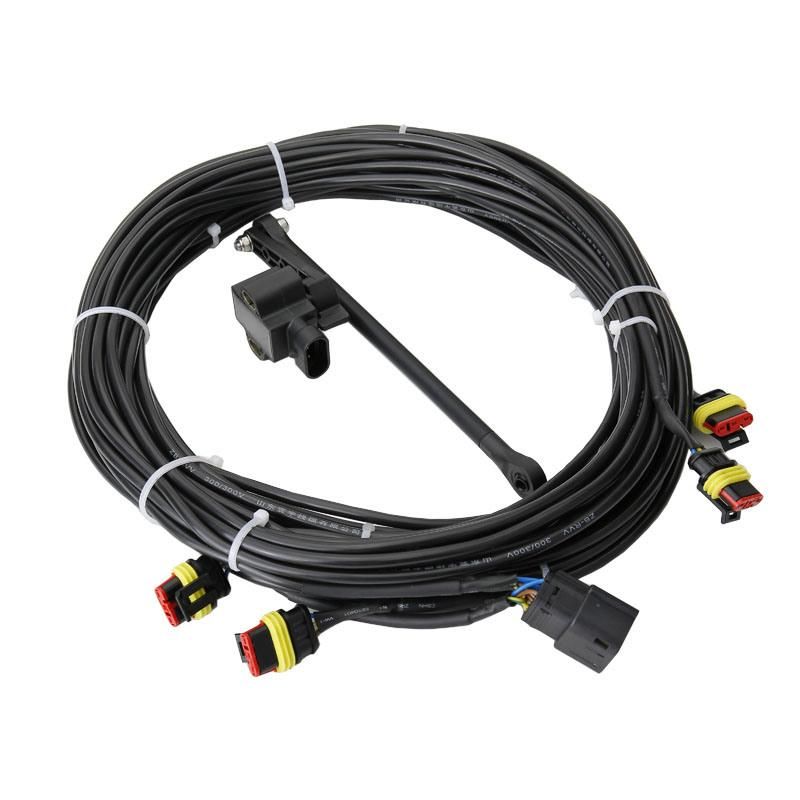

1. wiring harness for easy installation
2. 3/8" press-fit D.O.T Fittings eliminate pipe threads for 100% leak free operation
3. High Pressure Rated for operation up to 200psi
4. Anodized Aluminum Manifold to prevent corrosion
5. 100% weather resistant for harsh under vehicle environments
6. For use with any brand of controller or switches

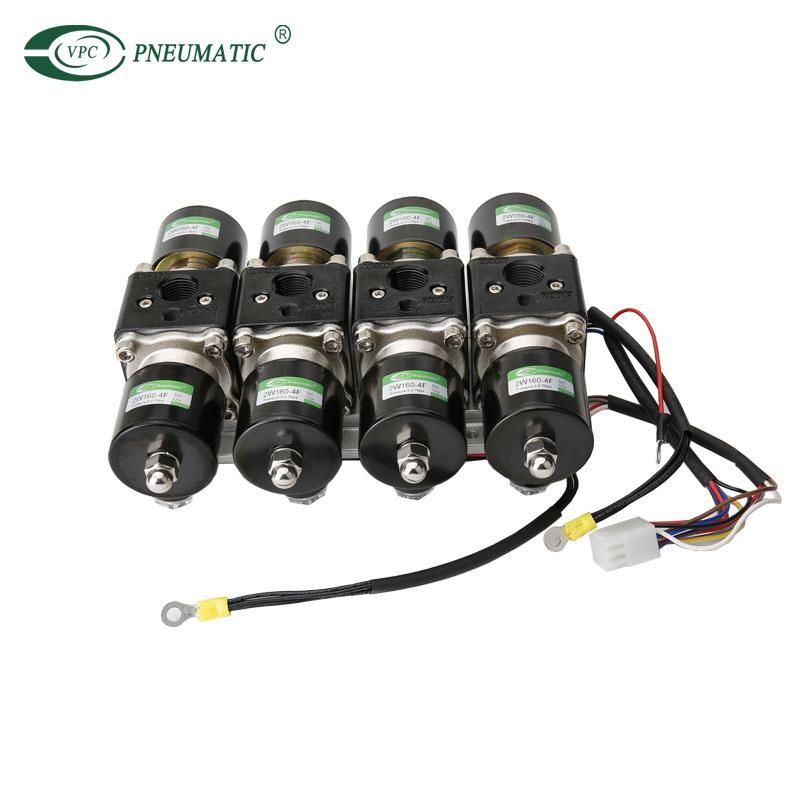

new 4 Valve Air Suspension Valve Block.
5W continuous duty coils with a total amp draw of less than 1.7 amps for all 4.
12 volt
3mm oriface direct acting style
150 psi rated with 40% pressure differentia

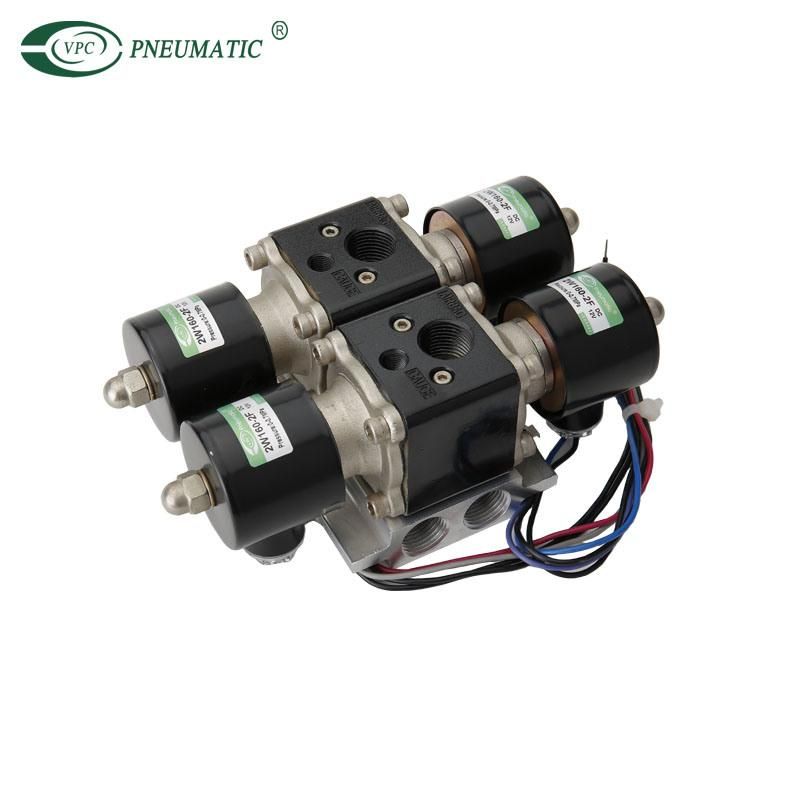

Two 3/8"npt Direct Action Air Valve Manifold
DIRECT ACTION MEANS THERE IS NO DIAPHRAGM OR O-RINGS TO WEAR OUT
4-Position
30psi Minimum Working Pressure
350psi Maximum Pressure
3/8"npt Inlet and Outlet
9.5mm Internal Orifice
1/4"npt Gauge Port
CV Rating 4.0
12-Volt
