Cardan Shaft Drive Shaft with Universal Joint Propeller Shaft

Jingjiang Huading Machinery Manufacturing Co., Ltd.
  • Condition：New
  • Color：as Required
  • Certification：ISO
  • Type：Universal Joint
  • Material：Carbon Steel or as Required
  • Size：Standard Size

Base Info

  • Model NO.：SWC-CH
  • Application：Tractors, Trucks and Agricultural Use
  • Dimension：Minimum Overall Length: 600-1800mm or 27"-60"
  • Journal Surface Roughness：0.25-0.63μm
  • Length Compensation：Telescoped
  • Mounting：Flange or as Per Required
  • Body Material：Carbon Steel or as Required
  • Appearance Shape：Round
  • Transport Package：Wooden Box
  • Specification：as your requirement
  • Trademark：Huading
  • Origin：China
  • HS Code：8483600090
  • Production Capacity：100000pieces,Year

Description

Overview

Product Description


SWC CH Cardan Shaft(JB/T5513-91)
Cardan shaft is widely used in rolling mill, punch, straightener, crusher, ship drive,paper making equipment, common machinery, water pump equipment,test bench and other mechanical applications.

Cardan Shaft Drive Shaft with Universal Joint Propeller Shaft


Product Parameters

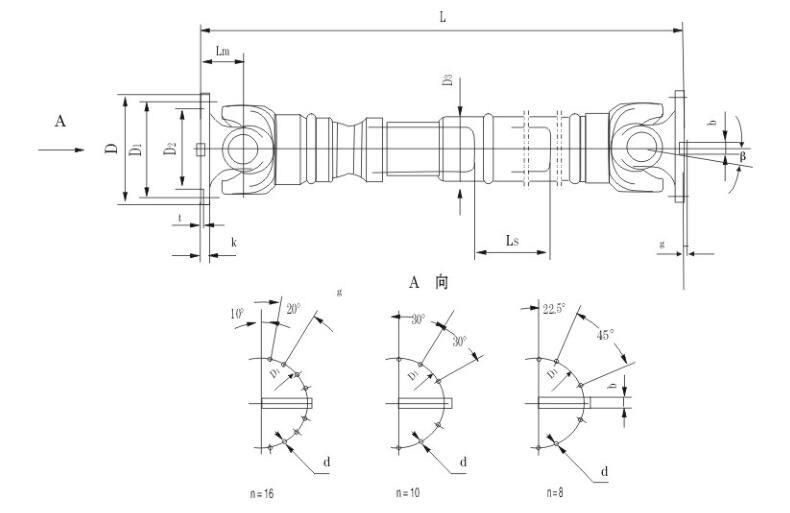

♦SWC CH Cardan Shaft Basic Parameter And Main Dimension(JB/T5513-1991)
ModelTactical diameter
D
mmNominal torque
Tn
kN·mFatique
torque
Tf
kN·mAxis rotation
β
(°)Stretch
length
LS
mmLminSize
mmRotary inertia
kg.m2Weight
kgD1
js11D2
H7D3Lmn-dkt
b
h9g
Lmin
 Increase
100mmLminIncrease
100mmSWC180CH11802010≤252009251551051141108-171752470.1810.0070742.8SWC180CH270014250.216104SWC200CH12003216≤15807201701201271358-1719528160.2760.0130763.6SWC200CH2506900.26174SWC225CH12254020≤15857101961351521208-17205329.00.4150.0234954.9SWC225CH2706400.39792SWC250CH12506331.5≤151007952181501681408-192564012.50.9000.02771485.3SWC250CH2707350.885136SWC285CH12859045≤151209502451701941608-212774015.01.8260.05102296.3SWC285CH2808801.801221SWC315CH131512563≤15130107028018521918010-233284015.03.3310.07953468.0SWC315CH2909803.163334SWC350CH135018090≤15140117031021026719410-233585016.06.2150.221950815.0SWC350CH29010705.824485SWC390CH1390250125≤15150130034523526721510-254087018.011.1250.221965515.0SWC390CH290120010.763600SWC440CH1440355180≤15400211039025532526016-284210802022.5400.4744131221.7SWC440CH2800251024.4301537SWC490CH1490500250≤15400222043527532527016-3147129022.533.9700.4744155421.7SWC490CH2800262035.8701779SWC550CH1550710355≤15500258549232042630516-31501210022.572.7901.3570258534.0SWC550CH21000308579.5703045·Notice:1.Tf-Torque allowed by fatigue strength under varible load
2.Lmin-Minimum length after shortening
3.L-Installation length as required
