• Model NO.：SWC-CH
• Type：Universal Joint
• Material：Carbon Steel or as Required
• Size：Standard Size
• Application：Tractors, Trucks and Agricultural Use
• Dimension：Minimum Overall Length: 600-1800mm or 27"-60"
• Journal Surface Roughness：0.25-0.63μm
• Length Compensation：Telescoped
• Mounting：Flange or as Per Required
• Body Material：Carbon Steel or as Required
• Appearance Shape：Round
• Delivery Time：Depend on Your Quantity
• Transport Package：Wooden Box
• Specification：as your requirement
• Trademark：Huading
• Origin：China
• HS Code：8483600090
• Production Capacity：100000pieces,Year
• Package size per unit product：350.00cm * 400.00cm * 320.00cm
• Gross weight per unit product：40.000kg

Overview

Product Description

SWC CH Cardan Shaft(JB/T5513-91)
Cardan shaft is widely used in rolling mill, punch, straightener, crusher, ship drive,paper making equipment, common machinery, water pump equipment,test bench and other mechanical applications.




Product Parameters

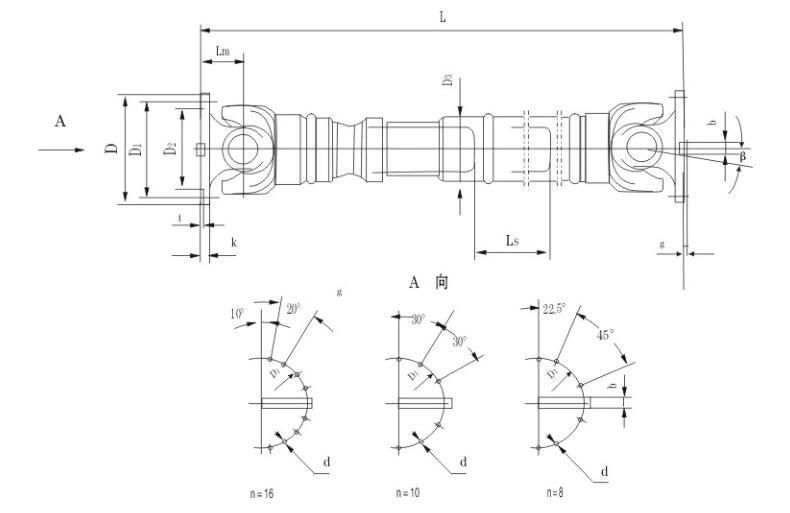

♦SWC CH Cardan Shaft Basic Parameter And Main Dimension(JB/T5513-1991)
ModelTactical diameter
D
mmNominal torque
Tn
kN·mFatique
torque
Tf
kN·mAxis rotation
β
(°)Stretch
length
LS
mmLminSize
mmRotary inertia
kg.m2Weight
kgD1
js11D2
H7D3Lmn-dkt
b
h9g
Lmin
 Increase
100mmLminIncrease
100mmSWC180CH11802010≤252009251551051141108-171752470.1810.0070742.8SWC180CH270014250.216104SWC200CH12003216≤15807201701201271358-1719528160.2760.0130763.6SWC200CH2506900.26174SWC225CH12254020≤15857101961351521208-17205329.00.4150.0234954.9SWC225CH2706400.39792SWC250CH12506331.5≤151007952181501681408-192564012.50.9000.02771485.3SWC250CH2707350.885136SWC285CH12859045≤151209502451701941608-212774015.01.8260.05102296.3SWC285CH2808801.801221SWC315CH131512563≤15130107028018521918010-233284015.03.3310.07953468.0SWC315CH2909803.163334SWC350CH135018090≤15140117031021026719410-233585016.06.2150.221950815.0SWC350CH29010705.824485SWC390CH1390250125≤15150130034523526721510-254087018.011.1250.221965515.0SWC390CH290120010.763600SWC440CH1440355180≤15400211039025532526016-284210802022.5400.4744131221.7SWC440CH2800251024.4301537SWC490CH1490500250≤15400222043527532527016-3147129022.533.9700.4744155421.7SWC490CH2800262035.8701779SWC550CH1550710355≤15500258549232042630516-31501210022.572.7901.3570258534.0SWC550CH21000308579.5703045·Notice:1.Tf-Torque allowed by fatigue strength under varible load
2.Lmin-Minimum length after shortening
