Fd200-19504 Contitech Double Bellows Style Air Suspension Spring W01-358-6926

Guangzhou Guomat Auto Parts Co., Ltd.
  • Warranty：12 Months
  • Part：Air Spring
  • Type：Gas-Filled
  • Spring Type：Air Spring
  • Spring Material：Rubber
  • Structure：Double Convoluted

Base Info

  • Model NO.：W01-358-6926
  • Brand：Guomat or Neutral
  • Damping Force Direction：Bidirectional
  • Condition：Brand-New
  • Sample：Available
  • Function：Reduce Shock
  • Quality：100% Tested
  • Transport Package：Cartons
  • Trademark：GUOMAT
  • Origin：Guangzhou
  • HS Code：8708809000
  • Production Capacity：5000PCS,Month

Description











Technical data

Top Cover Plate Diameter:160mmBottom Cover Plate Diameter:160mmGas Hole / Air inlet:1/4NPTFRubber Bellows Diameter:224mm(MAX.251mm)The Working Stroke:MAX 274mm to MIN 95 mmTop Cover Plate Screw (Nut) Tooth:2X3/8-16UNCBottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNCScrew and Air Hole Distance of Top Cover Plate:38mmScrew Center Distance of Top Cover Plate:89mmScrew Center Distance of Bottom Cover Plate:89mm





Notice

These air suspension bags are aftermarket ones.They will replace the original air spring bags.

-Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

-Instruction isn't included.Professional installation is recommended.

-Contact us please for whatever we can help


OEM Number

Fire-stone:W01-358-6926,W013586926

Contitech:FD 200-19 504,161299

Triangle : 6325/4504



Original Parts

RR Load : LS20


We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.


Specification

Long lasting service on almost all tryck and trailer air suspension.Absorb road shock to help tractors and rigs last longer.Cut down on vibration and driver fatigue.Long trouble free service,constant leve; hauling,quite cushioned ride.



Our advantages

1.A wide range of products2.Accept OEM order3.Affordable, safe and efficient logistics services4.Flexible payment5.Guaranteed warranty



Our services

1.Reply your inquiry in 24 working hours2.OEM3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs4.Timely delivery5.Good after-sale service6.Factory price

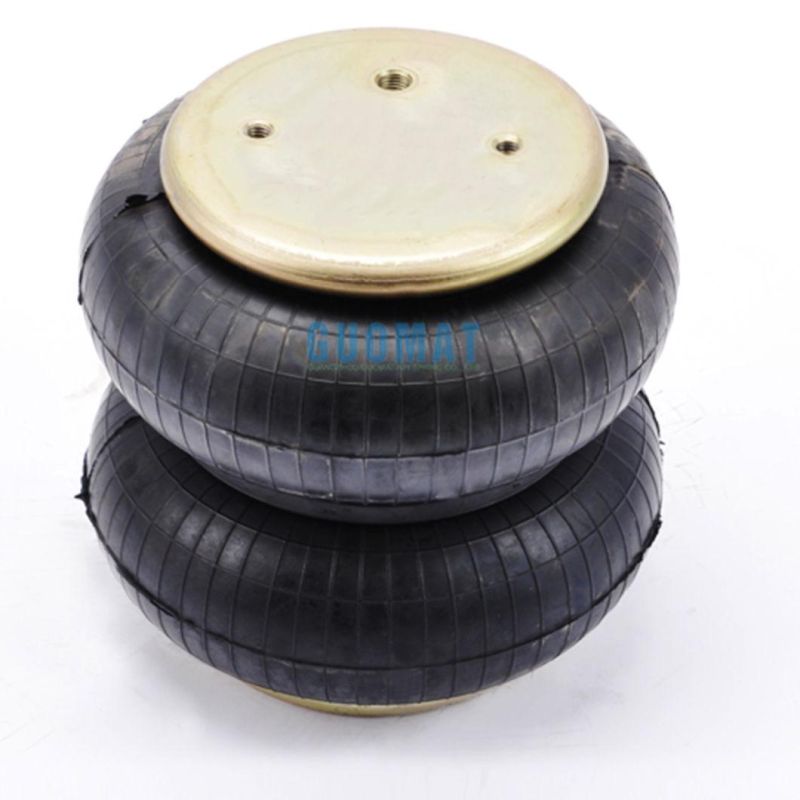

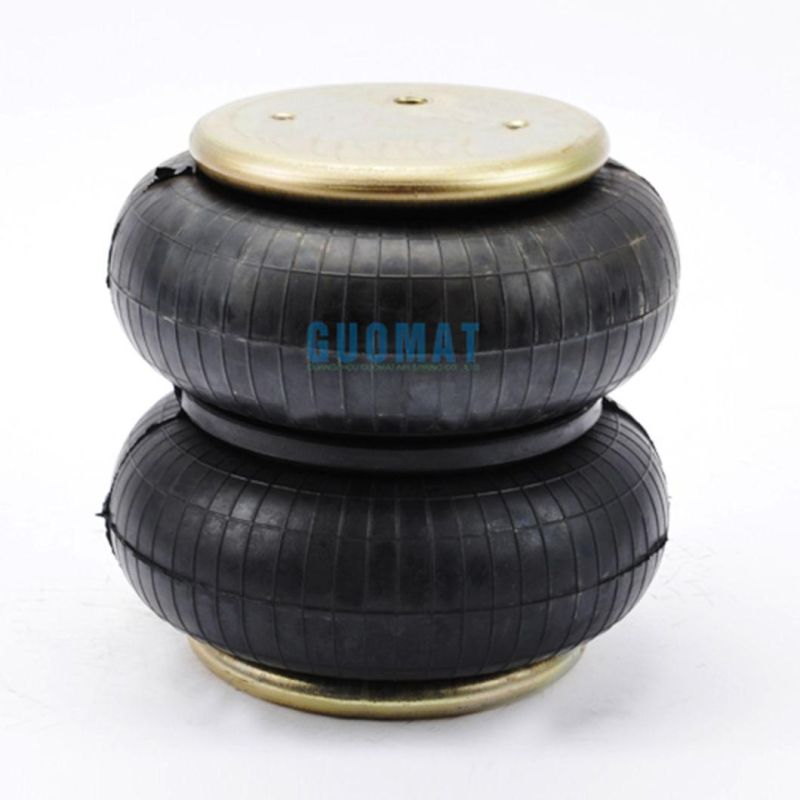

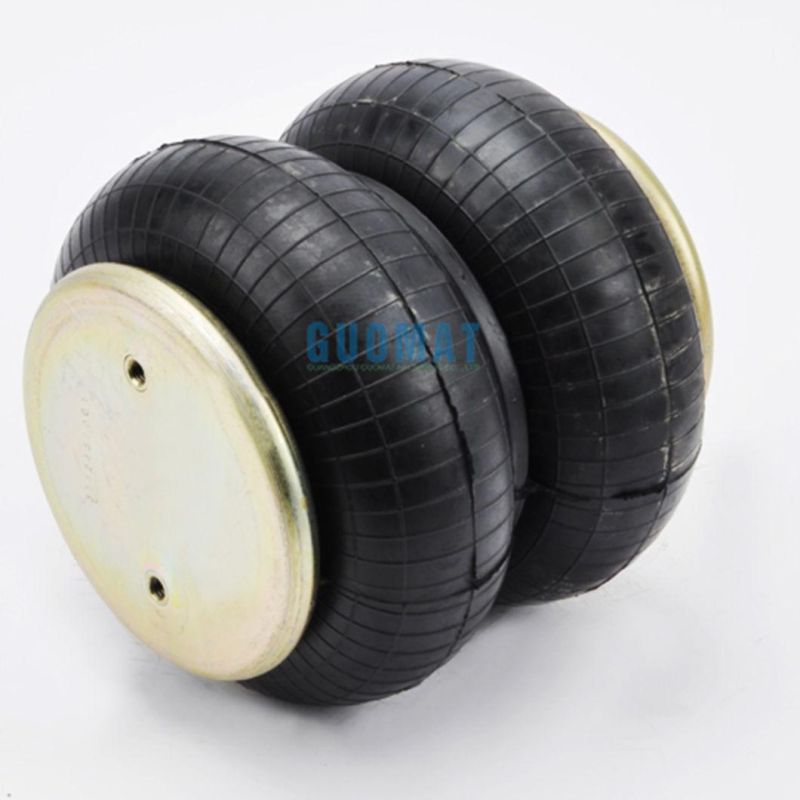

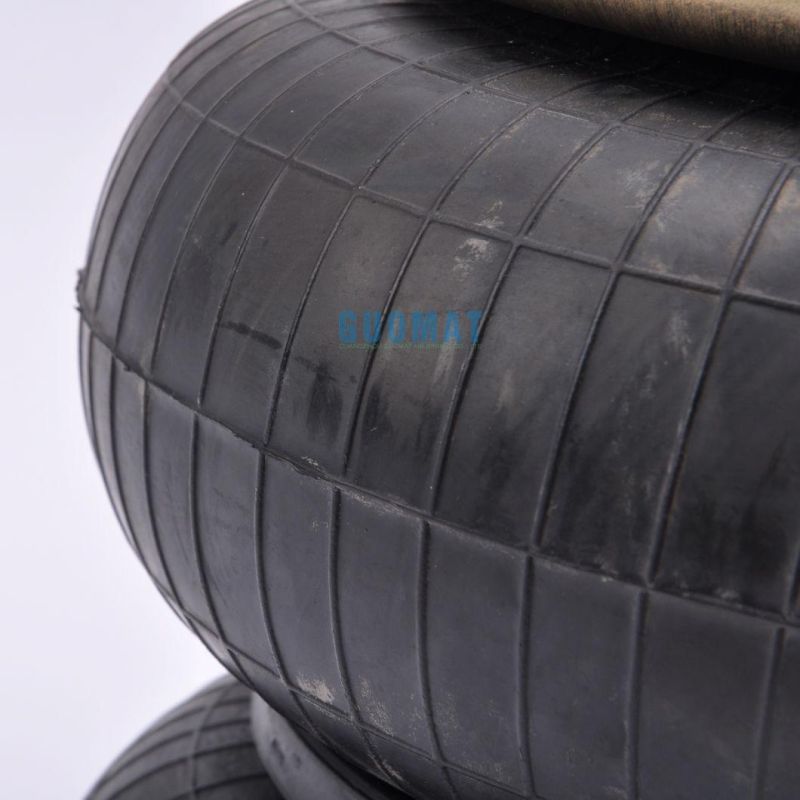

Product Image
Fd200-19504 Contitech Double Bellows Style Air Suspension Spring W01-358-6926Fd200-19504 Contitech Double Bellows Style Air Suspension Spring W01-358-6926Fd200-19504 Contitech Double Bellows Style Air Suspension Spring W01-358-6926Fd200-19504 Contitech Double Bellows Style Air Suspension Spring W01-358-6926Fd200-19504 Contitech Double Bellows Style Air Suspension Spring W01-358-6926Fd200-19504 Contitech Double Bellows Style Air Suspension Spring W01-358-6926
